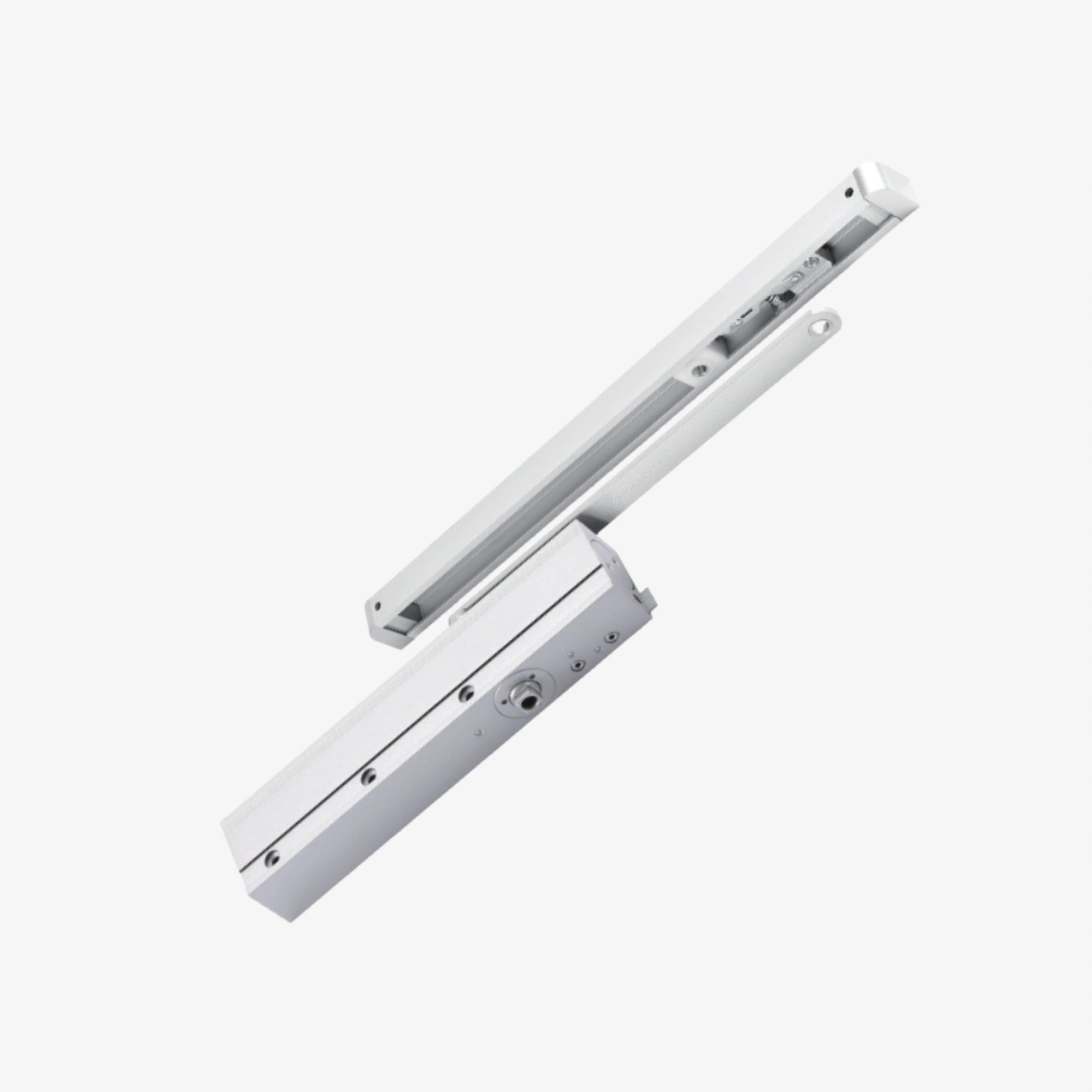

Surface Mount Cam Action Door Closer (CA24-E)

SKU: 391800100668

The Cassario DC24 is a European-engineered surface-mounted overhead door closer, designed for controlled and reliable door operation across residential and commercial applications. Manufactured in Italy, it delivers consistent performance with a focus on architectural integration and long-term durability.

AED 336
AED 336
Сумма налога включена.
Color: Silver
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Door Closer
Product Type:
Door Closers
Model:
CA24-E
Origin:
Italy
Colour:

Unlike conventional rack and pinion systems, the Cassario CA24-E features a cam action mechanism that significantly reduces opening resistance, making it ideal for environments requiring ease of access such as healthcare, hospitality, and public buildings.

With adjustable power from EN 2 to EN 4, the closer supports doors up to 85 kg while maintaining controlled closing through independent speed and latching adjustments. Tested to EN 1154 standards and designed for slide rail installation, it ensures consistent performance with a refined operational feel across a wide range of architectural applications.



Core Features

  • Surface-mounted cam action door closer for reduced opening force and smoother operation
  • Adjustable power size EN 2–4 for doors up to 1100mm width
  • Suitable for door weights up to 85 kg
  • Cam action mechanism for improved accessibility and user comfort
  • Two independent valves for adjustable closing speed and latching control
  • Tested to EN 1154 for performance compliance
  • Slide rail installation for cleaner and controlled movement
  • Non-handed (universal) design for left and right door applications
  • Opening angle up to 120° for controlled operation
  • Suitable for fire-rated door applications
Specifications
Surface Mount Cam Action Door Closer (CA24-E)
Size:
EN 2 to 4
Technical
Fire Rating:
90 minutes
Weight Capacity:
85 kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
-
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Closer Machine (1 Nos) Arm Track (1 Nos) Screw (1 Set)
Door Width Compatibility:
45mm-60mm
Downloads

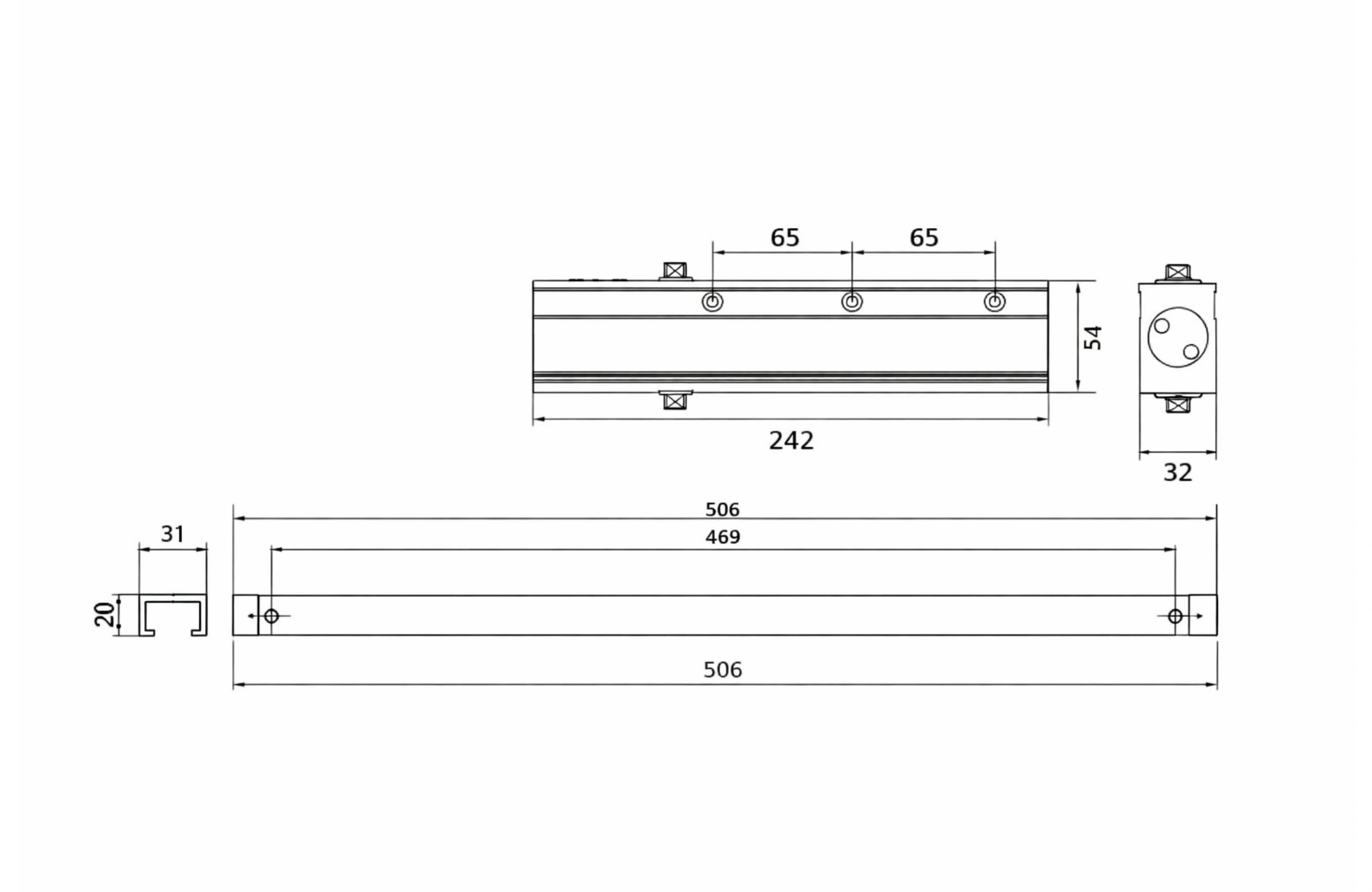

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
