Authenticity Guaranteed
This is an original, authenticated product.
Brand:
CASSARIO
Collection:
Door Closer
Product Type:
Door Closers
Model:
Origin:
Colour:
The Cassario DC24 delivers consistent and controlled closing performance with adjustable power settings from EN 2 to EN 4, allowing accurate calibration based on door size and weight. Built on a durable rack and pinion mechanism, it ensures long-term reliability in high-traffic environments.
Tested to BS EN 1154 standards and suitable for fire-rated doors up to 90 minutes, the DC24 supports doors up to 80 kg with adjustable closing and latching speeds. Its compact form and universal configuration make it suitable for both left and right-handed door applications across a wide range of architectural projects.
Core Features

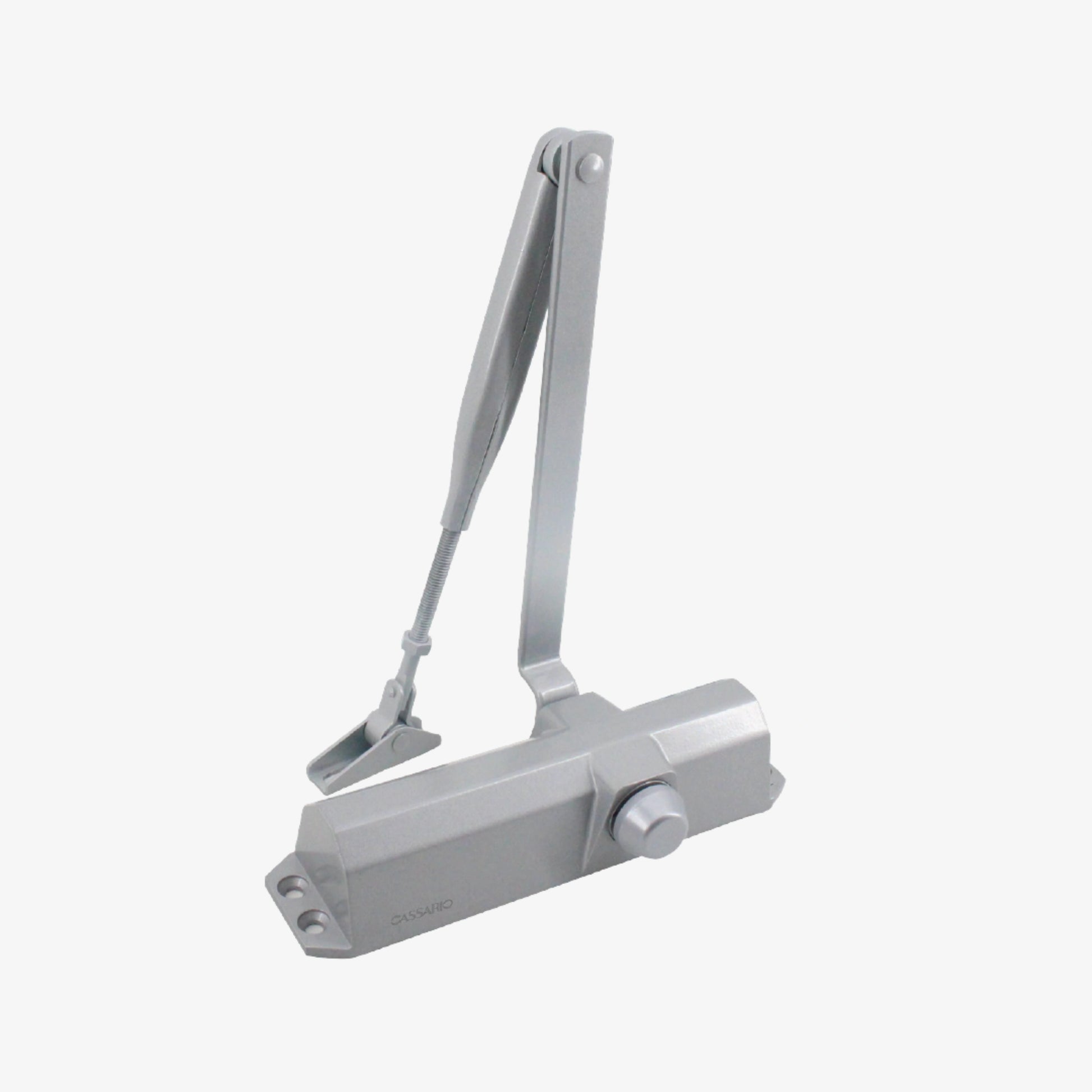

- Surface-mounted overhead door closer with compact architectural design
- Adjustable power size EN 2–4 for door widths 850mm–1100mm
- Suitable for door weights up to 80 kg
- Rack and pinion mechanism for smooth and controlled operation
- Adjustable closing speed and latching action for precise performance control
- Tested to BS EN 1154 for performance compliance
- Suitable for fire-rated timber and metal doors up to 90 minutes
- Universal application for left-hand and right-hand doors
- Maximum opening angle up to 180° for flexible installation
- Screw-mounted installation with included closer body, arm track, and fixing set; optional hold-open arm and parallel arm bracket available
