Concealed Overhead Door Closer (CC03)

SKU: 391800100655

Cassario CC03 is a fully concealed overhead door closer engineered for clean architectural integration and controlled door performance. Designed for EN 3 applications, it delivers reliable closing with minimal visual presence.

AED 184
AED 184
Сумма налога включена.
Color: Silver
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Door Closer
Product Type:
Door Closers
Model:
CC03
Origin:
Italy
Colour:

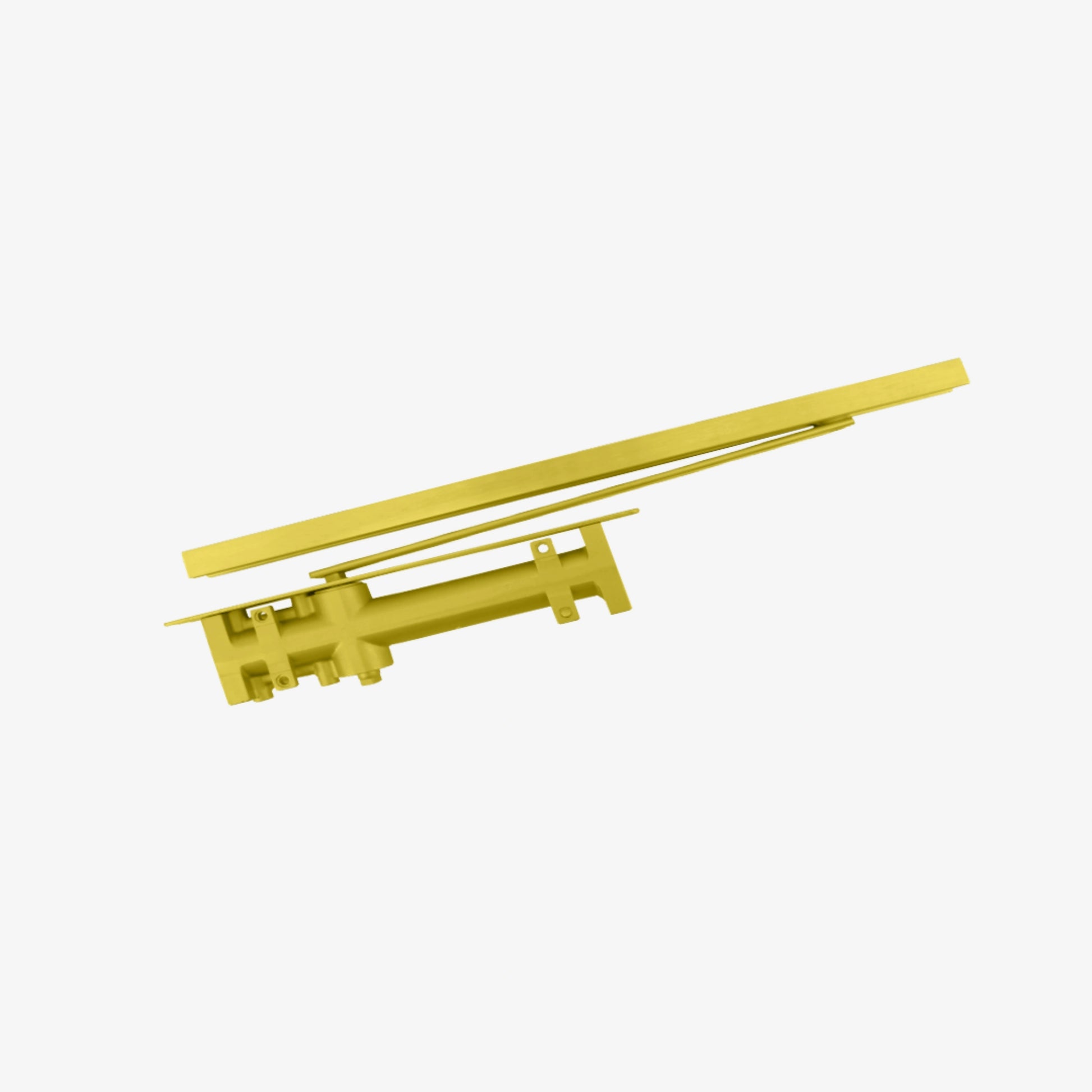

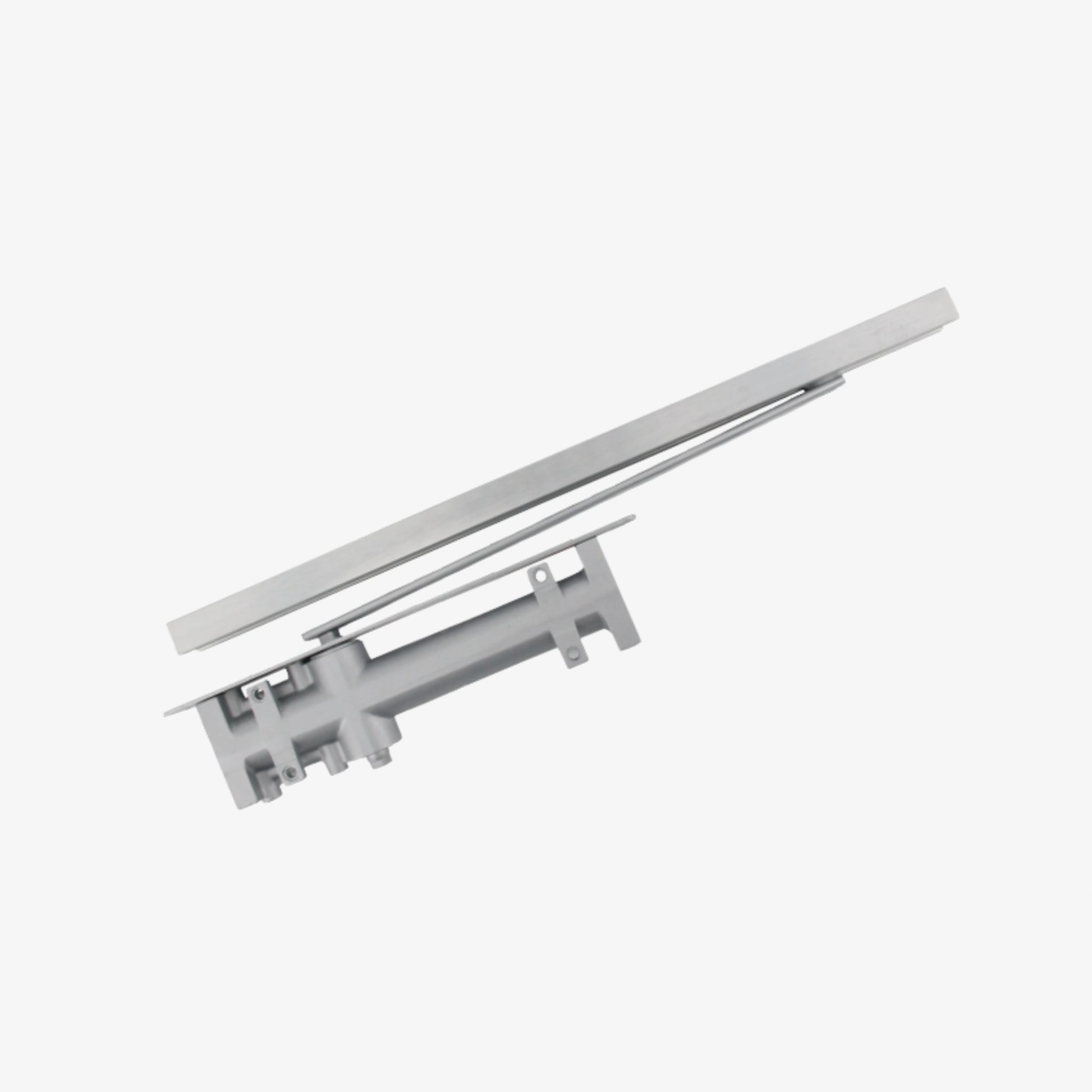

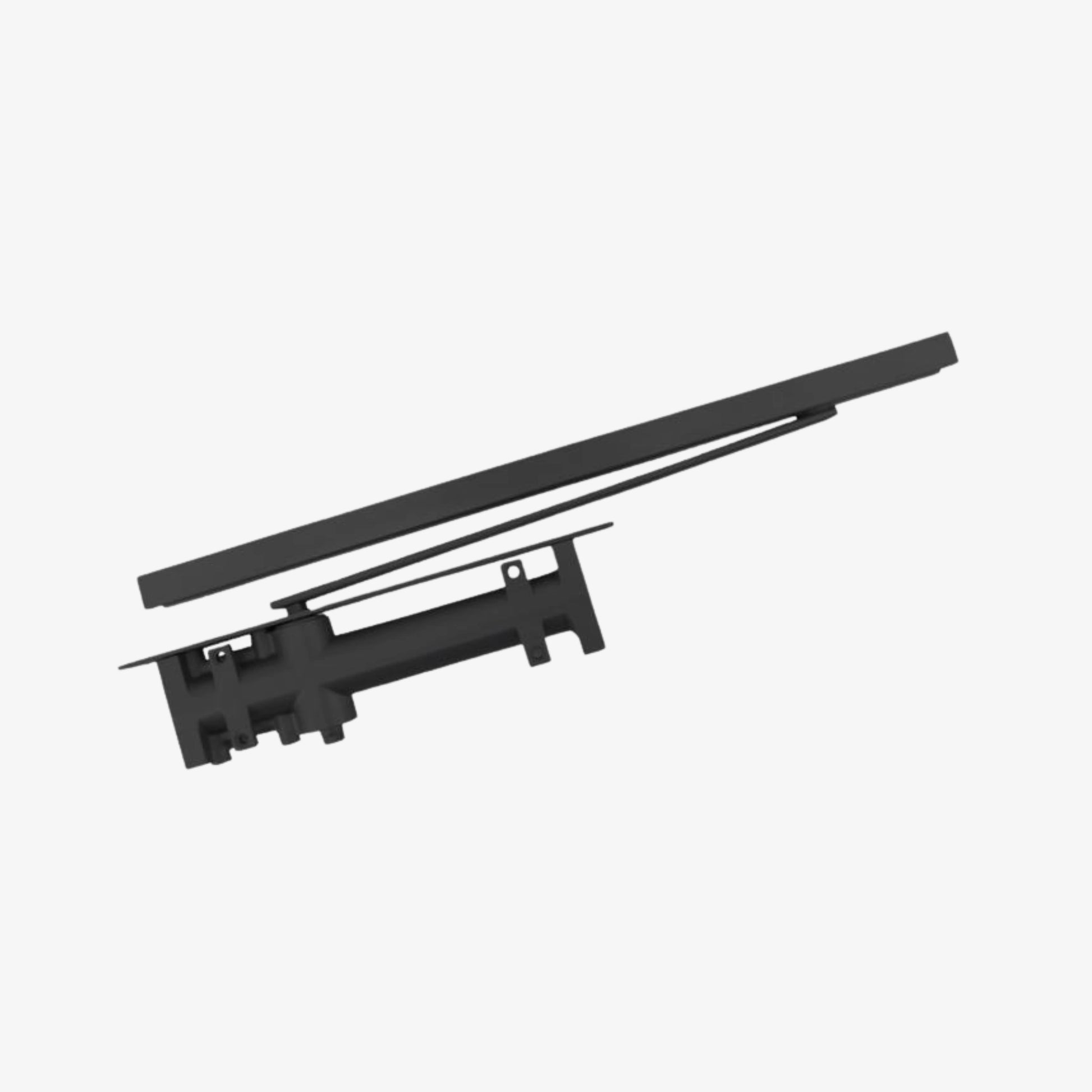

The Cassario CC03 concealed overhead door closer is designed for projects where visual restraint and performance must coexist. Fully integrated within the door leaf, the system remains hidden in operation, revealing only the guide rail when the door is open.

Built on a rack and pinion mechanism, the CC03 ensures consistent closing control with adjustable speed functions. It is suited for light to medium duty doors in residential, hospitality, and commercial environments where discreet detailing is essential.



Core Features

  • Fixed power size EN 3 for controlled door closing performance
  • Fully concealed installation within door leaf
  • Guide rail visible only when the door is open
  • Suitable for door thickness 40 mm and above
  • Rack and pinion mechanism for reliability and long-term performance
  • Adjustable closing speed for controlled movement
  • Adjustable latching speed for precise final closing
  • Non-handed design suitable for left and right hand doors
  • Hold-open function available as optional configuration
Specifications
Concealed Overhead Door Closer (CC03)
Size:
EN 3
Technical
Fire Rating:
90 minutes
Weight Capacity:
65 kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
BS EN 1154
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Closer Machine (1 Nos) Arm Track (1 Nos) Screw (1 Set)
Door Width Compatibility:
45mm-60mm
Downloads

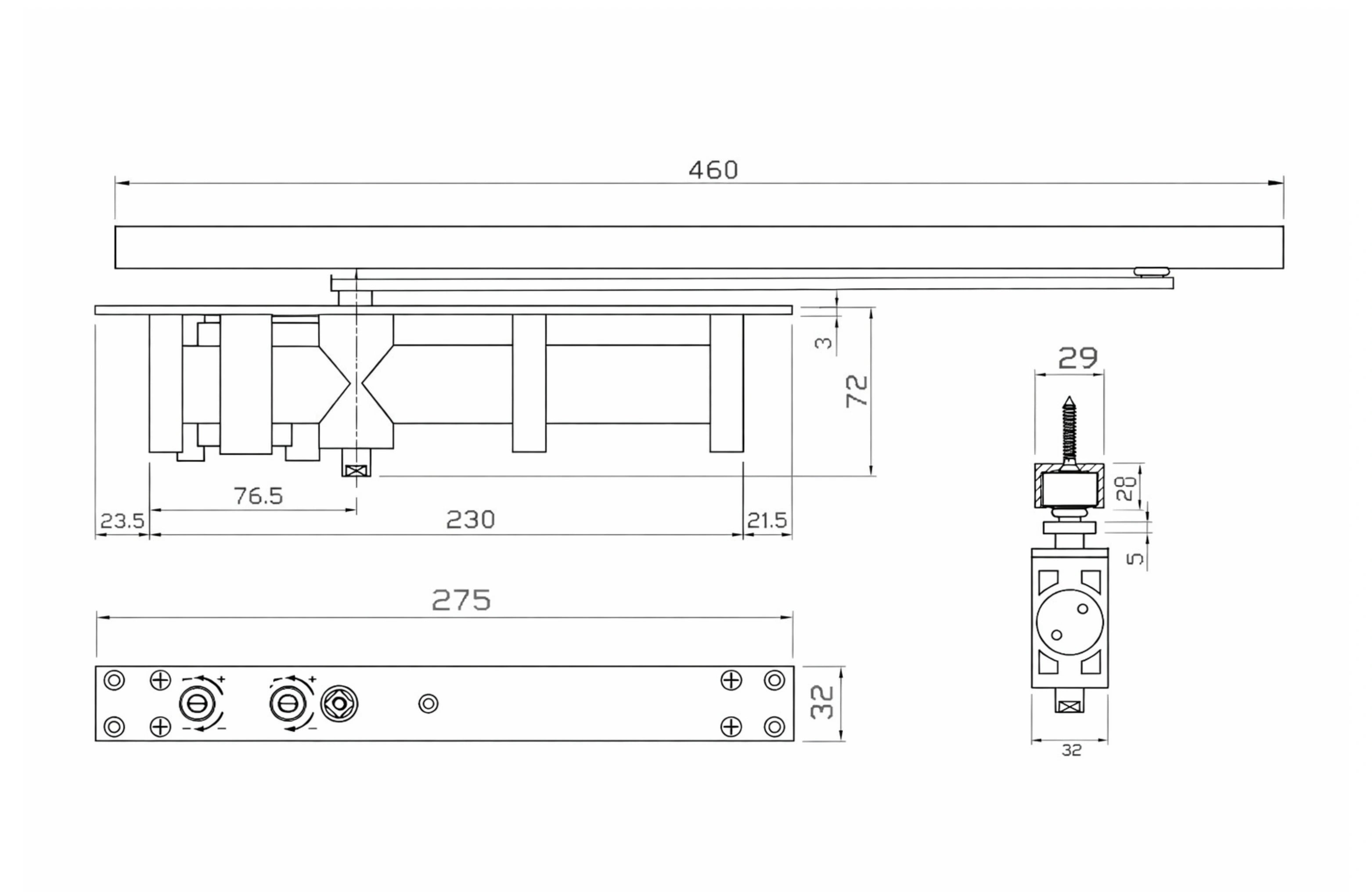

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
