Authenticity Guaranteed
This is an original, authenticated product.
Brand:
CASSARIO
Collection:
Concealed Door Closer
Product Type:
Door Closers
Model:
Origin:
Colour:

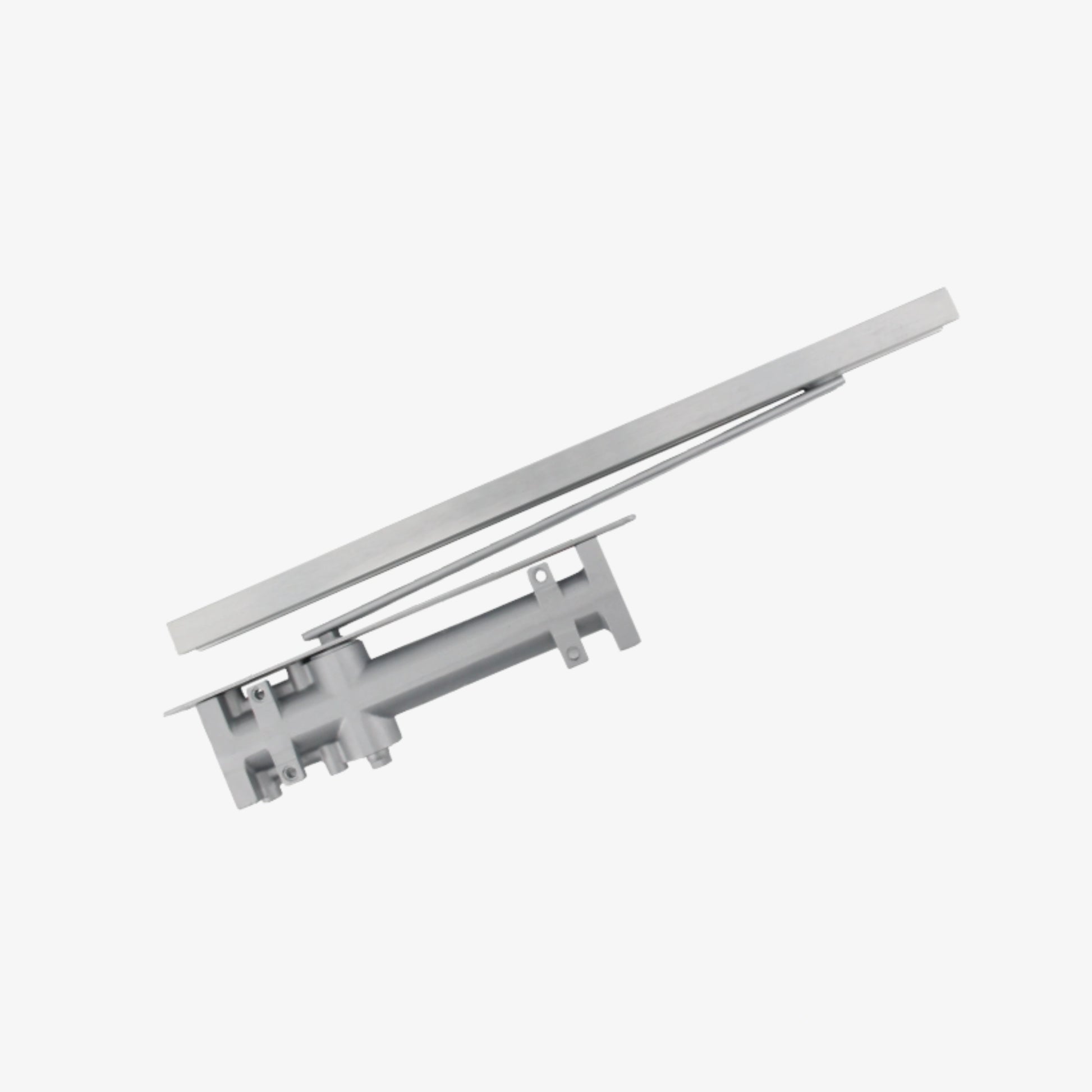

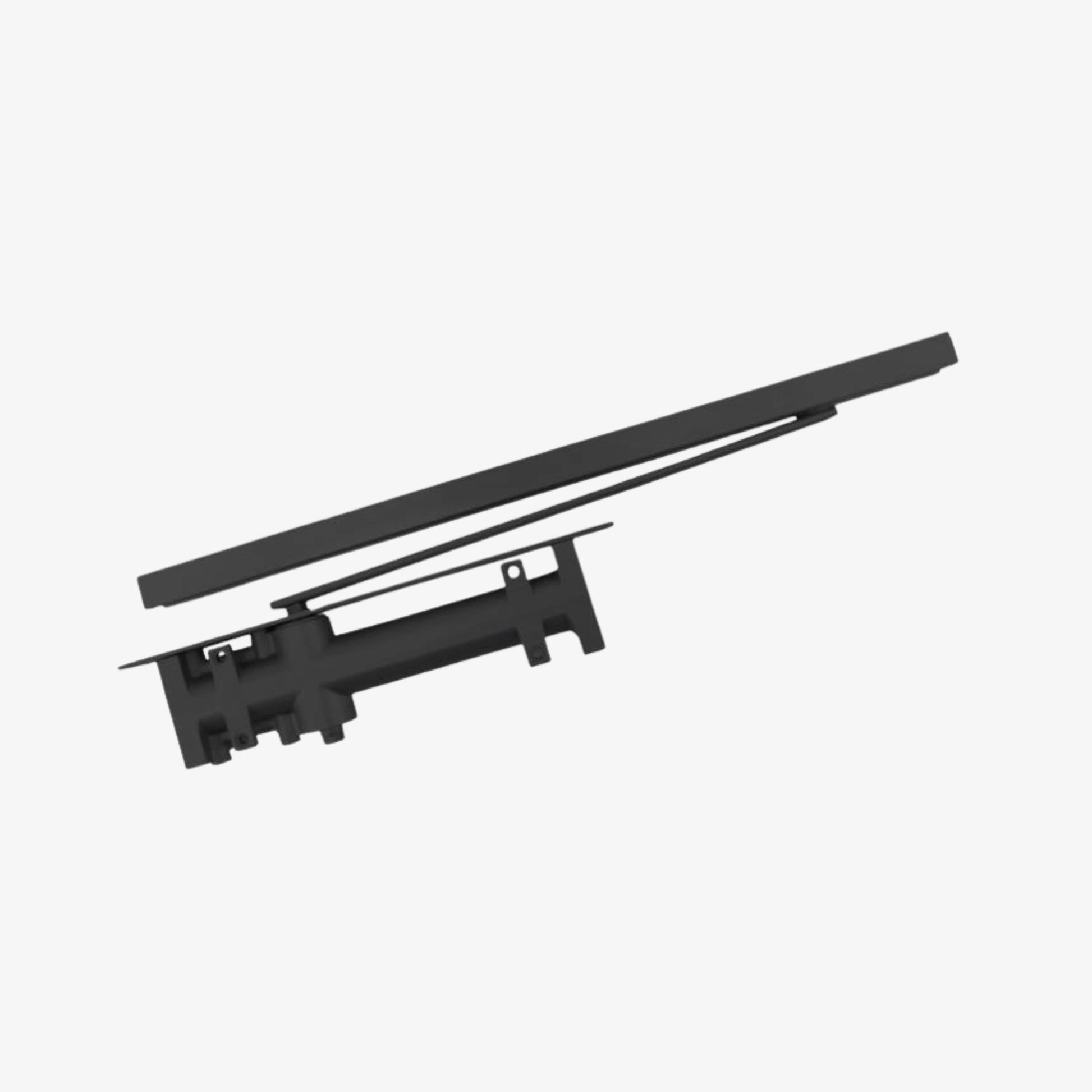

The CC04 delivers a fully concealed door control solution where visual discretion is required without the complexity of variable power systems. Built on a rack and pinion mechanism, it ensures reliable and consistent closing force suited to standard internal and light commercial doors.
With fixed EN 4 power, the closer supports doors up to 80 kg and widths up to 1200 mm. The system is fully integrated within the door leaf, leaving only the guide rail visible when the door is open, maintaining a minimal architectural expression.
Adjustable closing and latching speeds allow controlled door movement, while the optional hold-open function provides flexibility in operational use. The non-handed design ensures universal application across left- and right-hand doors.
Core Features
- Fixed EN 4 power size for consistent door control performance
- Fully concealed installation within door leaf for minimal visual impact
- Guide rail visible only when the door is open
- Suitable for door thickness of 40 mm and above
- Rack and pinion mechanism for reliable and stable operation
- Adjustable closing speed for controlled door movement
- Adjustable latching speed for precise final closing action
- Non-handed design for universal left and right door application
- Opening angle up to 120°
- Hold-open function available as an optional configuration
