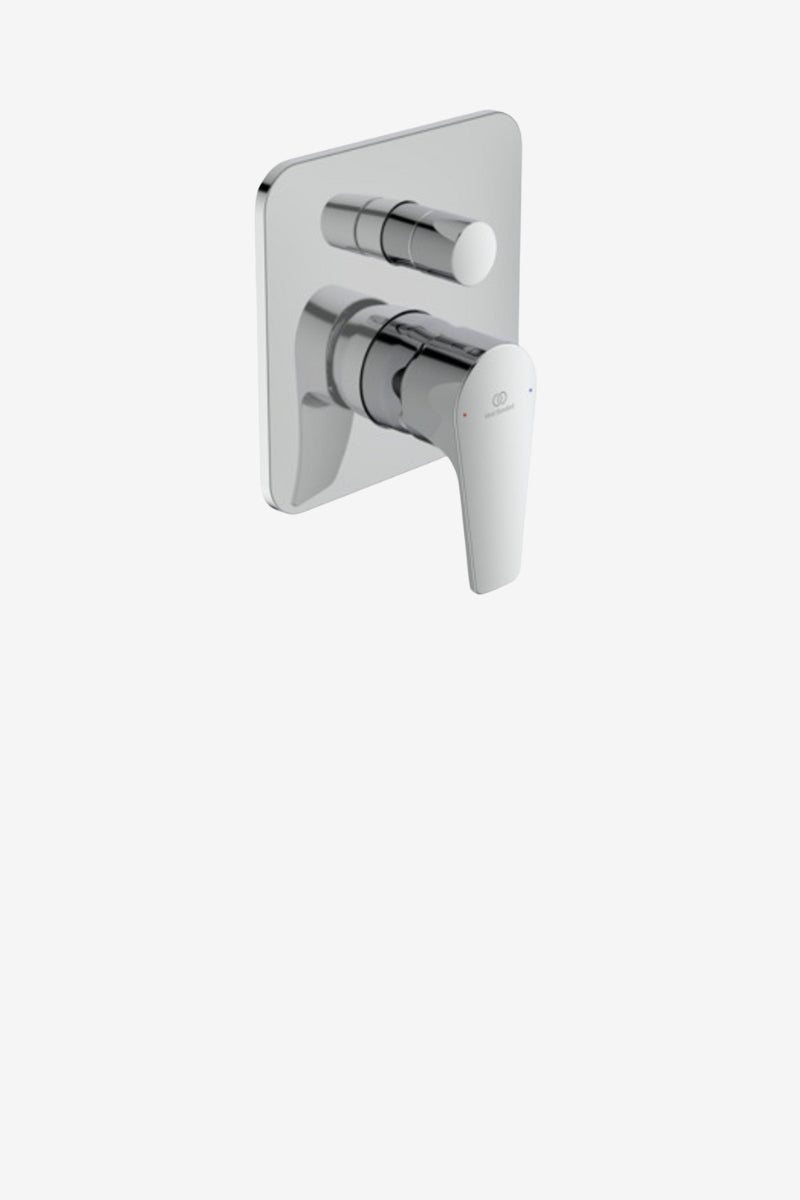

Ideal Standard Cerafine D Chrome Brass Square Concealed Built-In Bath & Shower Mixer Kit 1+2 88 x 163 x 200.5 mm

SKU: 390100107103

Concealed built-in bath and shower mixer with automatic diverter, single-lever control, 47 mm click cartridge, and contemporary square escutcheon design.

AED 687
AED 687
Сумма налога включена.
Colour: Chrome
Material
Chat Now My Projects
Recommended Add-ons
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
Ideal Standard
Series:
Cerafine
Flow Rate:
27/20.5 L/Min
Colour:
Material:

The Cerafine D Built-In Bath & Shower Mixer (Kit 1 + 2) combines elegant design with reliable everyday performance for modern bathrooms. Designed for concealed installation, this mixer includes both the internal built-in body (Kit 1) and the visible trim and control parts (Kit 2) for a complete bath and shower control solution.

Featuring a 47 mm click cartridge and a single-lever handle with red/blue temperature indicator, this mixer provides smooth and intuitive control over water temperature and flow. The integrated automatic diverter means you can easily switch between bath and shower outlets without additional controls.

Crafted from chrome-plated brass with a plastic square escutcheon, the mixer complements contemporary bathroom aesthetics while delivering lasting durability. It complies with EN 817 standards for safety and performance, making it suitable for residential, hotel, office, and leisure environments.

Key Features

  • Built-in concealed body + trim (Kit 1 + Kit 2) for a clean installation look.

  • Automatic diverter to switch flow between bath and shower outlets. Single-lever control with smooth click cartridge action.47 mm click cartridge for precise and reliable operation.

  • Modern plastic square escutcheon with chrome plating.

  • Chrome-plated brass construction for durability and corrosion resistance.

  • Conforms to EN 817 performance standards.

Specifications
Ideal Standard Cerafine D Chrome Brass Square Concealed Built-In Bath & Shower Mixer Kit 1+2 88 x 163 x 200.5 mm

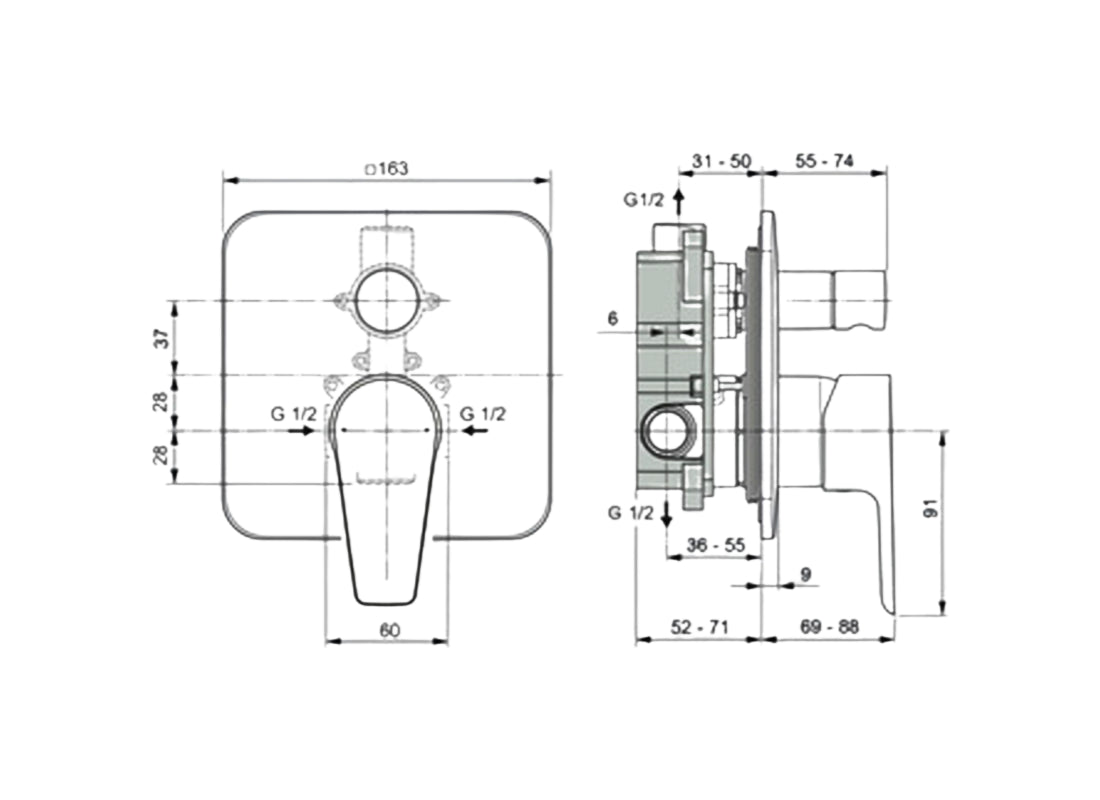

Dimensions
Length:
69 - 88mm
Width:
163mm
Height:
200.5mm
Capacity & Weight
Weight:
1.60kg
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
