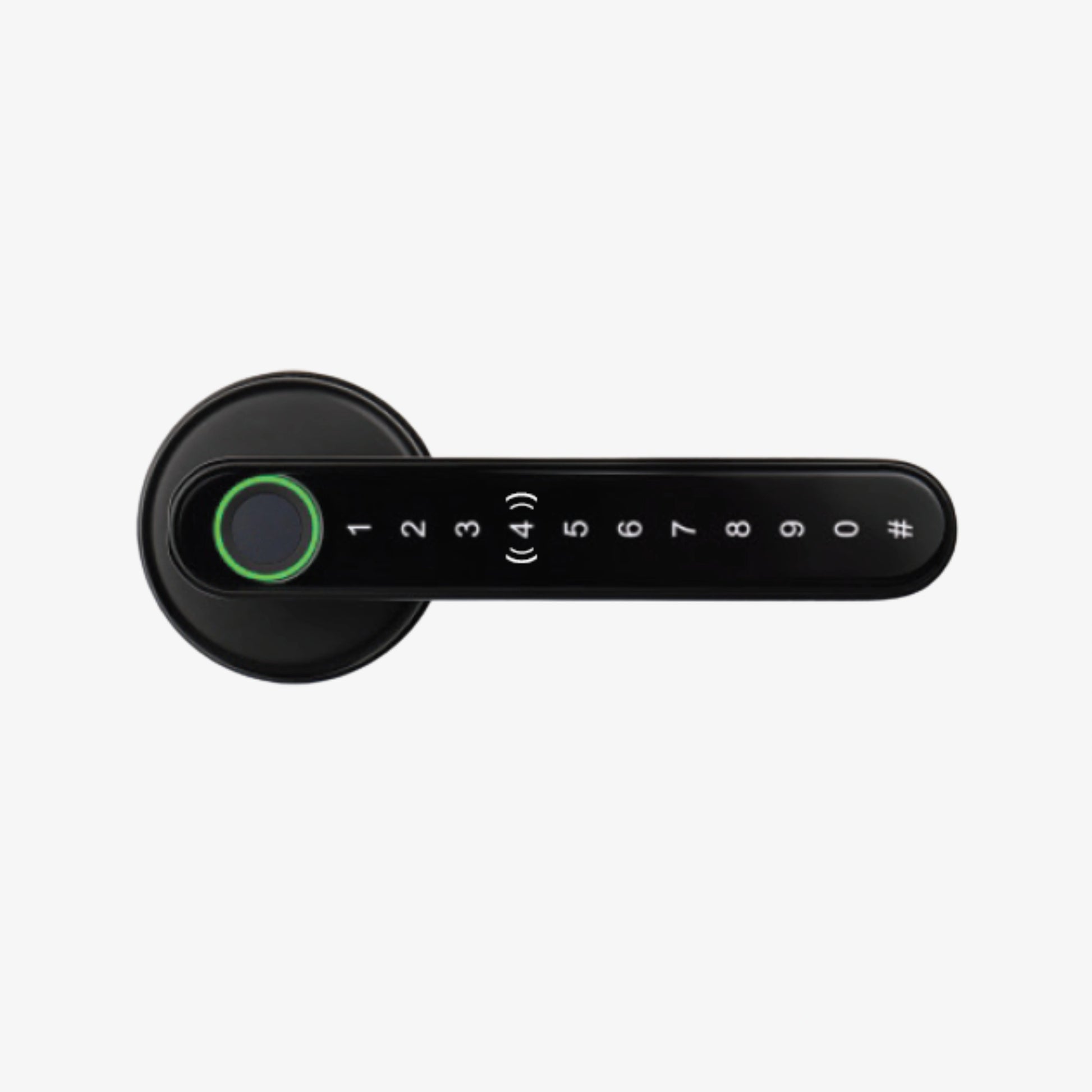

Cassario Urban Digital Smart Lock with Biometric Finger Scanner, Code Lock, Cards and Keys, Black

SKU: 391800100285


The CASSARIO URBAN Digital Lock provides compact smart access control through mobile application access, biometric fingerprint recognition, password entry, card access, and emergency key operation. Designed with a zinc alloy body, anti-theft mortise compatibility, and Type-C emergency backup power, it is suitable for residential, hospitality, education, and office door applications requiring practical digital access in a slim lever format.

AED 369
AED 369
Сумма налога включена.
Color: Black
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
URBAN
Material:
Solid Brass
Product Type:
Smart Locks
Origin:
China
Colour:

The CASSARIO URBAN Digital Lock is designed for controlled-access doors requiring a compact smart lever solution with multiple entry methods. The lock supports mobile application access, fingerprint recognition, password entry, card access, and emergency key operation, making it suitable for apartments, serviced residences, offices, schools, and similar controlled-entry environments.

Built with a zinc alloy body and a widely used anti-theft mortise configuration, URBAN is suitable for project door schedules where digital access control must be coordinated with practical installation requirements. The lock supports 40–55 mm door thickness and uses 4 pcs AAA alkaline batteries, with a Type-C emergency backup power interface.



Core Features

  • Digital smart lever lock with mobile application access
  • SKU: 391800100285
  • Access methods: app, fingerprint, password, cards, and emergency key
  • Black finish with integrated keypad handle design
  • Zinc alloy construction
  • Widely used anti-theft mortise configuration
  • Mortise compatibility: 55/72
  • Suitable for 40–55 mm door thickness
  • Powered by 4 pcs AAA alkaline batteries with Type-C backup power interface

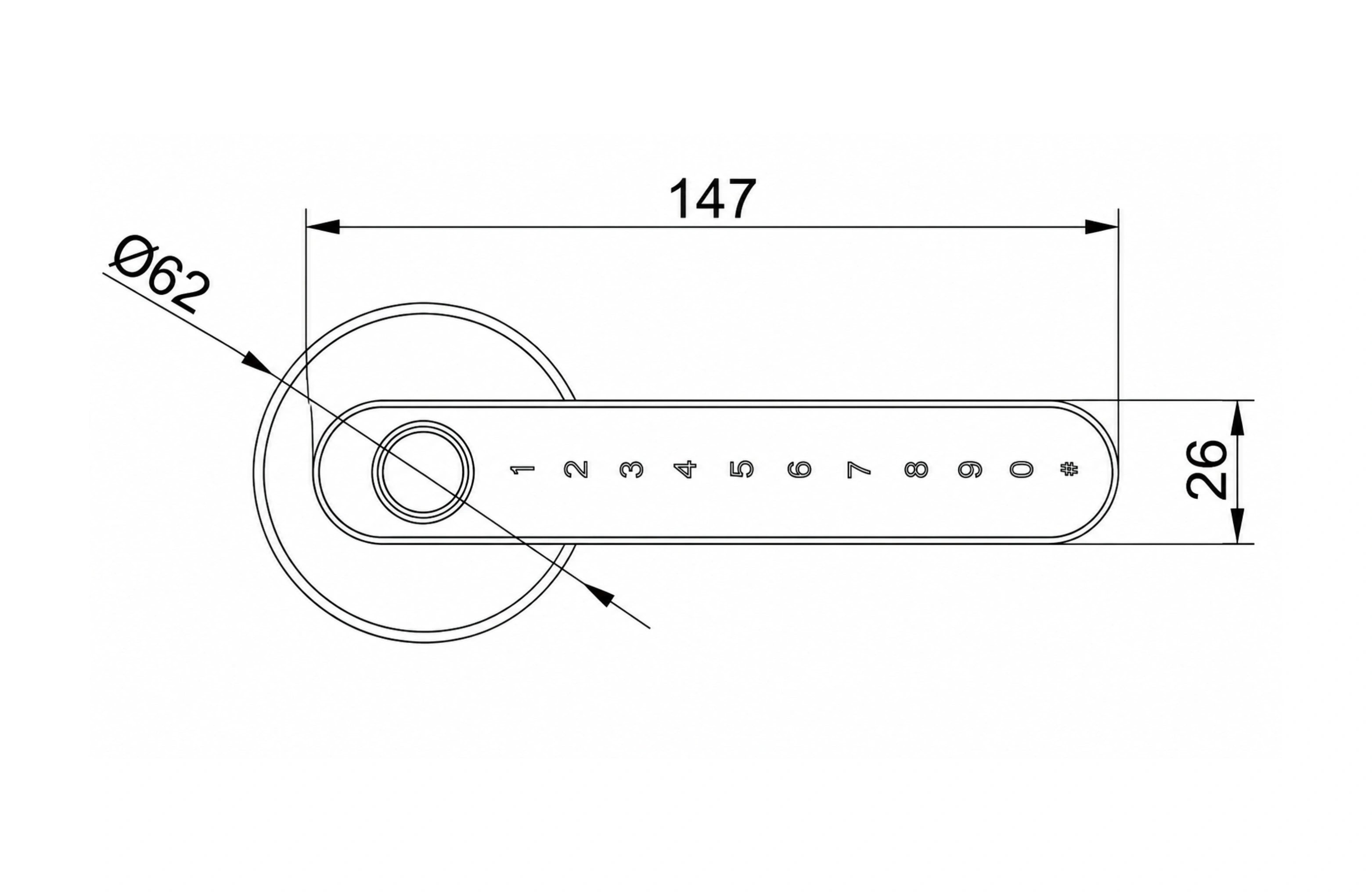

  • Dimensions shown on drawing: Ø62 mm rose, 147 mm handle length, 26 mm handle width
Specifications
Cassario Urban Digital Smart Lock with Biometric Finger Scanner, Code Lock, Cards and Keys, Black
Technical
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
No
Door Thickness Compatibility:
45mm-55mm
Package Contents:
"Smart Lock (1 Set) Rubber Gaskit (1 Set) Each set include 2 Piece of Lock Front & Back"
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
