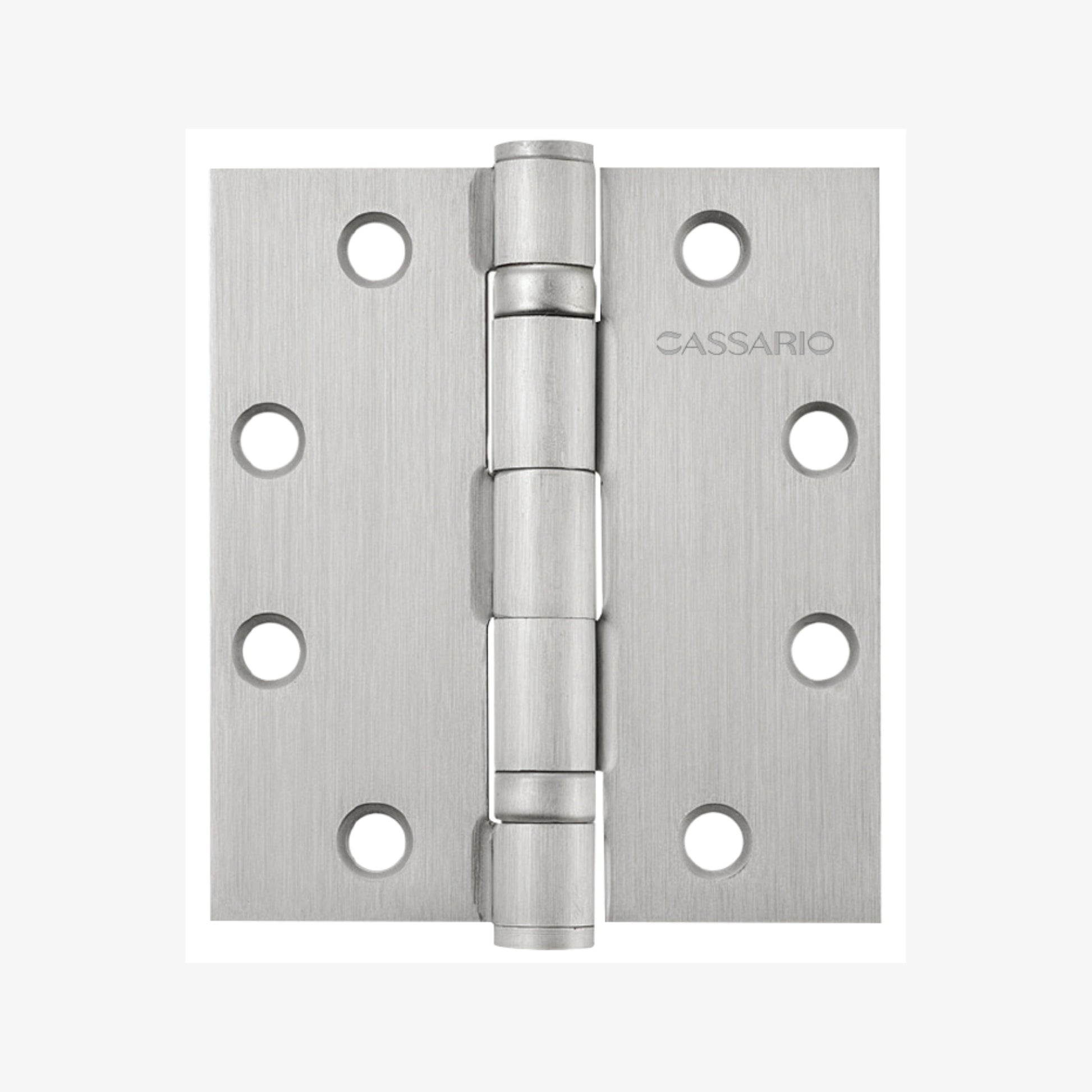

Cassario Ball Bearing Butt Hinge (BH45) 114x102x3.4mm

SKU: 391800100518

Where the standard BH43 and BH44 cover typical residential and light commercial doors, the BH45's larger gauge and section make it the specification choice for heavier timber or metal doors carrying greater load and traffic. Grade 13 testing and EN1634 fire certification keep it suitable for compliance-driven projects, backed by a 10-year mechanical warranty.

AED 58
AED 58
Сумма налога включена.
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Butt Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
114x102x3.4mm
Origin:
China
Colour:

At 114x102x3.4mm, this is the heavier-section variant in the Cassario hinge range, built for doors where extra mass and frequency of use demand a more substantial knuckle and pin assembly. The five-knuckle, twin ball bearing design carries through the smooth, quiet operation found across the BH series, with SS304 construction providing corrosion resistance for long-term performance.



Core Features

  • Heavier 114x102x3.4mm section for larger or heavier door leaves

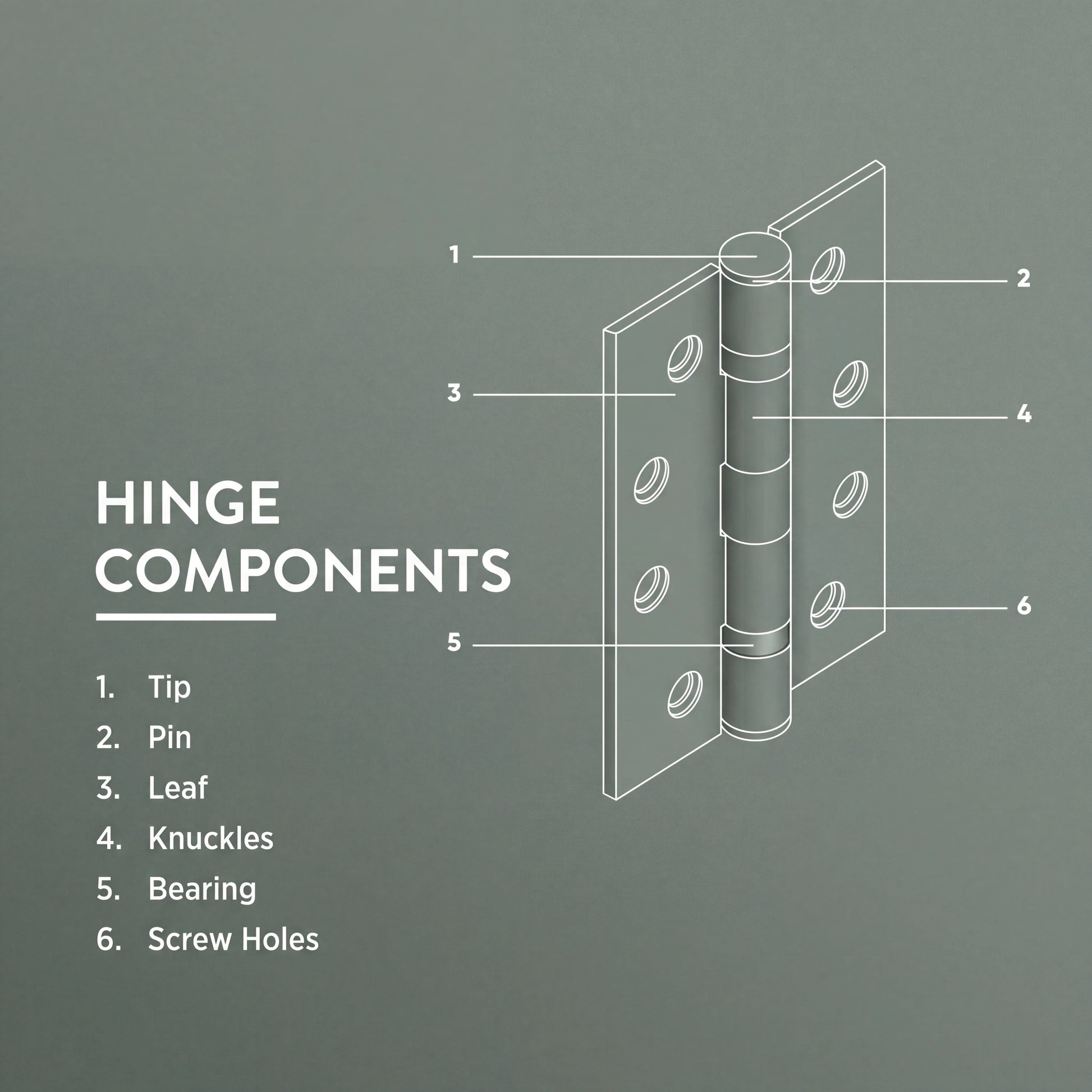

  • Twin ball bearing, five knuckle mechanism
  • SS304 stainless steel construction
  • Tested to BS EN 1935 Grade 13
  • Certified to EN1634 for fire-resistance performance
  • Rated for loads up to 120kg
  • Endurance-tested beyond 200,000 operating cycles
  • Square or radius corner options
  • Softened edge detailing
  • Pre-cut intumescent hinge pads available for fire-rated assemblies
  • Supplied with stainless steel screws; metal door screws available on request
Specifications
Cassario Ball Bearing Butt Hinge (BH45) 114x102x3.4mm
Technical
Fire Rating:
90 minutes
Weight Capacity:
120 Kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
200,000 tested
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
60mm-70mm
Package Contents:
Butt Hinges (1 pair) Screws (8 pcs)
Downloads

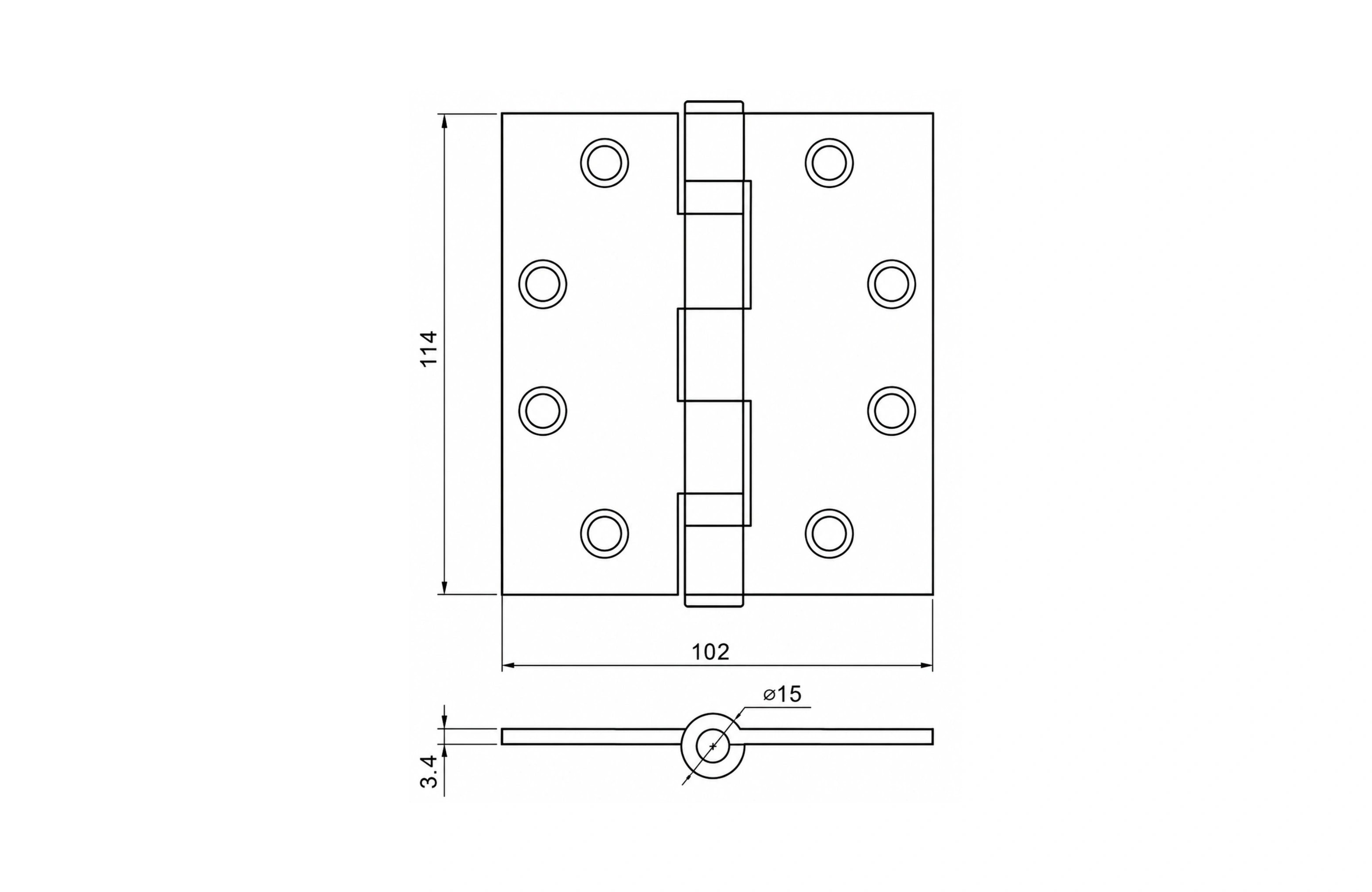

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
