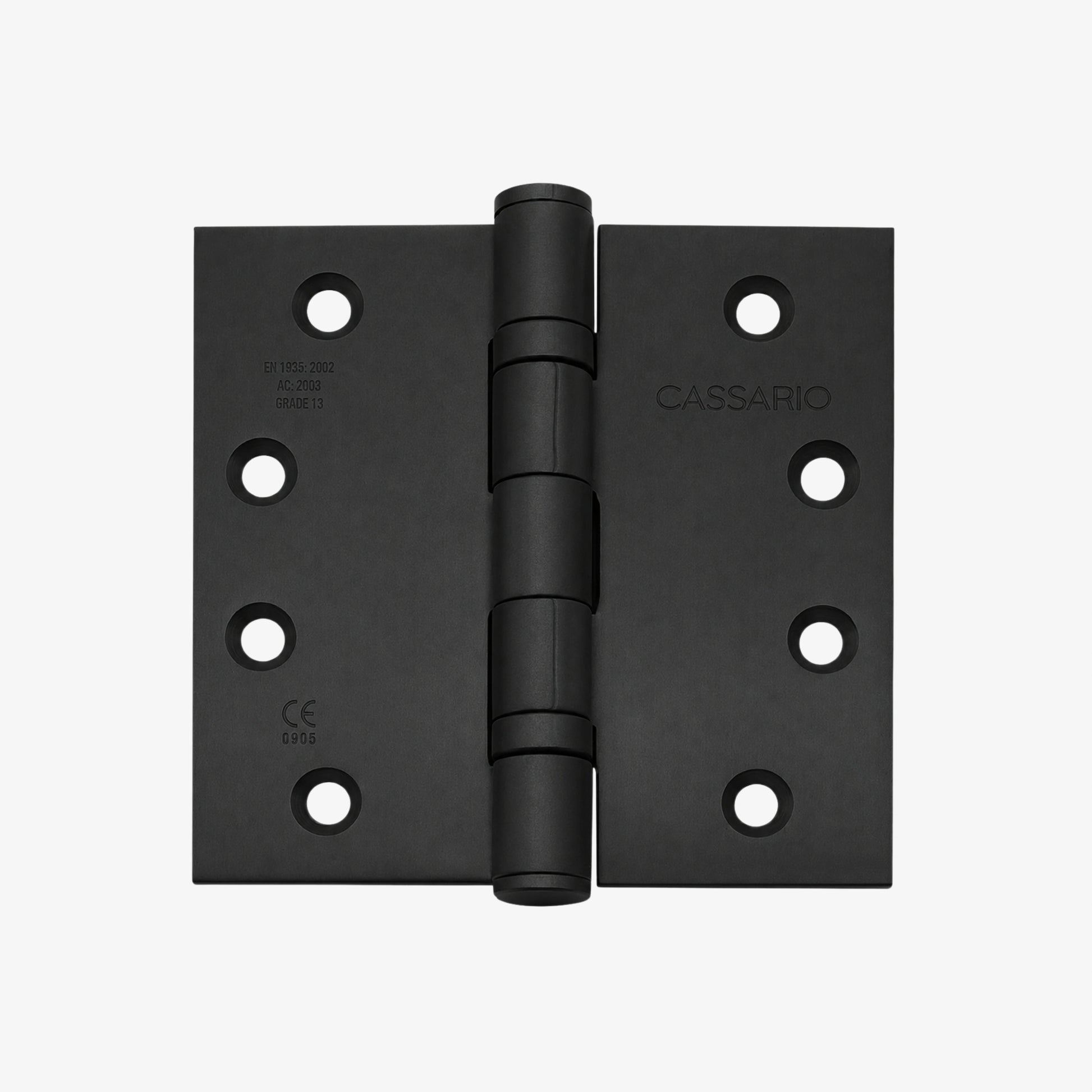

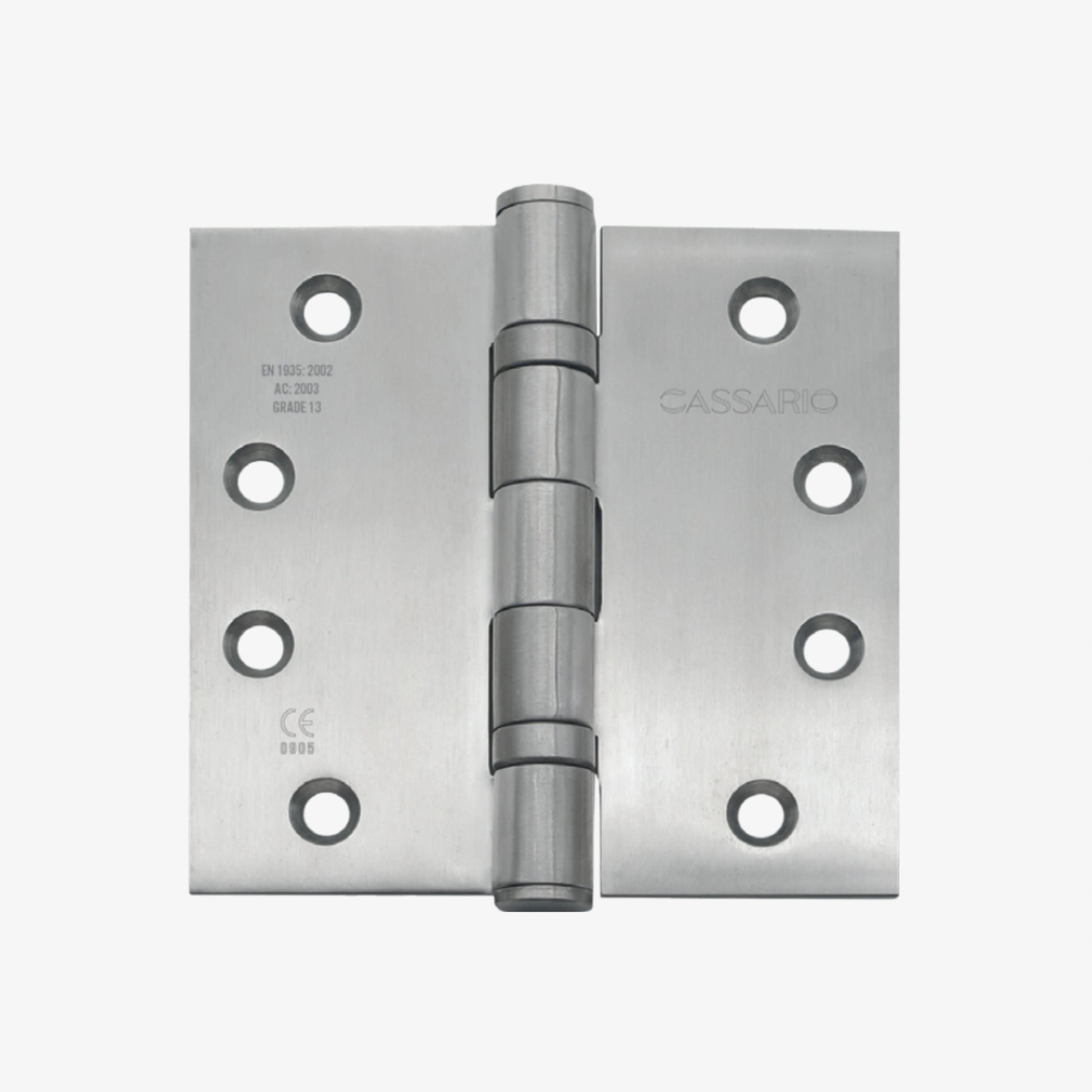

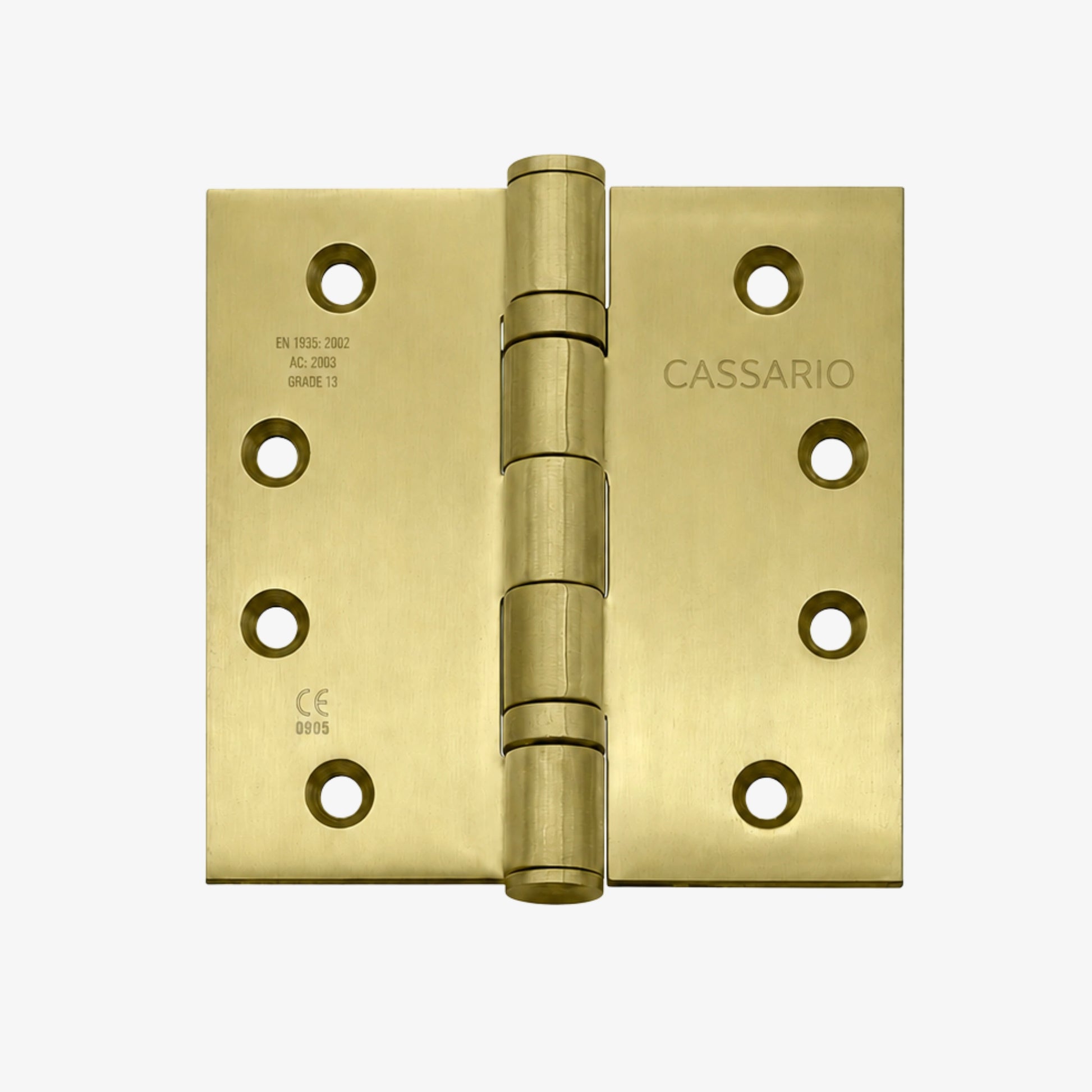

Cassario Ball Bearing Butt Hinge (BH44) 102x102x3mm

SKU: 391800100514

The Cassario Ball Bearing Butt Hinge is specified where mechanical durability matters as much as finish quality. Its Grade 13 rating, fire certification, and 10-year mechanical warranty support long-term performance on demanding door assemblies, while three finish options allow it to integrate with a project's wider ironmongery palette.

AED 50
AED 50
Сумма налога включена.
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Butt Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
102x102x3mm
Origin:
China
Colour:

Built around a twin ball bearing mechanism, the Cassario Ball Bearing Butt Hinge is engineered for doors that see frequent, sustained use. At 102x102x3mm, its larger five-knuckle format suits heavier leaves and higher-traffic openings, while SS304 construction provides the corrosion resistance and structural integrity required across residential, hospitality, and commercial environments.



Core Features

  • Twin ball bearing, five knuckle mechanism for smooth, quiet operation
  • SS304 stainless steel construction
  • 102x102x3mm format suited to heavier door leaves
  • Tested to BS EN 1935 Grade 13 for strength and endurance
  • Certified to EN1634 for fire-resistance performance
  • CE marked to European safety standards
  • Rated for loads up to 120kg
  • Endurance-tested beyond 200,000 operating cycles
  • Square or radius corner options
  • Softened edge detailing for a refined finish
  • Pre-cut intumescent hinge pads available for fire-rated assemblies
  • Supplied with stainless steel screws; metal door screws available on request
Specifications
Cassario Ball Bearing Butt Hinge (BH44) 102x102x3mm
Technical
Fire Rating:
90 minutes
Weight Capacity:
120 Kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
200,000 tested
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
40mm-55mm
Package Contents:
Butt Hinges (1 pair) Screws (8 pcs)
Downloads

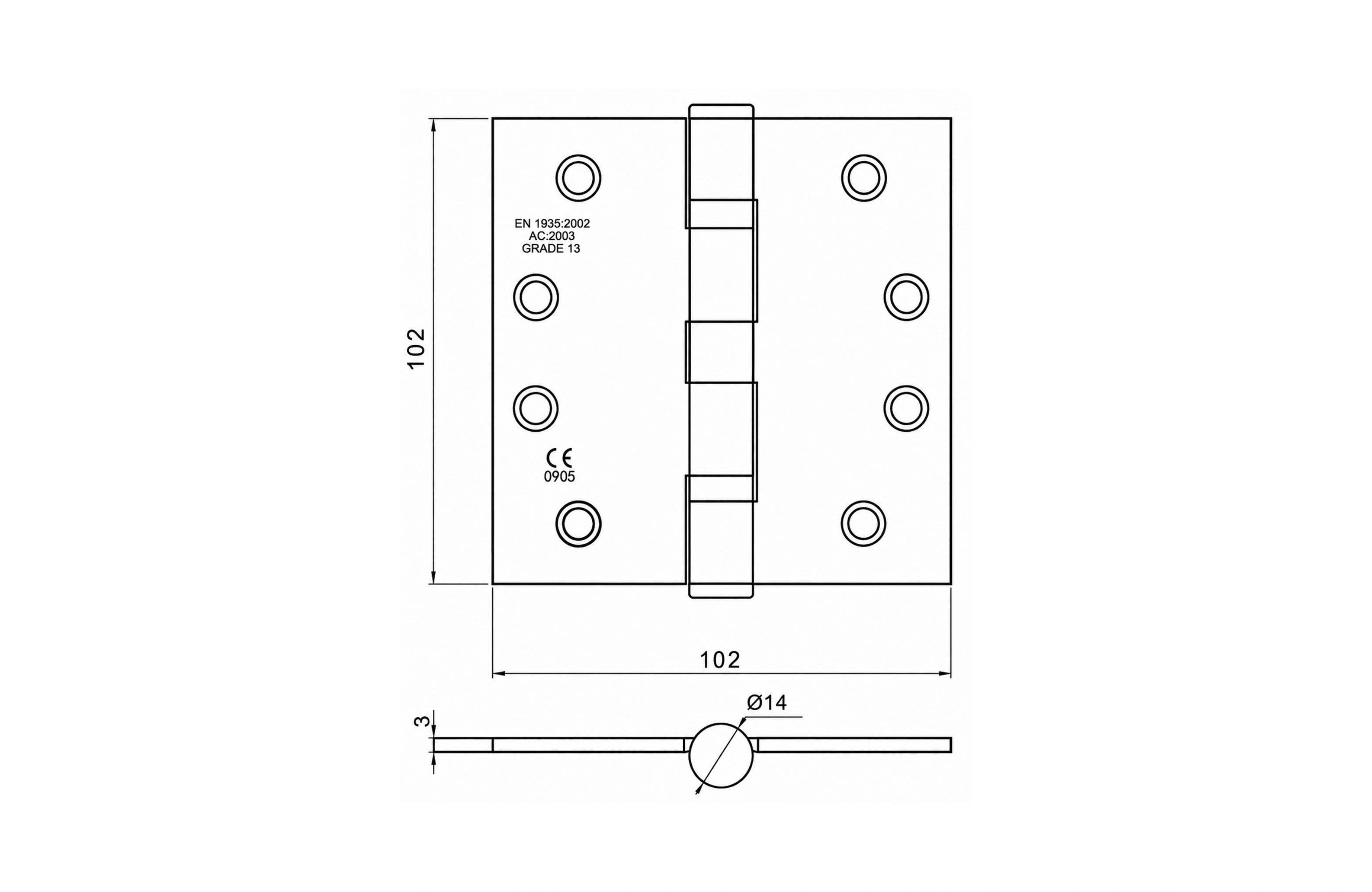

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
