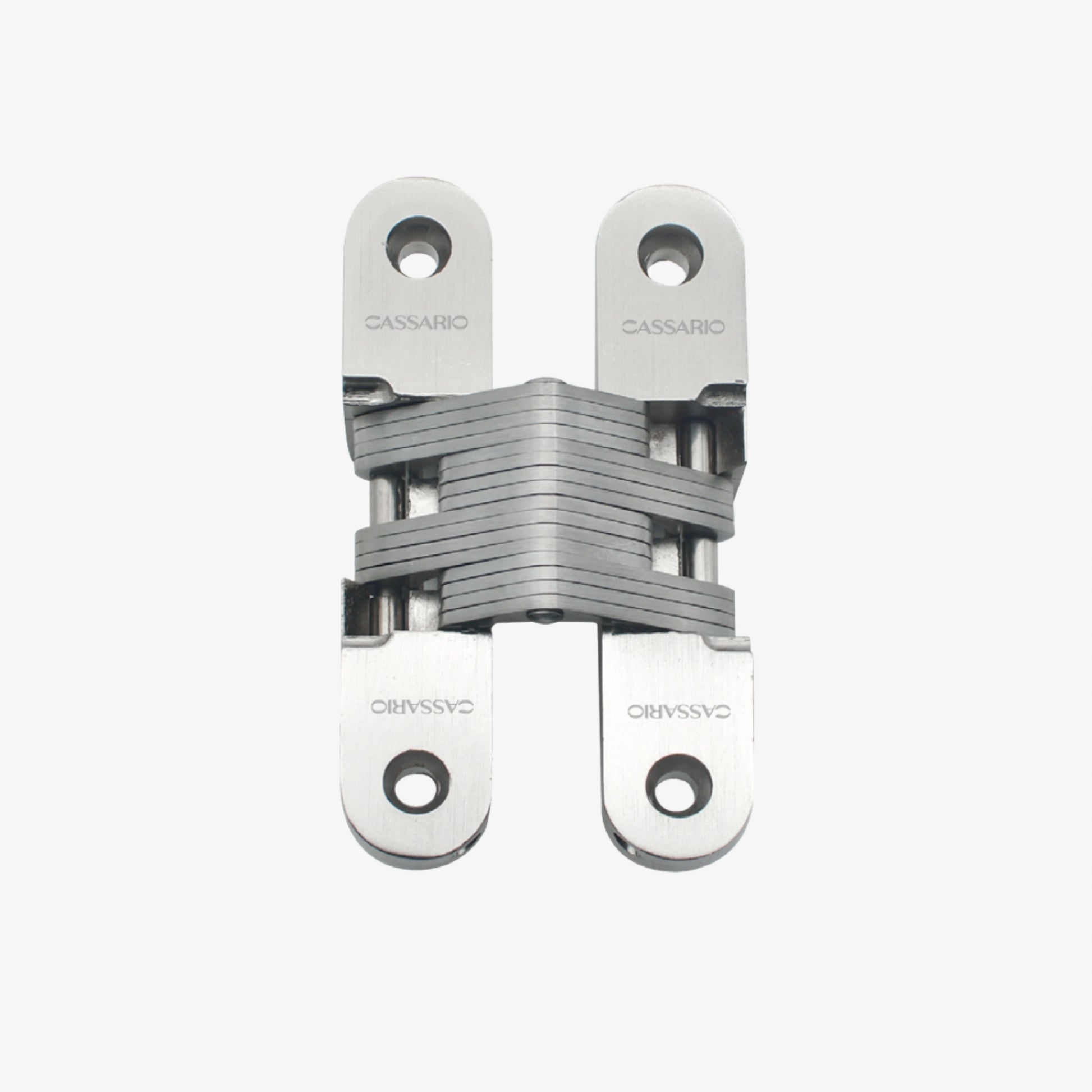

Cassario 3D Concealed Hinge 95x19mm

SKU: 391800100527

The 95x19mm size sits between the entry and heavy-duty options in the Cassario Concealed range, suited to standard interior doors where a clean, hardware-free edge is required without the higher load demands of larger leaves. Its non-handed design and three-hinge-per-door specification keep installation straightforward across timber and metal applications alike.

AED 57
AED 57
Сумма налога включена.
Color: Satin Nickel
Size
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
95x19mm
Origin:
China
Colour:

Stepping up from the 70x16mm size, the 95x19mm Concealed Hinge is built from a zinc alloy body with stainless steel strips, giving it the stability to handle mid-weight interior doors while remaining completely hidden when the door is closed. Non-handed by design, it installs without left/right distinction, simplifying specification across multiple openings.



Core Features

  • Totally concealed when door is closed
  • 95x19mm size, rated to 35kg maximum door weight
  • Zinc alloy body with stainless steel strips
  • Non-handed construction
  • Maximum opening angle of 180°
  • Suitable for timber and metal doors
  • Concealed installation for a flush, hardware-free sightline
  • Suggested at 3 pieces per door
  • Supplied with screws for wooden doors
  • 10-year mechanical warranty
Specifications
Cassario 3D Concealed Hinge 95x19mm
Weight Capacity:
35 Kg
Mounting Type:
Concealed Fixing by screws
Door Thickness Compatibility:
26-34mm
Package Contents:
Concealed Hinges (1 Pair) Screws (4 pcs)
Downloads

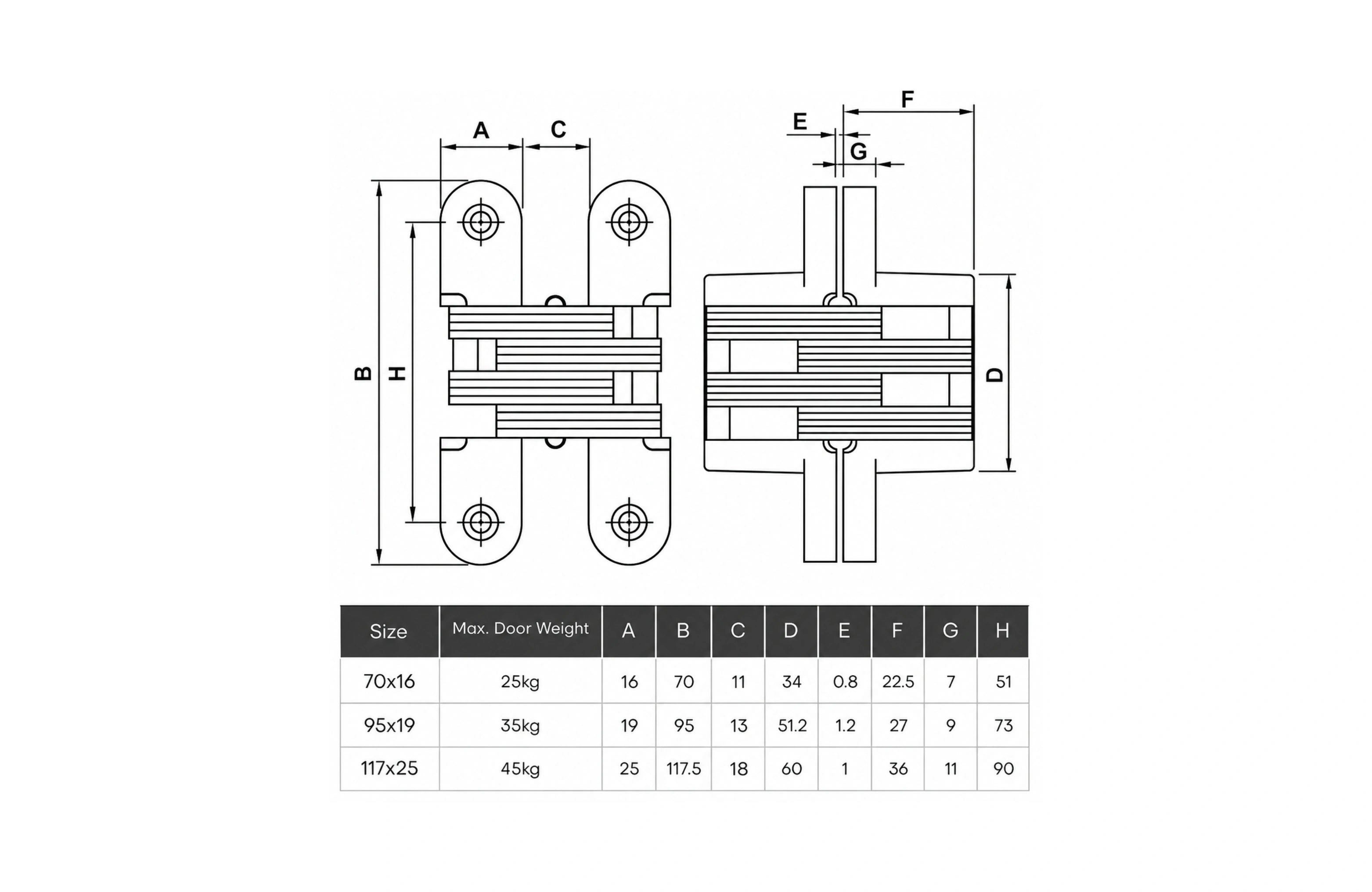

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
