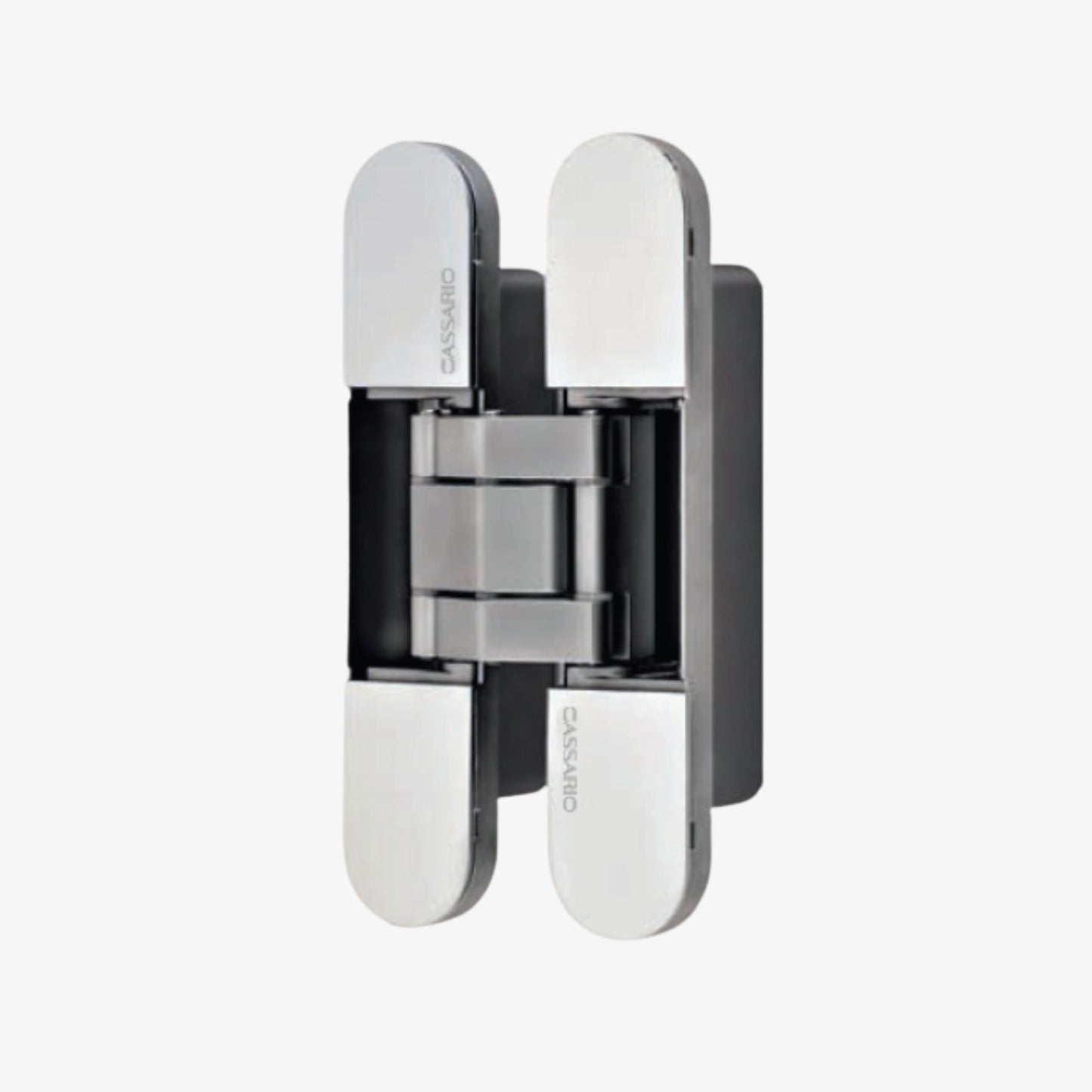

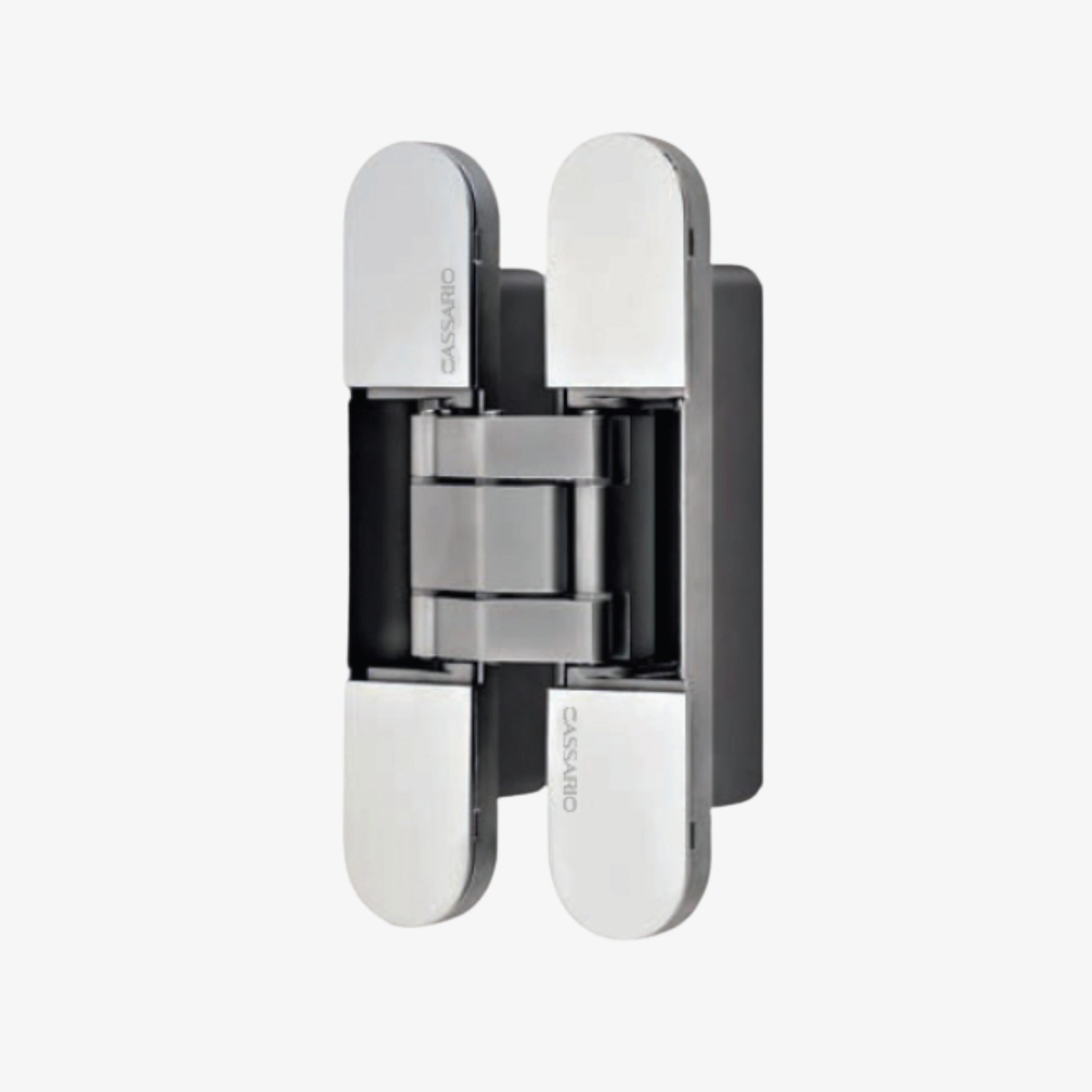

Cassario 3D Concealed Hinge (CH60) 135x28mm

SKU: 391800100529

With EN1634 fire certification and a 60kg two-hinge capacity, the CH60 is positioned for doors that need to carry real weight while staying entirely out of sight when closed. Its 3D adjustment range allows precise on-site correction, making it a dependable choice where both performance and a seamless aesthetic are non-negotiable.

AED 210
AED 210
Сумма налога включена.
Color: Satin Chrome
Size
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
135x28mm
Origin:
China
Colour:

The CH60 brings full three-dimensional adjustability to a concealed format engineered for higher load doors, supporting up to 60kg across just two hinges. Designed for wooden, steel, or aluminium frames, it suits interior doors where the brief calls for clean, hardware-free lines without limiting door size or frequency of use.

Core Features

  • Fully concealed when door is closed
  • 3D adjustable: vertical ±2.5mm, horizontal ±2mm, depth ±1mm
  • Weight capacity up to 60kg using two hinges
  • 180° opening angle
  • Compatible with door thicknesses from 36-55mm
  • Suitable for wooden, steel, and aluminium door frames
  • Certified to EN1634 for fire-resistance performance
  • Suitable for fire door applications
  • Rated for high-frequency opening doors
  • Symmetrical slot design for straightforward installation
  • Suited to residential, commercial, and industrial applications
  • 10-year mechanical warranty
Specifications
Cassario 3D Concealed Hinge (CH60) 135x28mm
Technical
Weight Capacity:
60 Kg
Mounting Type:
Concealed Fixing by screws
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
45mm-55mm
Package Contents:
Concealed Hinges (1 Pair) Screws (8 pcs) Caps(8 pcs)
Downloads

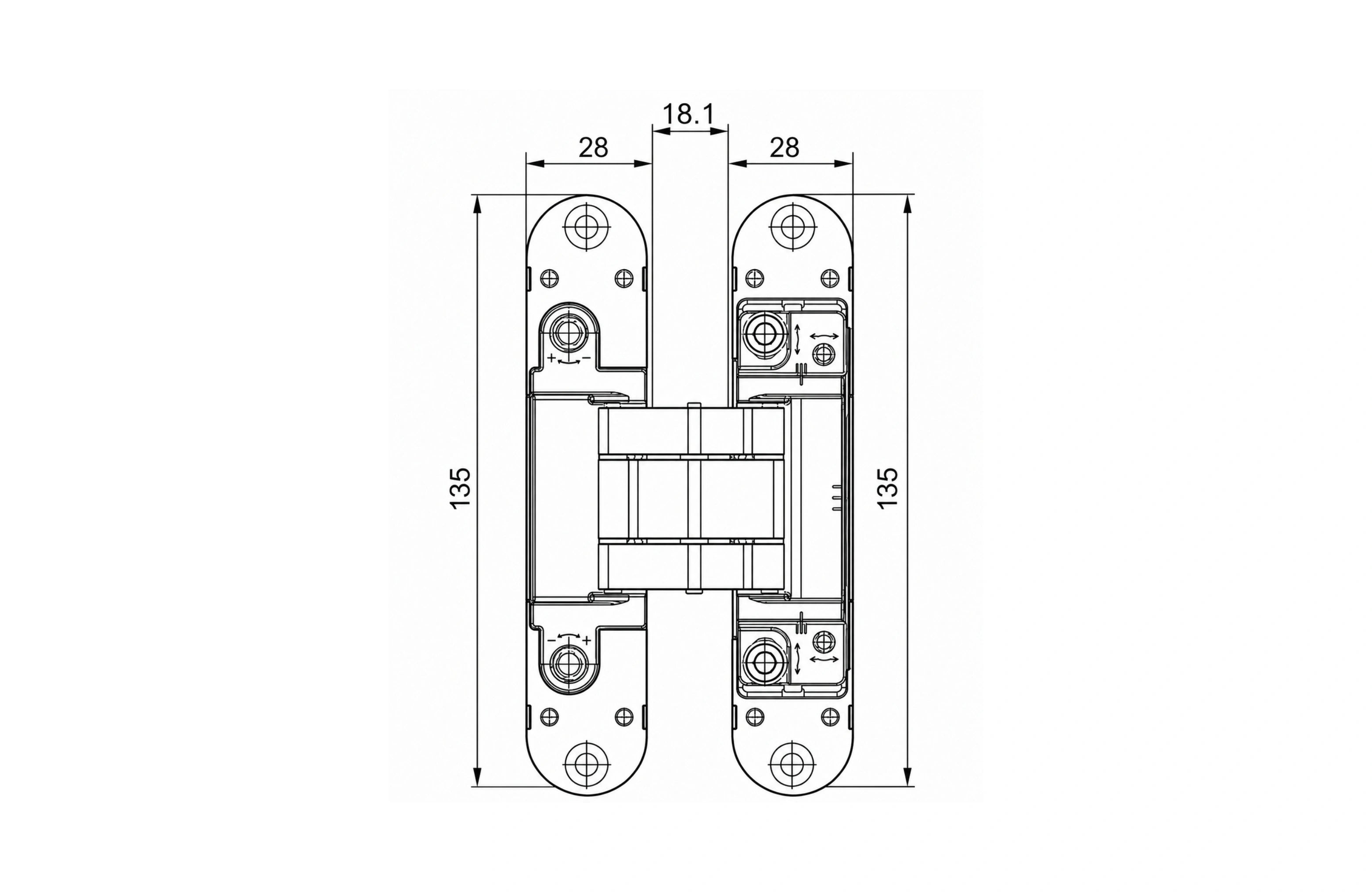

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
