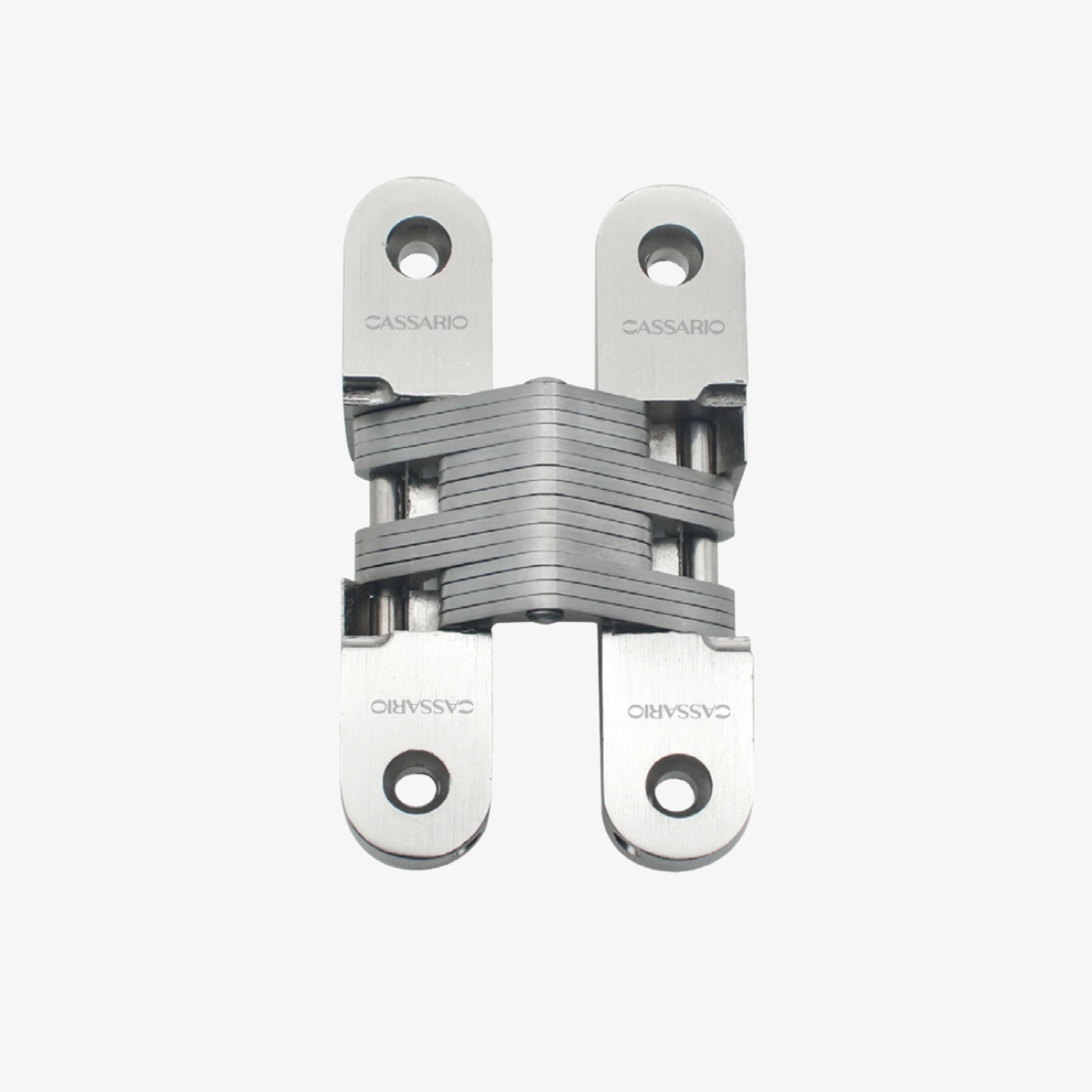

Cassario 3D Concealed Hinge 70x16mm

SKU: 391800100526

At 25kg capacity, the 70x16mm hinge is positioned for lighter, lower-traffic doors within the Cassario Concealed range — internal residential doors and similar applications where load demands are modest but a flush, invisible hinge line is still part of the specification.

AED 46
AED 46
Сумма налога включена.
Color: Satin Nickel
Size
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
70x16mm
Origin:
China
Colour:

This is the smallest size in the Cassario Concealed Hinge range, suited to lighter internal doors where a hardware-free sightline is still required. Despite its compact footprint, the hinge retains the full 3D adjustability of the larger sizes, allowing the door leaf to be fine-tuned after installation.



Core Features

  • Fully concealed when door is closed
  • 70x16mm size, rated to 25kg maximum door weight
  • 3D adjustable: vertical ±2.5mm, horizontal -2mm/+4mm, depth ±1mm
  • 180° opening angle
  • Compatible with door thicknesses from 40-60mm
  • Suitable for wooden, steel, and aluminium door frames
  • Rated for high-frequency opening doors
  • Suitable for fire door applications
  • Symmetrical slot design for straightforward installation
  • Suited to residential, commercial, and industrial applications
  • 10-year mechanical warranty
Specifications
Cassario 3D Concealed Hinge 70x16mm
Weight Capacity:
25 Kg
Mounting Type:
Concealed Fixing by screws
Door Thickness Compatibility:
22-30mm
Package Contents:
Concealed Hinges (1 Pair) Screws (4 pcs)
