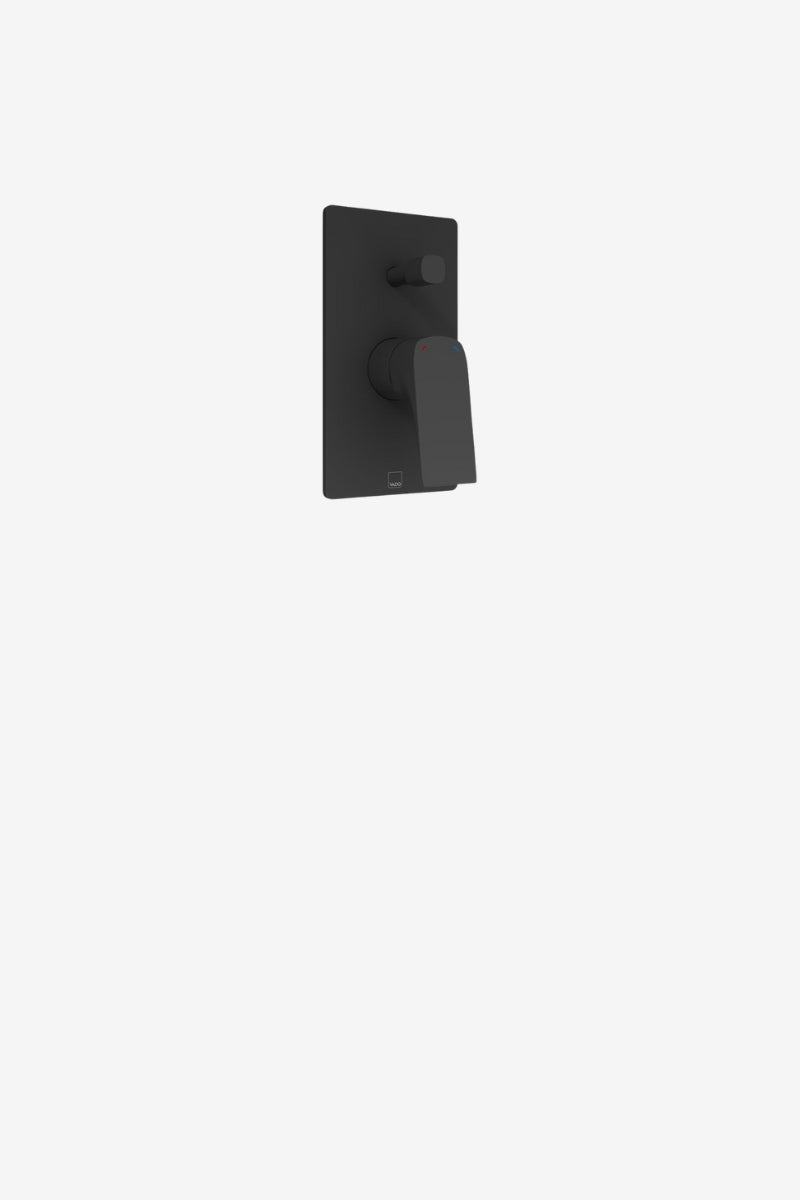

VADO Cameo Square Concealed 2-Outlet Manual Valve 120 x 100 x 185 mm

SKU: 390100112713

Concealed 2-outlet manual valve by Vado Cameo, dual outlet control with lever handle, wall-mounted design for concealed shower systems. Durable & stylish.

AED 426
AED 426 Exclusive Offer
Сумма налога включена.
Colour: Matt Black
Material
Chat Now My Projects
Recommended Add-ons
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. Просмотреть всю информацию
Chat Now My Projects
Summary
Brand:
VADO
Series:
Cameo
Mounting:
Wall Mounted
Colour:
Material:

Upgrade your bathroom shower system with the Cameo Concealed 2 Outlet Manual Valve by Vado. Designed to be hidden within the wall, this valve delivers manual control over two separate outlets, perfect for switching between shower components like a fixed head and a handheld kit with ease.

This concealed valve combines a minimalist look with robust performance. With its stylish matt black finish and clean square design, it complements modern bathroom aesthetics while providing reliable operation and compatibility with a range of shower systems.

Key Features

  • Matt Black Finish bold, contemporary colour that pairs with modern bathroom fittings.

  • Dual Outlet Manual Control manually switch between two shower outlets for flexible showering options.

  • Concealed Wall Mounted installs behind the wall for a clean, uncluttered look.

  • Single Lever Handle for intuitive and smooth operation.

  • Ceramic Cartridge (C-006-N35) for long-lasting performance.

  • Wide System Compatibility suitable for gravity, pumped, and combination boiler systems.

  • Minimum Operating Pressure: ~0.2 Bar (Low Pressure) / ~1.0 Bar (Medium Pressure) shower & bath applications.

  • 10-Year Guarantee confidence in long-term quality.

Note: Shower heads, handsets and hoses are sold separately and can be paired with this valve for a complete shower solution.

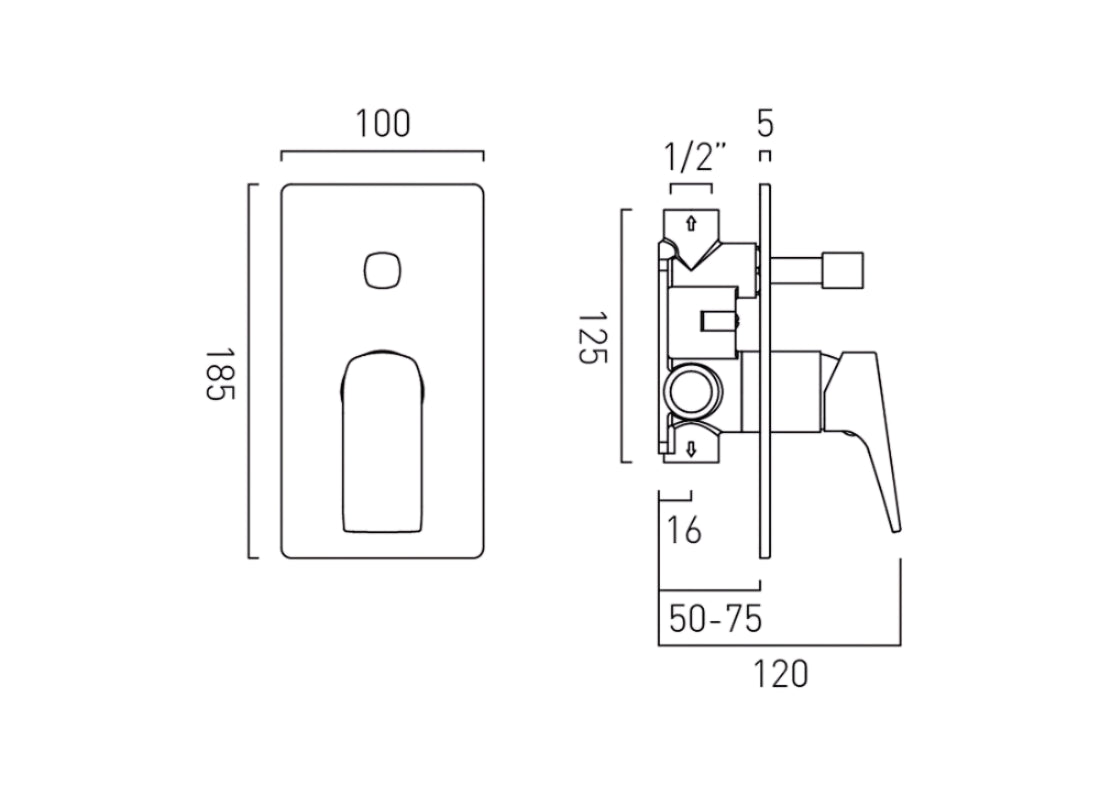

Specifications
VADO Cameo Square Concealed 2-Outlet Manual Valve 120 x 100 x 185 mm
Dimensions
Length:
120mm
Width:
100mm
Height:
185mm
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
