Brand image

Septa Pro U3 Urinal Flush Plate

SKU: 390100110179

Ideal Standard Septa Pro R0139AA flush plate. Mechanical urinal actuator in chrome with adjustable flush for UAE washrooms.

AED 2,913
AED 2,913
MRP is inclusive of all taxes
Color: Chrome
Material
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
Ideal Standard
Series:
Septa
Colour:
Material:

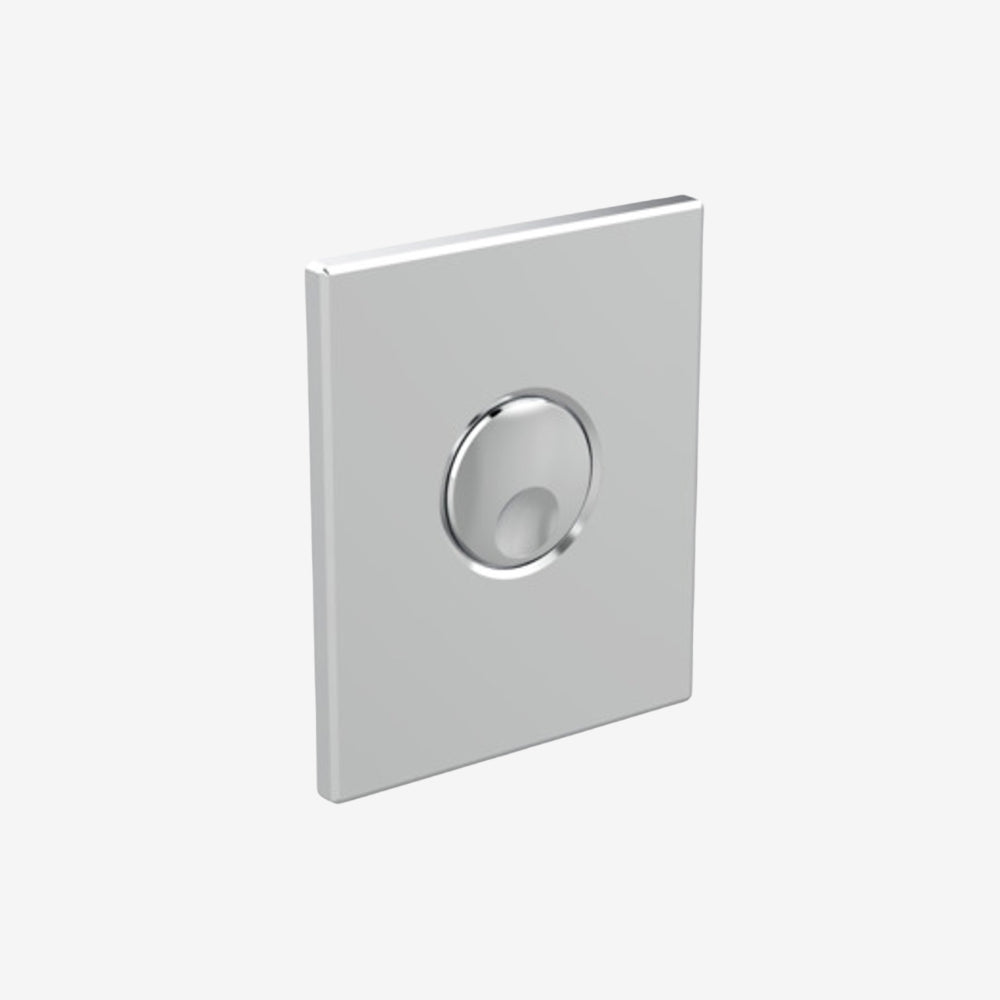

The Ideal Standard Septa Pro R0139AA is a mechanical urinal flush plate (actuator) designed for concealed flushing systems. With its compact rectangular design (124 x 150 x 12 mm) and chrome finish, it integrates seamlessly into modern washroom environments.

Engineered for performance, it operates via a manual push-button mechanism, ensuring reliable flushing even without electricity, making it suitable for both residential and commercial applications.

The system supports a single flush operation with adjustable flushing time, allowing optimization of water usage depending on project requirements.

Constructed from high-quality ABS plastic with chrome plating, it offers durability, resistance to wear, and long-term performance in high-traffic environments such as hotels, offices, and public restrooms.

Designed with anti-vandal properties, the flush plate is built to withstand heavy usage while maintaining functionality, making it a strong choice for commercial installations.

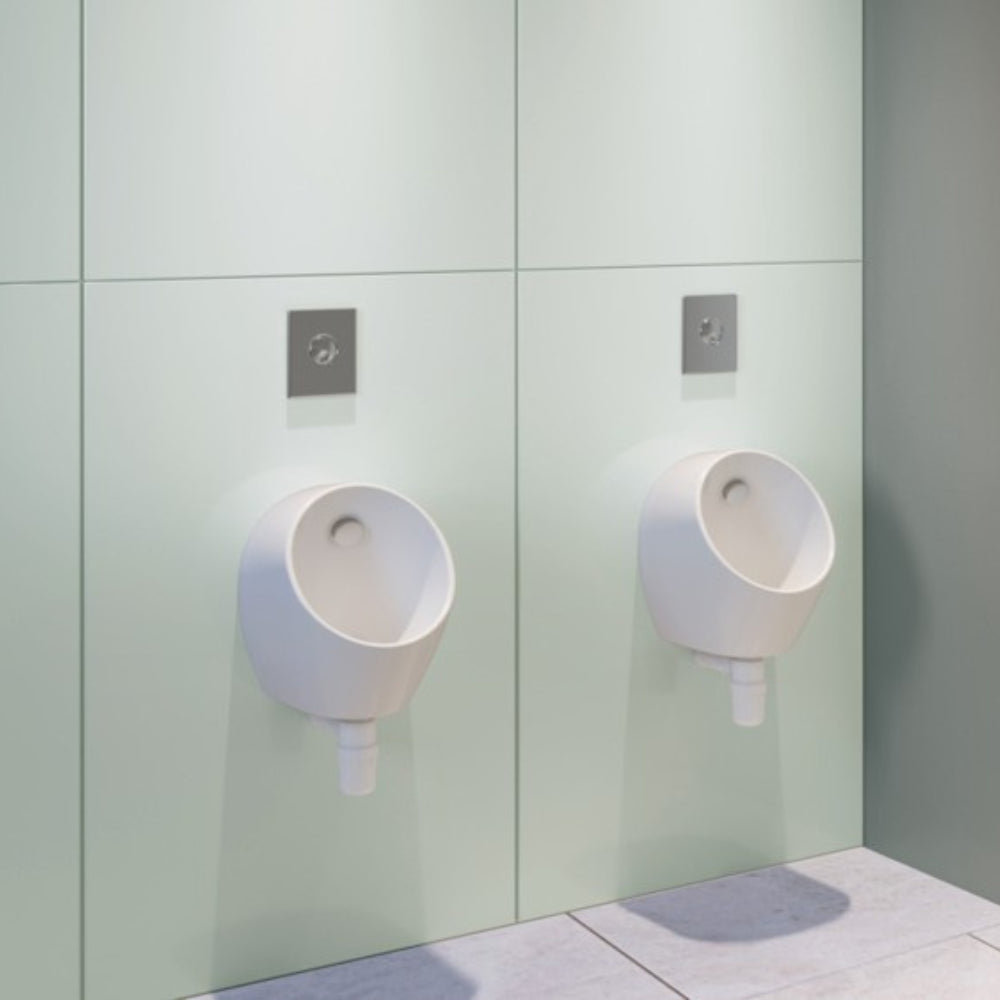

Its front actuation design and concealed mounting system ensure easy installation and a clean, minimal finish on the wall surface.

Features

  • Urinal flush plate (mechanical actuator)
  • Manual push-button operation
  • Single flush system (adjustable flushing time)
  • Chrome finish (clean, modern look)
  • Durable ABS construction (lightweight & strong)
  • Anti-vandal design (high-use durability)
  • Concealed installation compatibility
  • Front actuation for easy use
  • Suitable for residential & commercial washrooms
Specifications
Septa Pro U3 Urinal Flush Plate
Size:
Width: 124 mm Height: 150 mm Depth: 12 mm
Technical
Weight Capacity:
~0.23 kg
Mounting Type:
Concealed (front-mounted plate)
Operation Type:
Mechanical Push Button
Application Area:
Suitable for commercial sectors
Installation Details
Type:
Urinal Flush Plate / Actuator
Package Contents:
Mounting: Front Fixing Set, Actuation Force: <20 N, Flush Flow: ~0.3 L/sec, Flush Type: Single Flush
Downloads

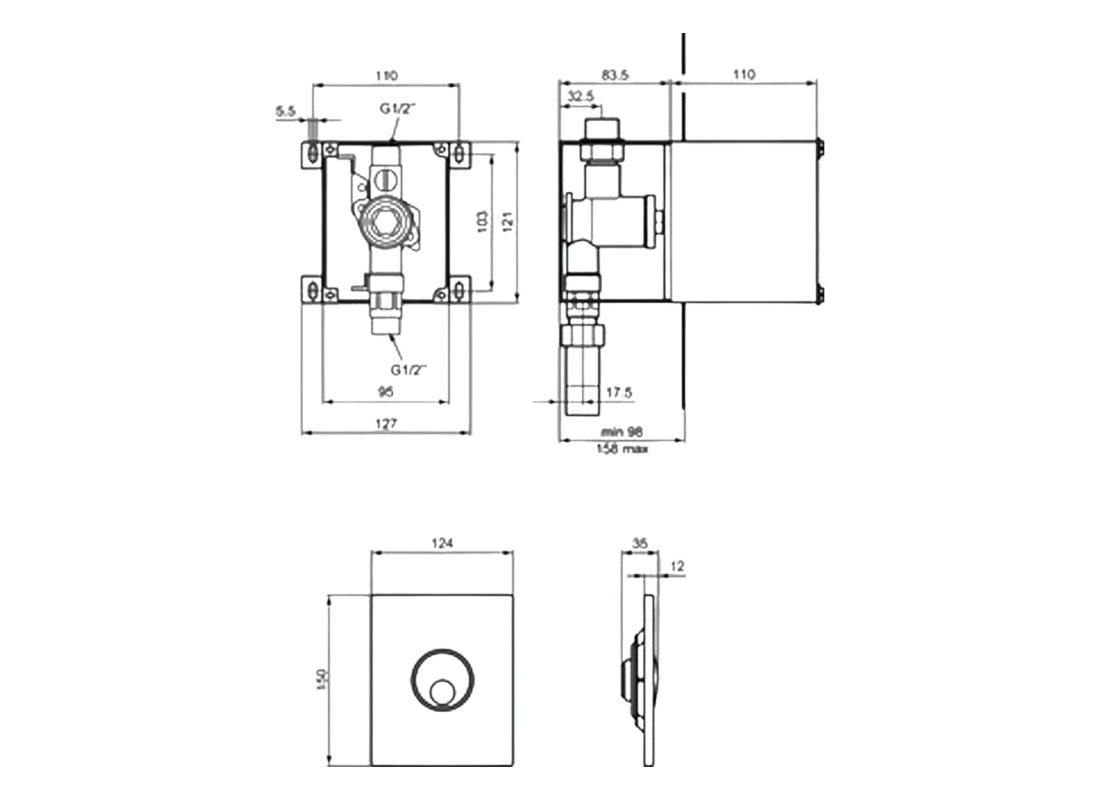

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
