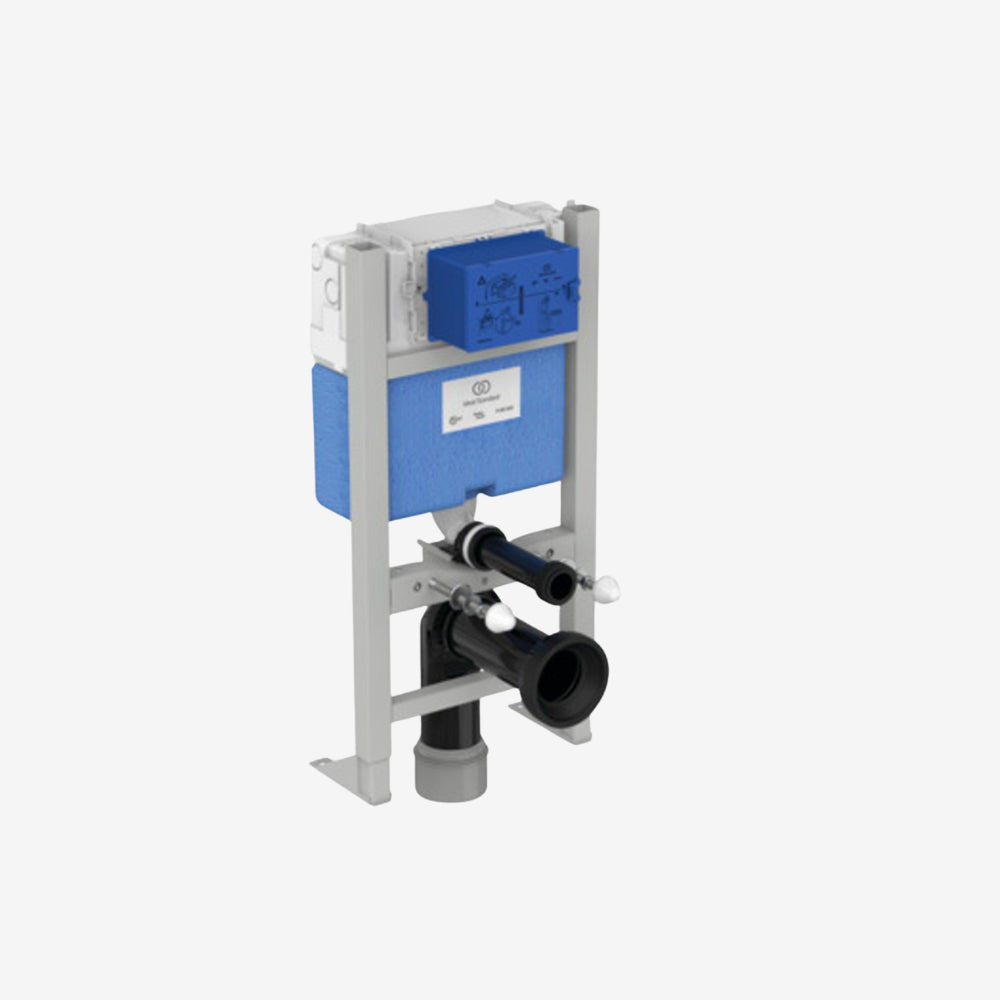

ProSys Frame 820 Dry WC 150 SLF STD CL1 – Wall-Hung Toilet Installation Frame

SKU: 390100112187

ProSys Frame 820 Dry WC 150 SLF STD CL1. Concealed wall-hung toilet installation frame with mechanical dual flush compatibility.

AED 1,032
AED 1,032
MRP is inclusive of all taxes
Color: Chrome
Material
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
Ideal Standard
Series:
ProSys
Mounting:
Floor Mounted
Water Efficiency:
Yes
Colour:
Material:

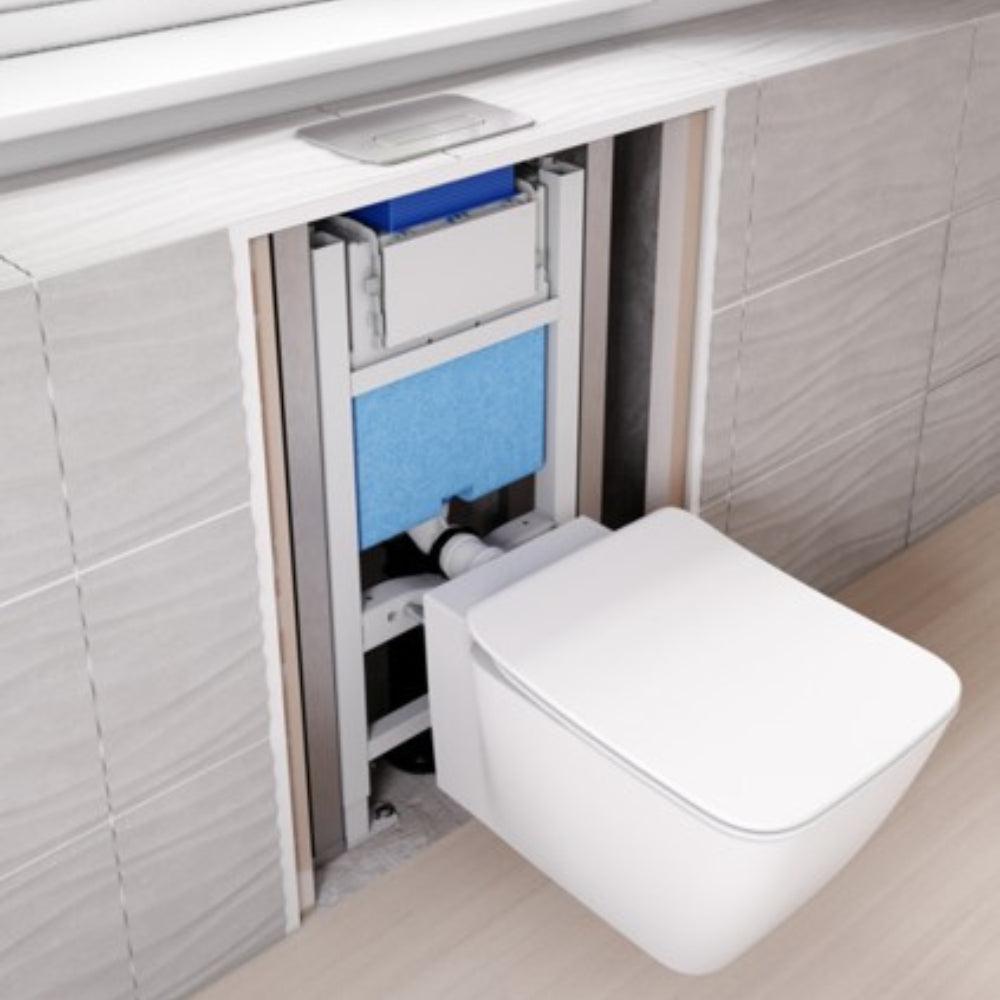

The Ideal Standard ProSys Frame 820 Dry WC 150 SLF STD CL1 is a robust concealed installation frame and cistern support system engineered for wall-hung toilets. Designed with 820 mm height and 150 mm frame depth, this heavy-duty WC frame accommodates a range of selected wall-hung WC bowls with 6/4 L or 4.5/3 L dual flush options and supports reliable mechanical actuation. Built from mixed materials for strength and long-lasting performance, the ProSys frame delivers a sleek, floor-clearing installation that enhances bathroom aesthetics and simplifies cleaning. Compatible with a selection of Ideal Standard & Armitage Shanks flush plates and accessories, it’s ideal for residential and commercial projects.

Key Features

  • 820 mm wall-hung WC frame robust support for suspended toilet bowls.

  • 150 mm installation depth space-efficient frame depth suitable for standard wall cavities.

  • Mechanical dual-flush compatibility works with mechanical flush plates.

  • Front or top actuation flexible installation options.

  • Suitable for 6/4 L or 4.5/3 L toilets supports various flush volumes for water savings.

  • Strong mixed-material construction engineered for durability.

  • Integrated cistern support prepares installation for concealed toilets and flush plates.

  • Compatible with Ideal Standard & Armitage Shanks bowls excellent ecosystem flexibility.

  • Ideal for home, hotel, office, and commercial bathrooms.

Specifications
ProSys Frame 820 Dry WC 150 SLF STD CL1 – Wall-Hung Toilet Installation Frame

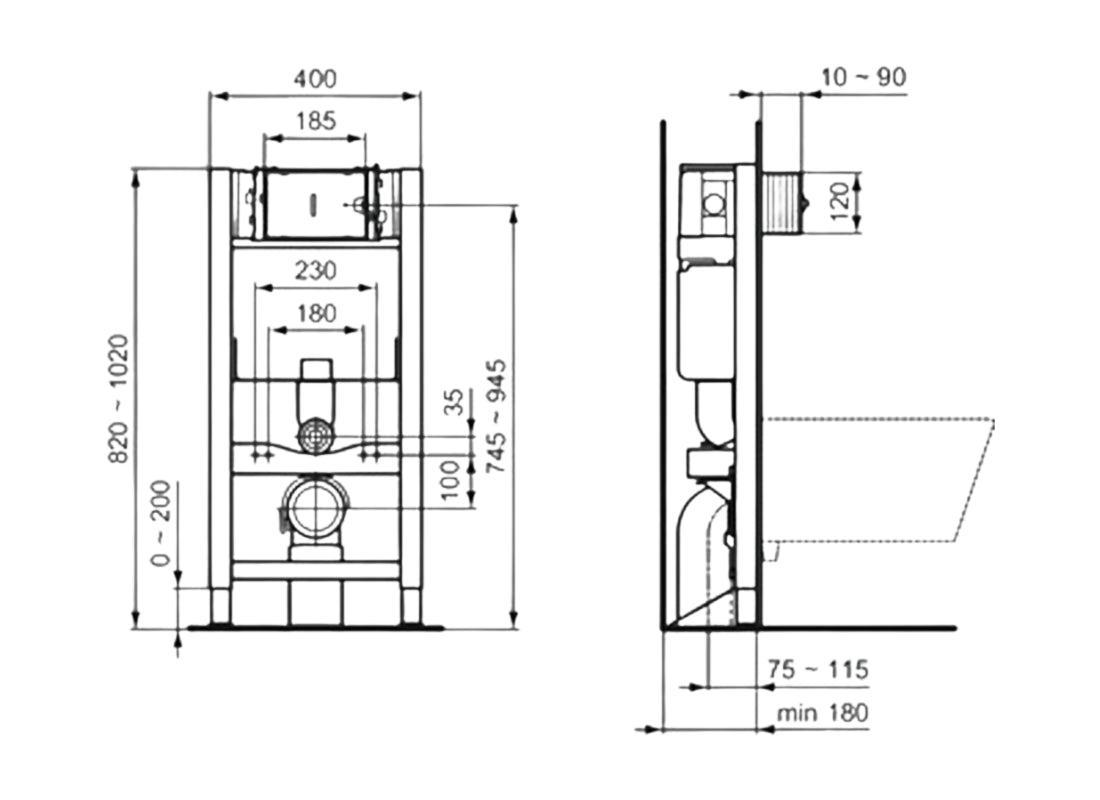

Dimensions
Length:
180mm
Width:
400mm
Height:
820 - 1020mm
Capacity & Weight
Weight:
13.87kg
Technical
Operation Type:
Mechanical (front or top)
Installation Details
Type:
Wall-Hung WC installation frame & cistern support
Downloads
The 2D and 3D files available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
