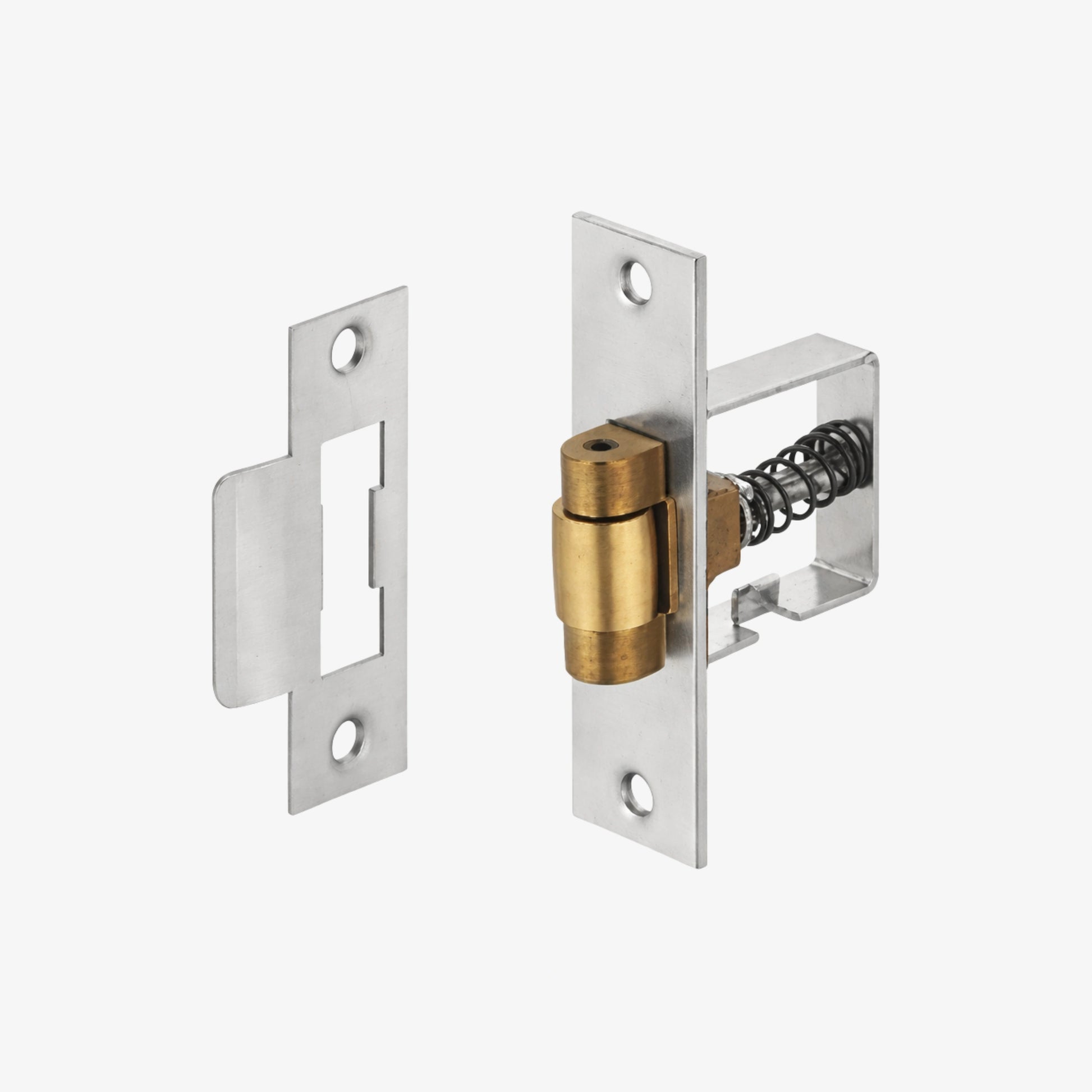

Roller Latch RL01 Adjustable Spring-Loaded SS304

SKU: 391800100445

Cassario Adjustable Spring-Loaded Roller Latch RL01 SS304 Satin Stainless Steel is designed for non-locking door applications, providing smooth and controlled closing through an adjustable spring-loaded roller mechanism. Engineered for consistent performance across residential door systems.

AED 12
AED 12
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Roller Latch
Material:
Stainless Steel 304 Grade
Product Type:
Locks & Latches
Model:
RL01
Mounting:
Lockbody Concealed Installation in Door Leaf Edge & Strike Plate in Door Frame
Origin:
Italy
Colour:
Finish:
Satin

The Cassario roller latch is developed as part of a complete architectural hardware system, offering a non-locking solution for doors where latching without locking is required. The adjustable spring-loaded roller mechanism ensures smooth engagement and controlled closing, while SS304 construction provides durability and corrosion resistance. Suitable for hinged and double action doors, it integrates seamlessly within residential door configurations.



Core Features

  • Adjustable spring-loaded roller mechanism for smooth and controlled closing
  • SS304 construction for durability and corrosion resistance
  • Flat forend edged design
  • Suitable for unrebated door construction
  • Designed for hinged and double action doors
  • Non-locking function for passage applications
  • Latch adjustment range from 2–11 mm
Specifications
Roller Latch RL01 Adjustable Spring-Loaded SS304

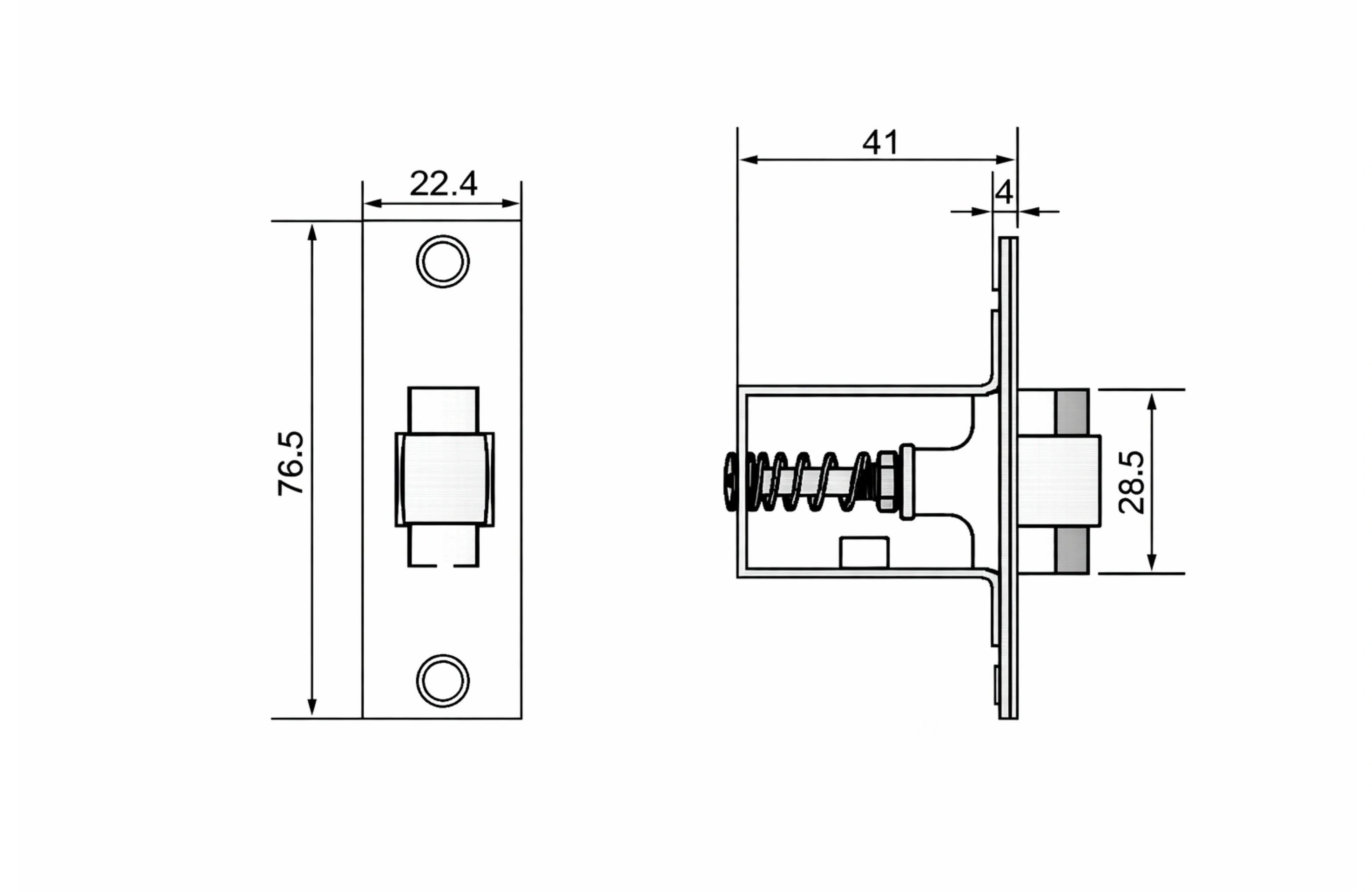

Dimensions
Length:
41mm
Height:
76mm
Technical
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Latch (1 nos) Strike Plate (1 nos) Screws (1 set)
Door Width Compatibility:
40mm-55mm
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
