Ideal Standard Extra Built-In Bath & Shower Mixer Kit 2 163 x 187 x 82 mm

SKU: 390100112859

Ideal Standard Extra built-in bath & shower mixer. Concealed mixer with 23L/min flow for UAE bathrooms.

AED 2,490
AED 2,490
MRP is inclusive of all taxes

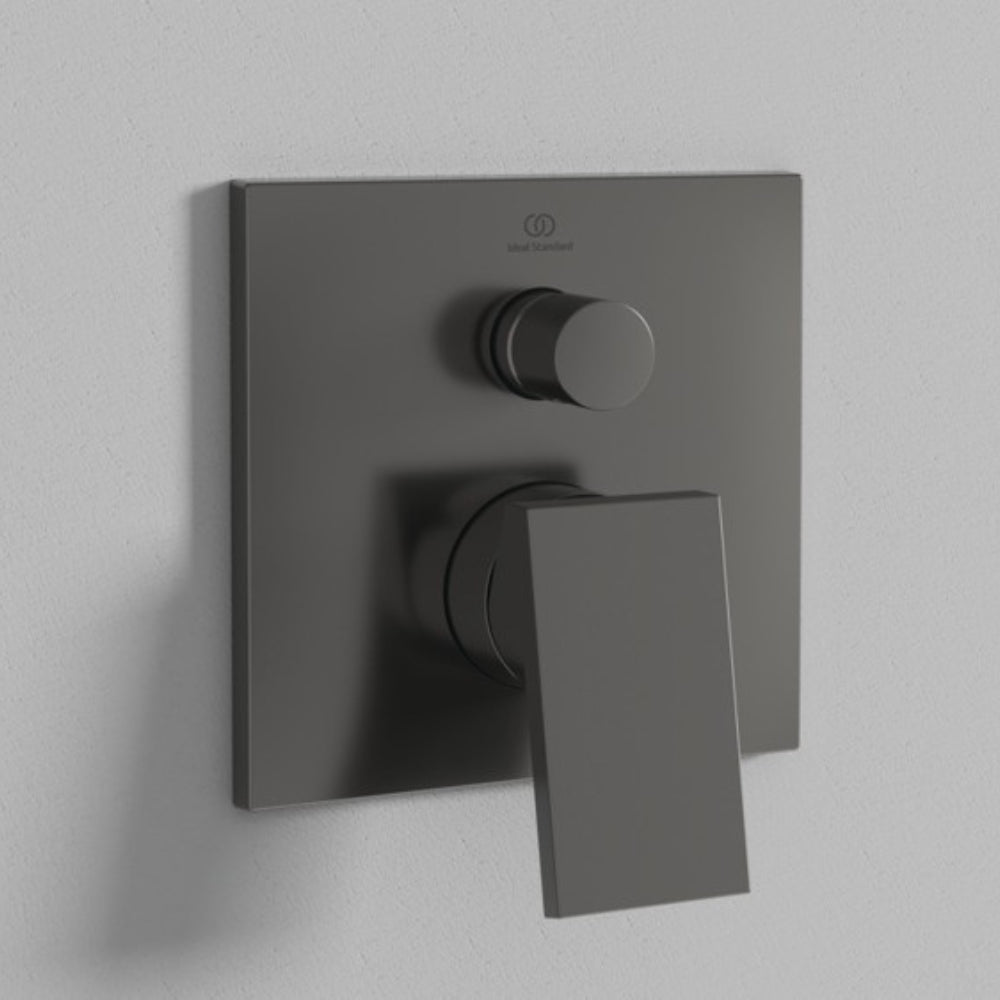

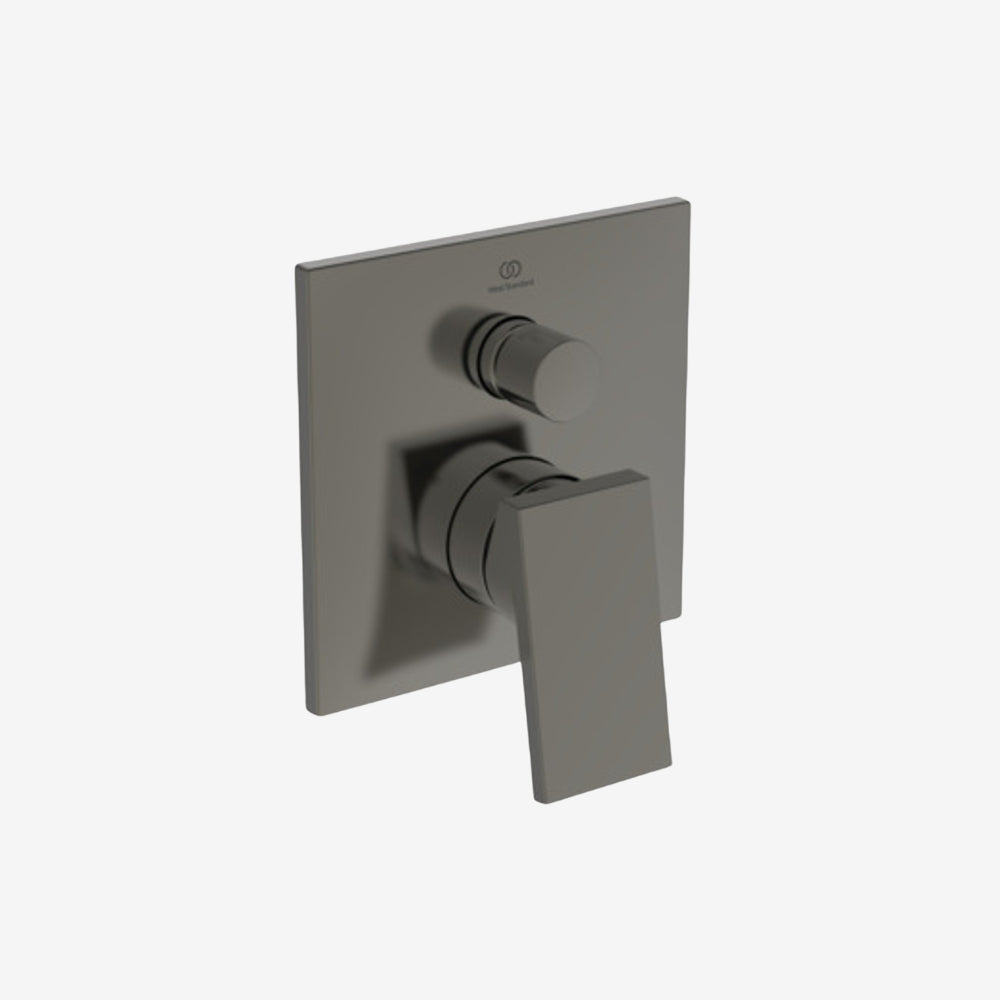

Color: Magnetic Gray
Material
Chat Now My Projects
Recommended Add-ons
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
Ideal Standard
Series:
Extra
Flow Rate:
23 L/min at 3 bars
Colour:
Material:

The Ideal Standard Extra is a concealed (built-in) bath & shower mixer – Kit 2, designed for high-end bathroom installations across the Middle East. It features a minimal square escutcheon and single lever control, offering a clean architectural finish with all plumbing hidden behind the wall.

Finished in advanced PVD technology, the mixer provides exceptional resistance to scratches and wear, maintaining its premium look even after long-term usage.

Engineered for performance, it delivers a high flow rate of 23 L/min at 3 bars, making it suitable for both bath filling and shower applications.

The mixer incorporates Click water-saving technology, reducing water usage by up to 50% unless the handle is fully engaged, ideal for sustainability-focused UAE projects.

It is equipped with a ceramic cartridge system and includes a built-in diverter, allowing smooth switching between bath and shower functions.

This is a Kit 2 (trim set only) and requires a separate built-in body (Kit 1 – A1000) for complete installation.

Features

  • Built-in bath & shower mixer (Kit 2)
  • PVD finish (high durability)
  • High flow rate: 23 L/min at 3 bars
  • Click technology (up to 50% water saving)
  • Integrated diverter (bath / shower switching)
  • Ceramic cartridge for long lifespan
  • Minimal square design
  • Concealed installation (clean wall finish)
  • Suitable for residential, hotel, and commercial use
Specifications

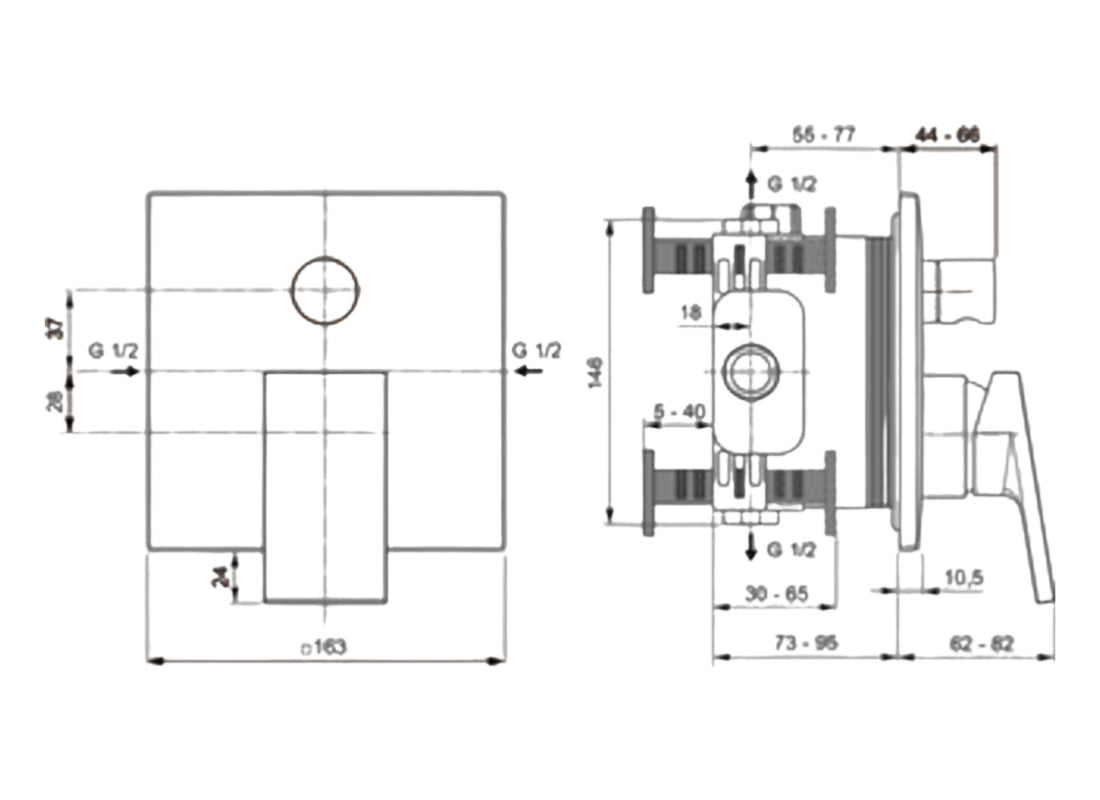

Ideal Standard Extra Built-In Bath & Shower Mixer Kit 2 163 x 187 x 82 mm
Size:
Width: 163 mm Height: 187 mm Projection: 62–82 mm
Weight Capacity:
~1.72 kg
Mounting Type:
Concealed / Wall Mounted
Installation Details
Type:
Built-In Bath & Shower Mixer (Kit 2)
Package Contents:
Standards: ACS, BGCC, Mounting: Built-in (requires Kit 1 – A1000), Handle Type: Single Lever, Cartridge: Ceramic Cartridge
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
