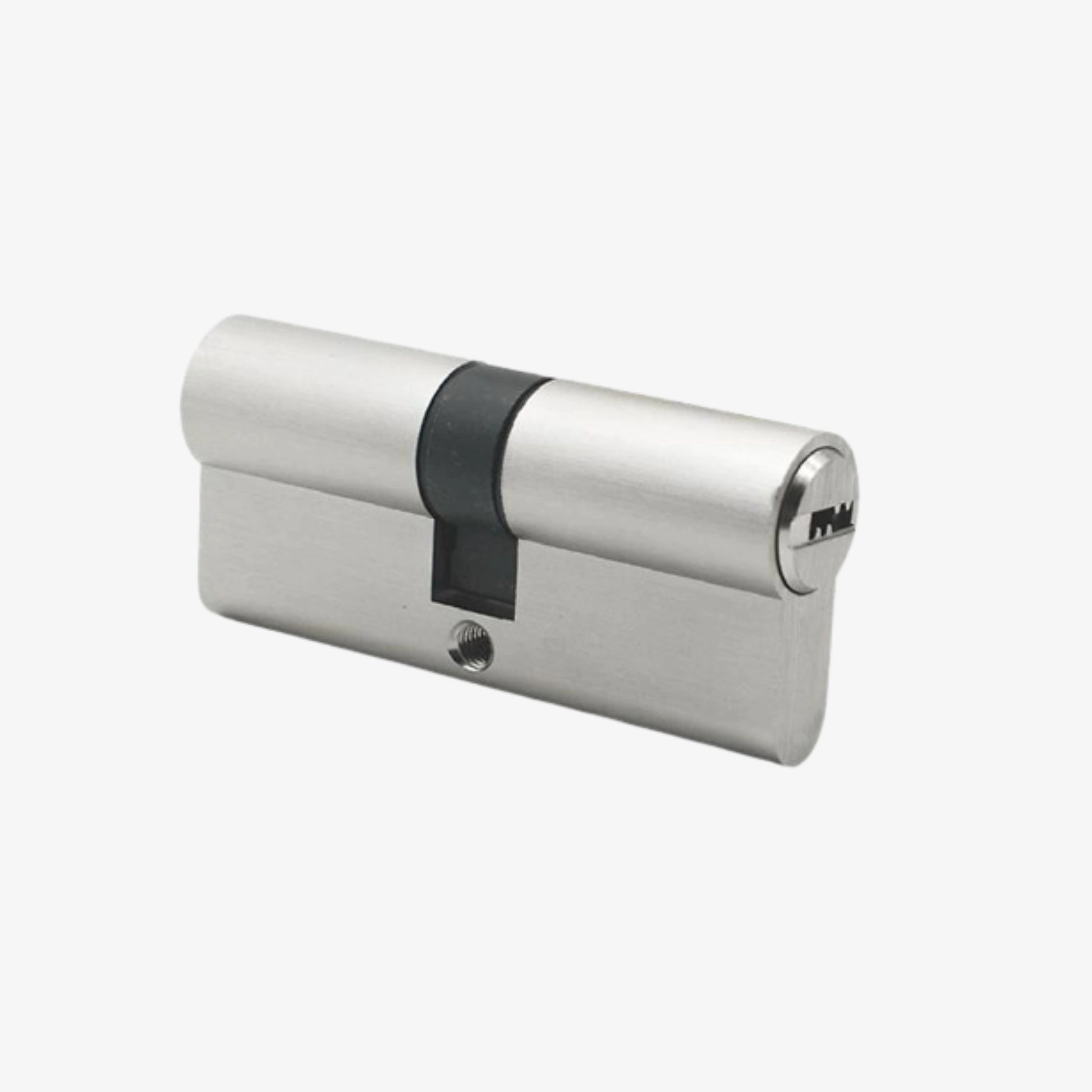

Cassario Euro Profile High-Security Cylinder 6 Pin, 70mm

SKU: 391800100503

A precision-engineered high-security euro profile cylinder machined from solid brass, conforming to BS EN 1303. Designed for applications where elevated protection, pick resistance, and master key compatibility are essential specification requirements.

AED 47
AED 47
MRP is inclusive of all taxes
Color: Satin Nickel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Key + Key Cylinder
Material:
Solid Brass
Product Type:
Cylinders
Origin:
Italy
Colour:

The Cassario Euro Profile High-Security Cylinder delivers a reinforced level of protection beyond standard cylinder offerings. Engineered with a 6-pin tumbler system and a 30-degree angle offset cam, it actively resists knock-through attacks while maintaining smooth, reliable key operation from both sides. Supplied with five 2.8mm dimple keys as standard, it is suited to commercial, hospitality, and residential projects where security performance is a primary specification criterion.

Constructed from solid brass with specially treated brass springs for sustained pin tension, the cylinder conforms fully to BS EN 1303:2015. It is available in equal and unequal size configurations and is compatible with master key suite systems upon request, making it a practical choice for large-scale access management schedules across single and multi-unit developments.

CORE FEATURES

  • High-security euro profile cylinder with double-sided key operation
  • Solid brass body for structural integrity and long-term durability
  • 6-pin tumbler system for enhanced pick and manipulation resistance
  • 30-degree angle offset cam actively inhibits knock-through attack
  • Specially treated brass springs for consistent and lasting pin tension
  • Supplied with five 2.8mm dimple keys as standard
  • Compatible with equal and unequal size configurations
  • Master key suite compatible — available upon request
  • Conforms to BS EN 1303:2015
  • Suitable for 90-minute fire-rated door assemblies
  • Country of origin: Italy
Specifications
Cassario Euro Profile High-Security Cylinder 6 Pin, 70mm
Size:
70 mm
Technical
Fire Rating:
90 minutes
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Cylinder(1 Nos) Keys Set (5 pcs) Screw (1 Pcs)
Door Width Compatibility:
50mm-55mm
Downloads

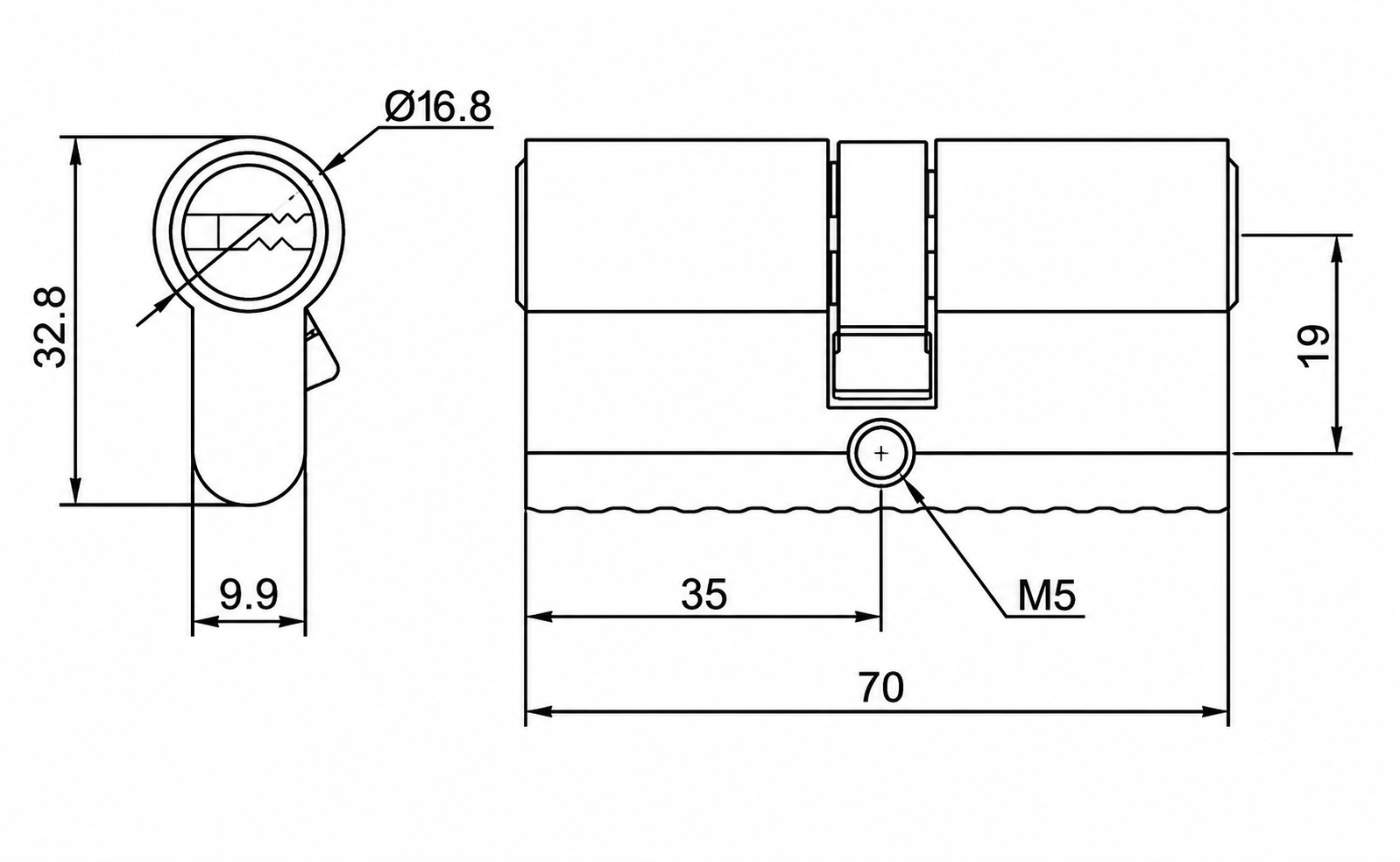

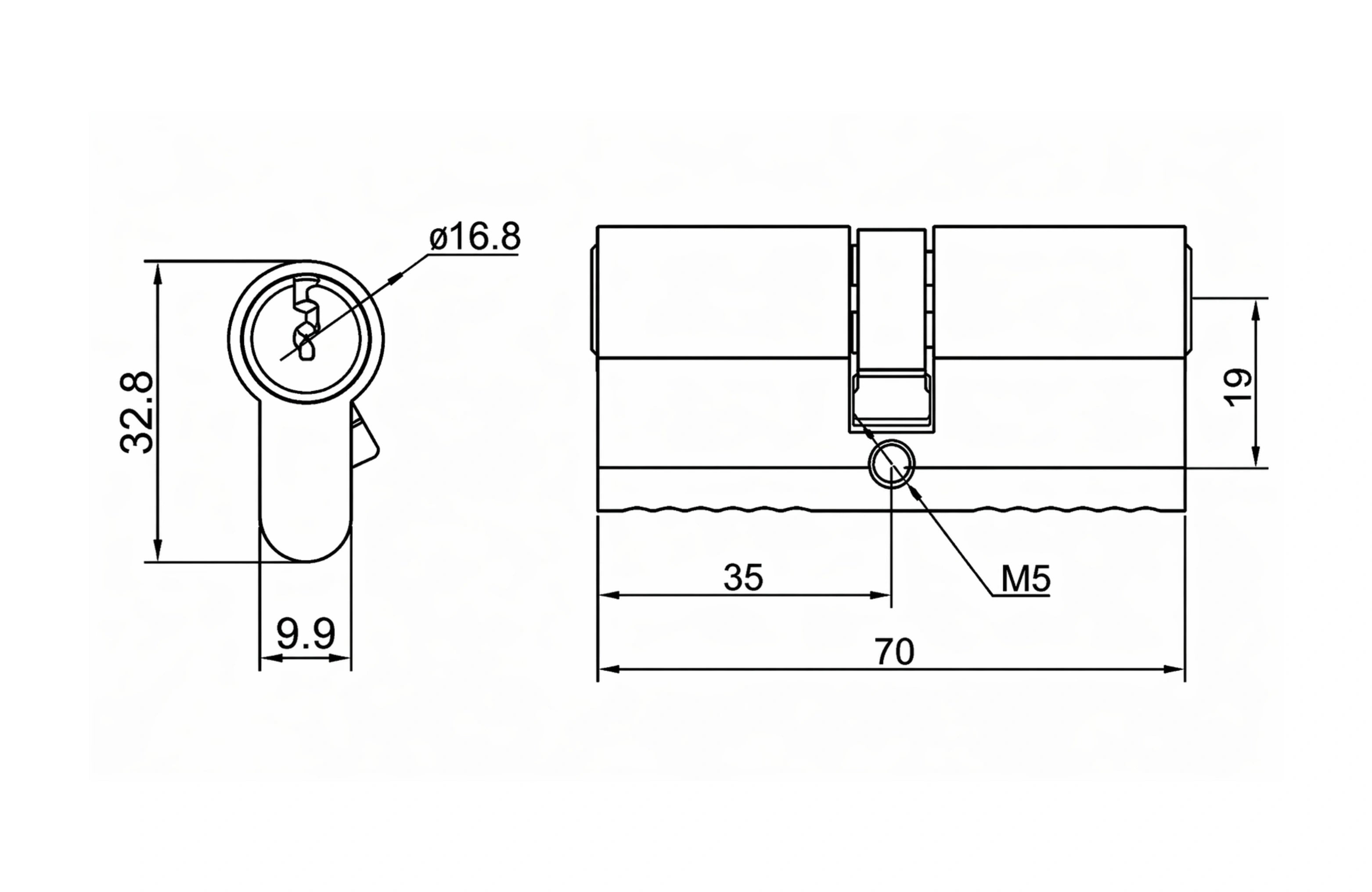

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
