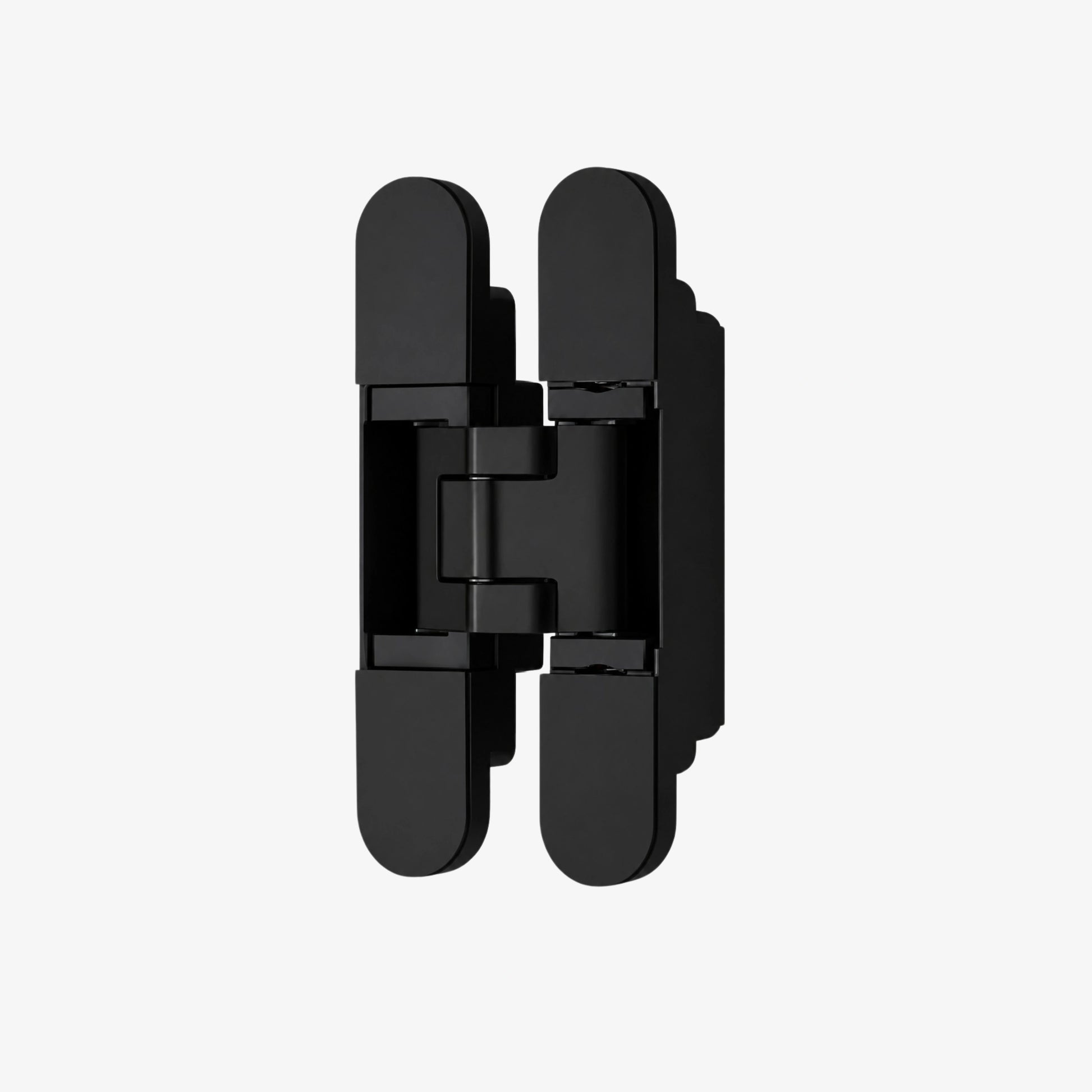

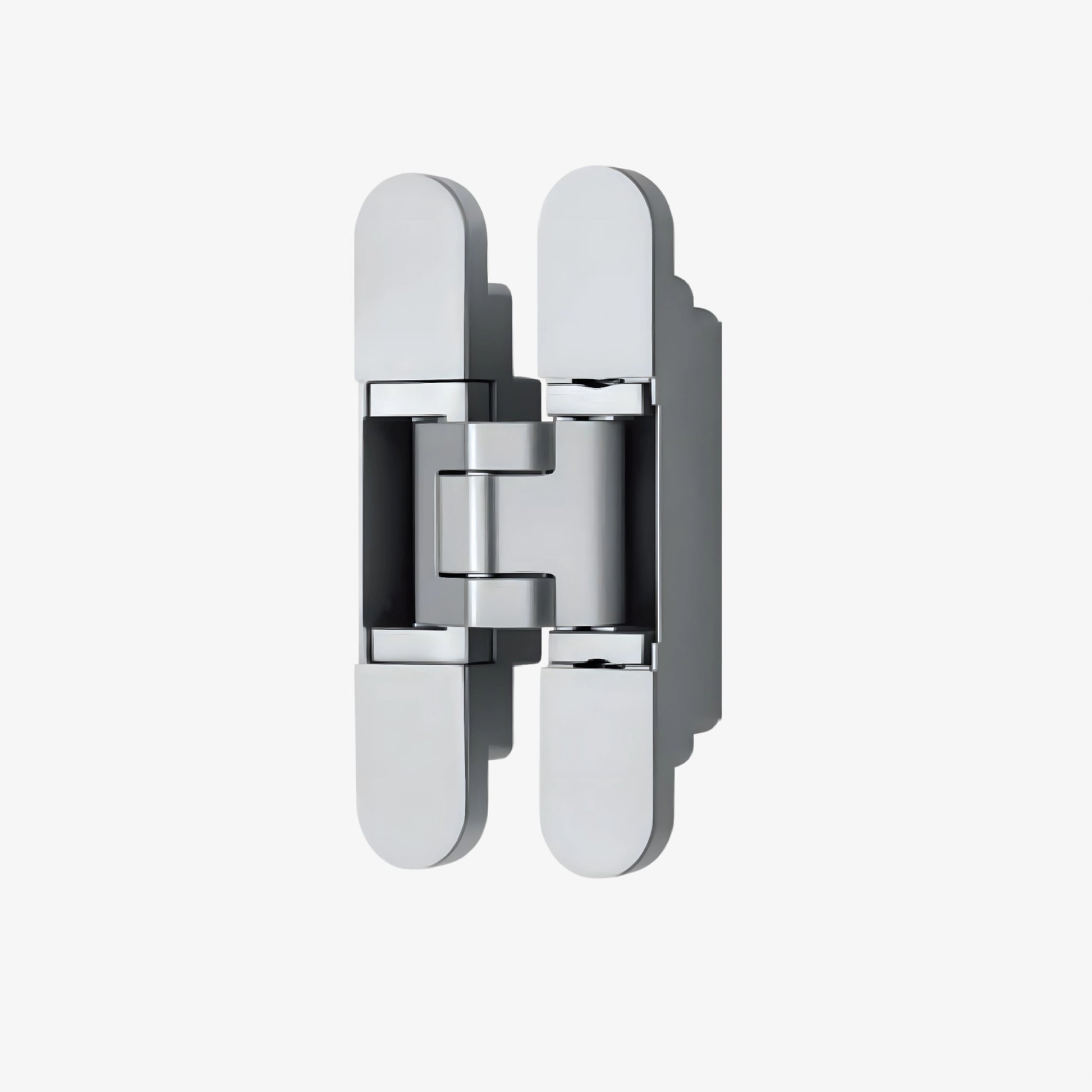

Cassario 3D Concealed Hinge (CH80) 159.8x29.8mm

SKU: 391800100533

Where the CH60 covers standard interior doors, the CH80 is specified for heavier or larger leaves that still call for a completely concealed hinge — high-end residential entrances, feature doors, or commercial openings where load and aesthetics are equally non-negotiable. Its 3D adjustment range ensures precise alignment is achievable even on substantial door assemblies.

AED 273
AED 273
MRP is inclusive of all taxes
Color: Satin Chrome
Size
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
159.8x29.8mm
Origin:
China
Colour:

The CH80 is the heavy-duty option in the Cassario Concealed range, rated to 80kg across two hinges and intended for substantial door leaves where a fully hidden hinge line is still required. It carries the same 3D adjustability as the CH60 but with a larger format built to absorb greater load and frequency of use.



Core Features

  • Fully concealed when door is closed
  • 3D adjustable: vertical ±2.5mm, horizontal -2mm/+4mm, depth ±1mm
  • Weight capacity up to 80kg using two hinges
  • 180° opening angle
  • Compatible with door thicknesses from 40-60mm
  • Suitable for wooden, steel, and aluminium door frames
  • Suitable for fire door applications
  • Rated for high-frequency opening doors
  • Symmetrical slot design for straightforward installation
  • Suited to residential, commercial, and industrial applications
  • 10-year mechanical warranty
Specifications
Cassario 3D Concealed Hinge (CH80) 159.8x29.8mm
Technical
Weight Capacity:
80 Kg
Mounting Type:
Concealed Fixing by screws
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
45mm-60mm
Package Contents:
Concealed Hinges (1 Pair) Screws (16 pcs) Caps(8 pcs)
Downloads

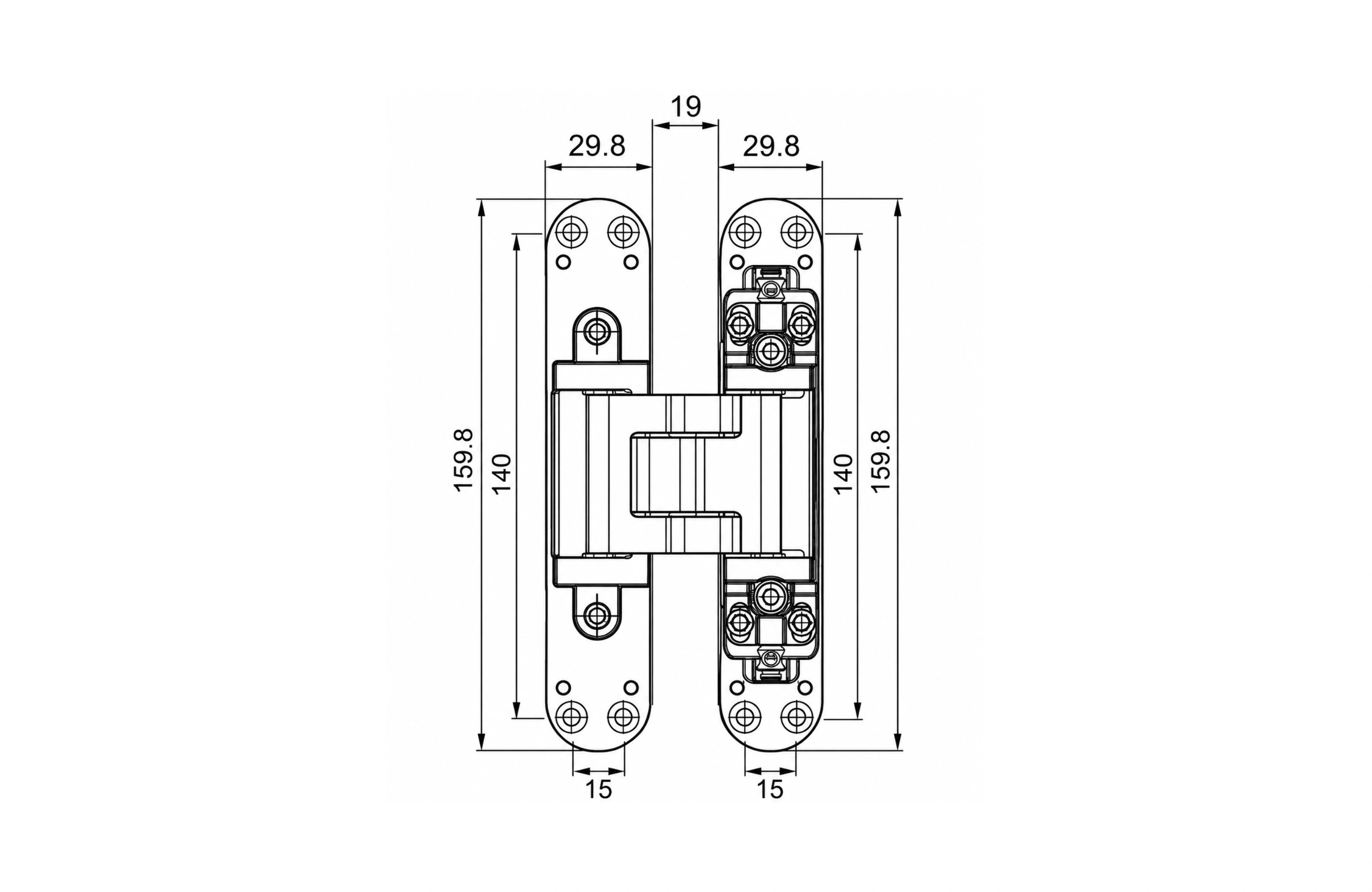

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
