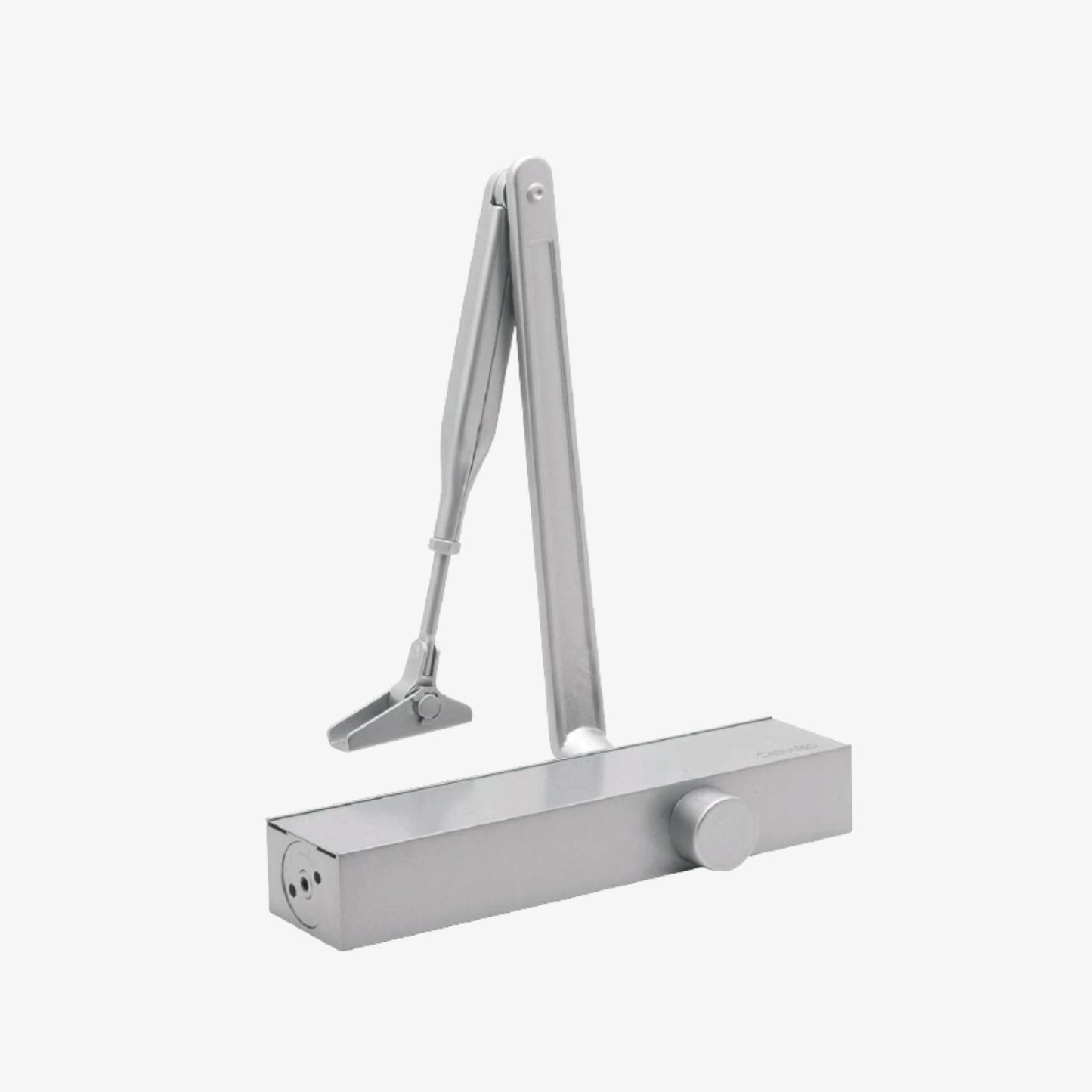

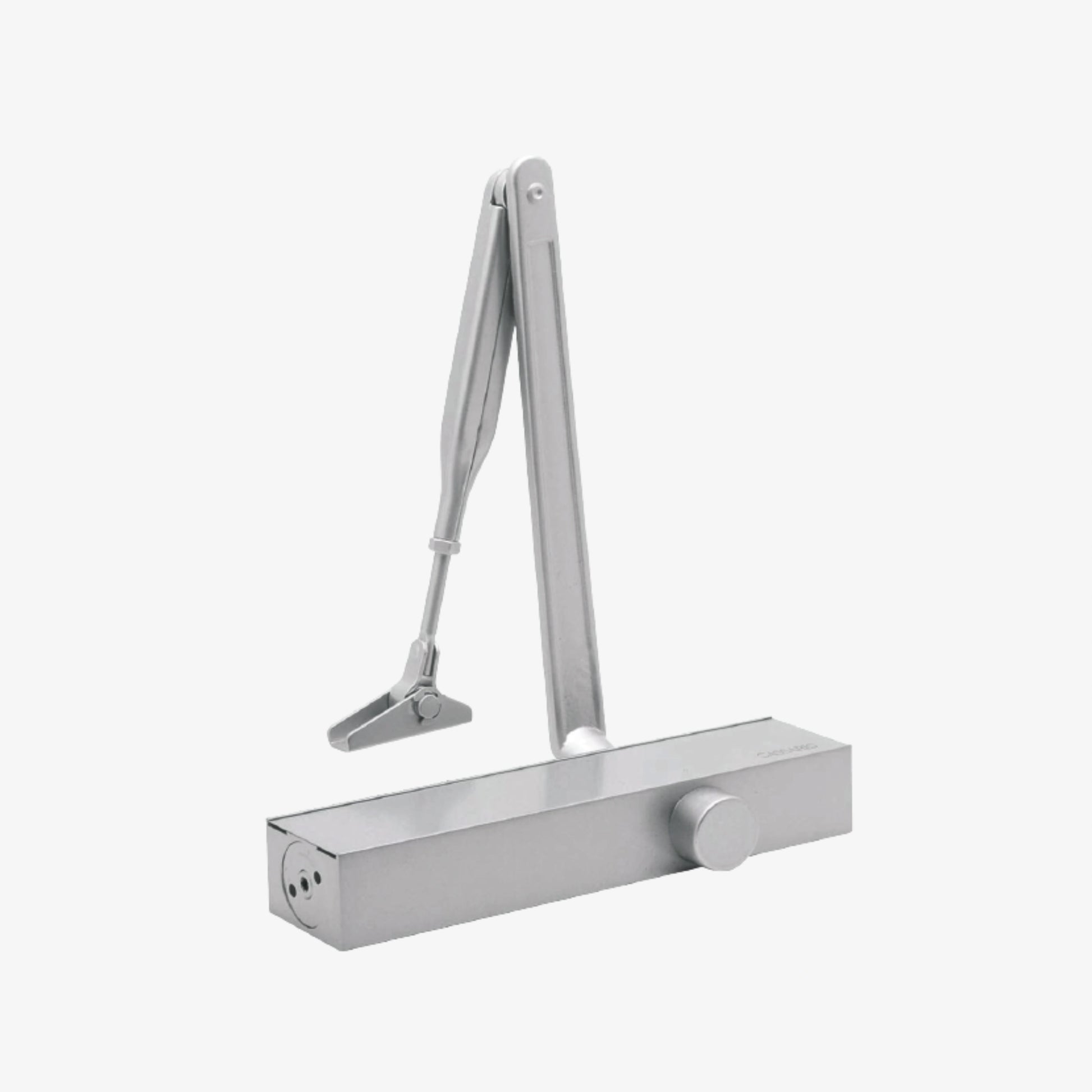

Surface Mount Overhead Door Closer (DC25) With Slide Cover

SKU: 391800100647

The Cassario DC25 is a European-engineered surface-mounted overhead door closer, designed for controlled and reliable door operation across residential and commercial applications. Manufactured in Italy, it delivers consistent performance with a focus on architectural integration and long-term durability.

AED 198
AED 198
MRP is inclusive of all taxes
Color: Silver
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Door Closer
Product Type:
Door Closers
Model:
DC25
Origin:
Italy
Colour:

Designed for heavier doors and wider openings, the Cassario DC25 offers adjustable power from EN 2 to EN 5, allowing precise calibration based on door size and weight. Its integrated slide cover provides a cleaner, more refined appearance while maintaining durability in high-traffic environments.

Tested to BS EN 1154 standards and suitable for fire-rated doors, the DC25 supports door weights up to 110 kg with smooth and controlled closing through adjustable speed and latching functions. The non-handed configuration ensures flexible installation across a wide range of commercial and residential applications.



Core Features

  • Surface-mounted overhead door closer with integrated slide cover for cleaner architectural appearance
  • Adjustable power size EN 2–5 for door widths 850mm–1250mm
  • Suitable for door weights from 45 kg up to 110 kg
  • Rack and pinion mechanism for reliable and consistent operation
  • Adjustable closing speed and latching action for controlled performance
  • Tested to BS EN 1154 and CE marked for compliance and reliability
  • Suitable for fire-rated door applications
  • Non-handed (universal) design for left and right door installation
  • Opening angle up to 180° for flexible application
  • Screw-mounted installation with optional hold-open arm and parallel arm bracket
Specifications
Surface Mount Overhead Door Closer (DC25) With Slide Cover
Size:
EN 2 to 5
Technical
Fire Rating:
90 minutes
Weight Capacity:
110 kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
BS EN 1154
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Closer Machine (1 Nos) Arm Track (1 Nos) Screw (1 Set)
Door Width Compatibility:
40mm-70mm
Downloads

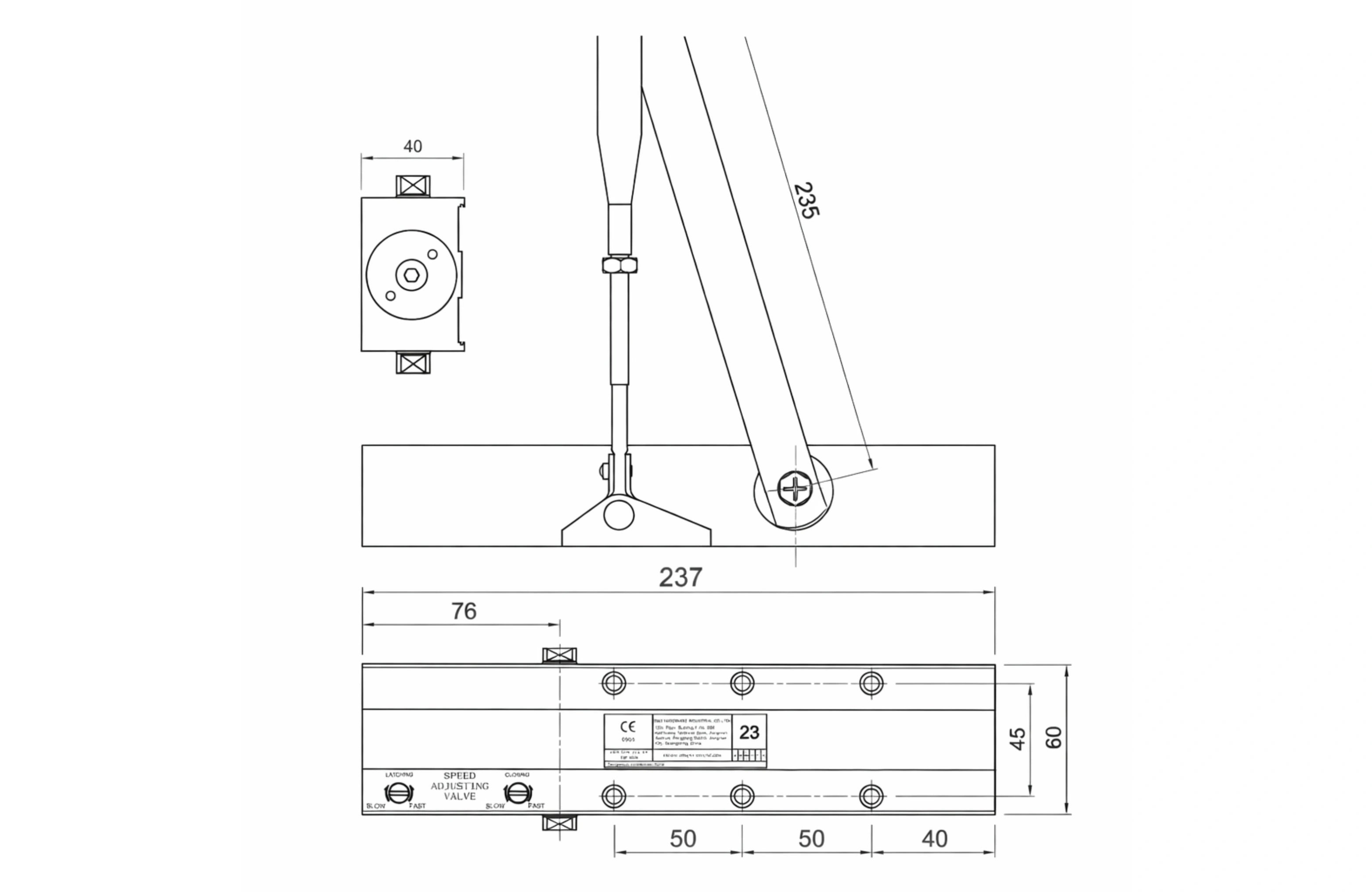

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
