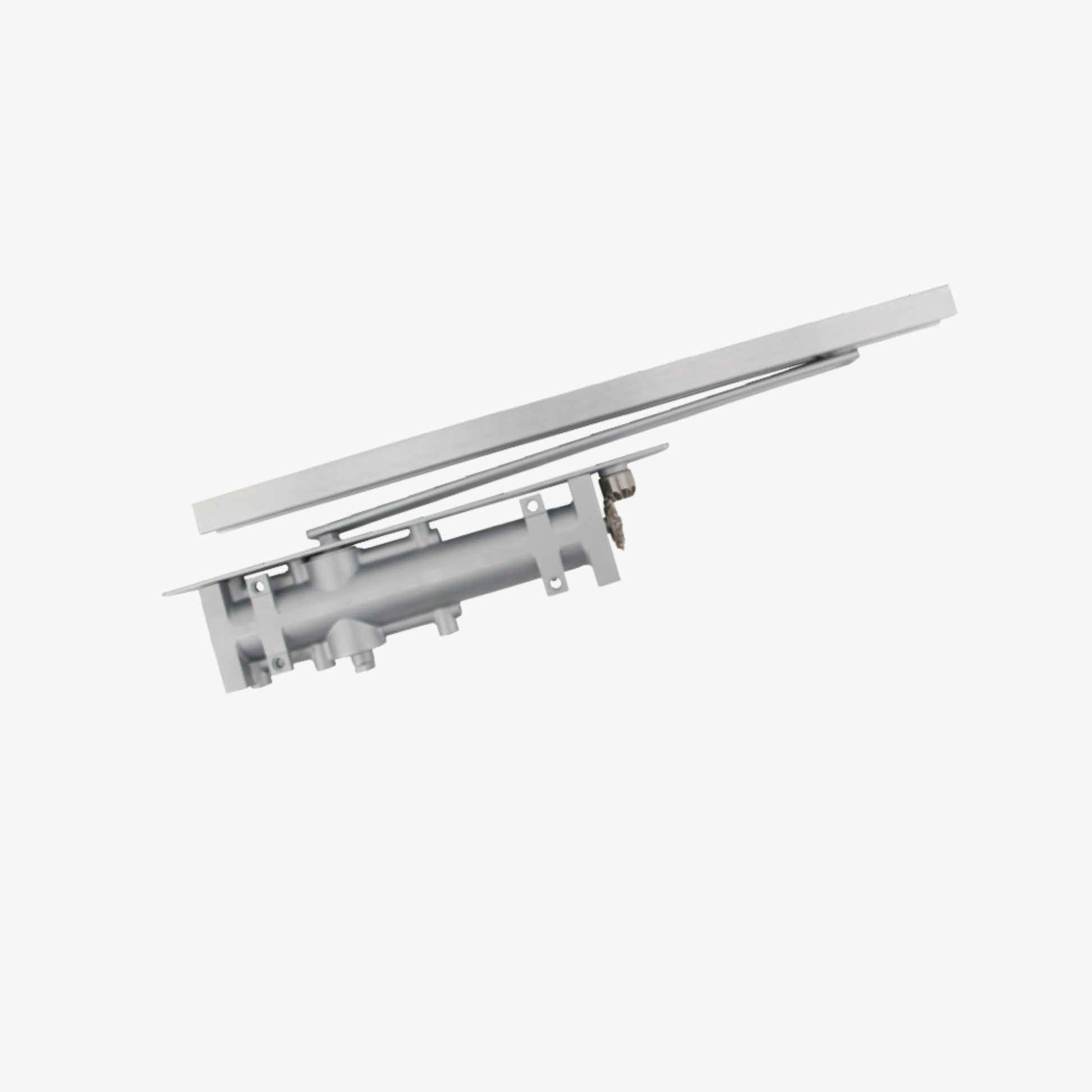

Concealed Overhead Door Closer (CC36)

SKU: 391800100661


The Cassario CC36 is a European-engineered concealed overhead door closer, designed for seamless integration within the door leaf. Manufactured in Italy, it delivers high-performance door control while maintaining a clean, uninterrupted architectural finish.

AED 418
AED 418
MRP is inclusive of all taxes
Color: Silver
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Concealed Door Closer
Product Type:
Door Closers
Model:
CC36
Origin:
Italy
Colour:

Engineered for high-performance and heavy-duty applications, the Cassario CC36 is fully concealed within the door leaf, ensuring that only the guide rail is visible when the door is in operation. This makes it ideal for projects where visual minimalism and architectural consistency are critical.

With adjustable power from EN 3 to EN 6, the CC36 supports doors up to 120 kg while delivering controlled closing through adjustable speed, latching, and backcheck functions. Suitable for doors with a minimum thickness of 40mm, it provides a robust yet discreet solution for premium residential, commercial, and hospitality environments.



Core Features

  • Concealed overhead door closer fully integrated within the door leaf for invisible installation
  • Adjustable power size EN 3–6 for heavy-duty door applications
  • Suitable for door weights up to 120 kg and widths up to 1200mm
  • Rack and pinion mechanism for reliable and consistent performance
  • Adjustable closing speed, latching action, and backcheck for controlled operation
  • Guide rail visible only when door is open for minimal visual impact
  • Suitable for door thickness 40mm and above
  • Non-handed (universal) design for left and right door applications
  • Opening angle up to 120° for controlled movement
  • Hold-open track arm available for functional flexibility
Specifications
Concealed Overhead Door Closer (CC36)
Size:
EN 3 to 6
Technical
Fire Rating:
90 minutes
Weight Capacity:
120 kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
BS EN 1154
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Closer Machine (1 Nos) Arm Track (1 Nos) Screw (1 Set)
Door Width Compatibility:
50mm-70mm
Downloads

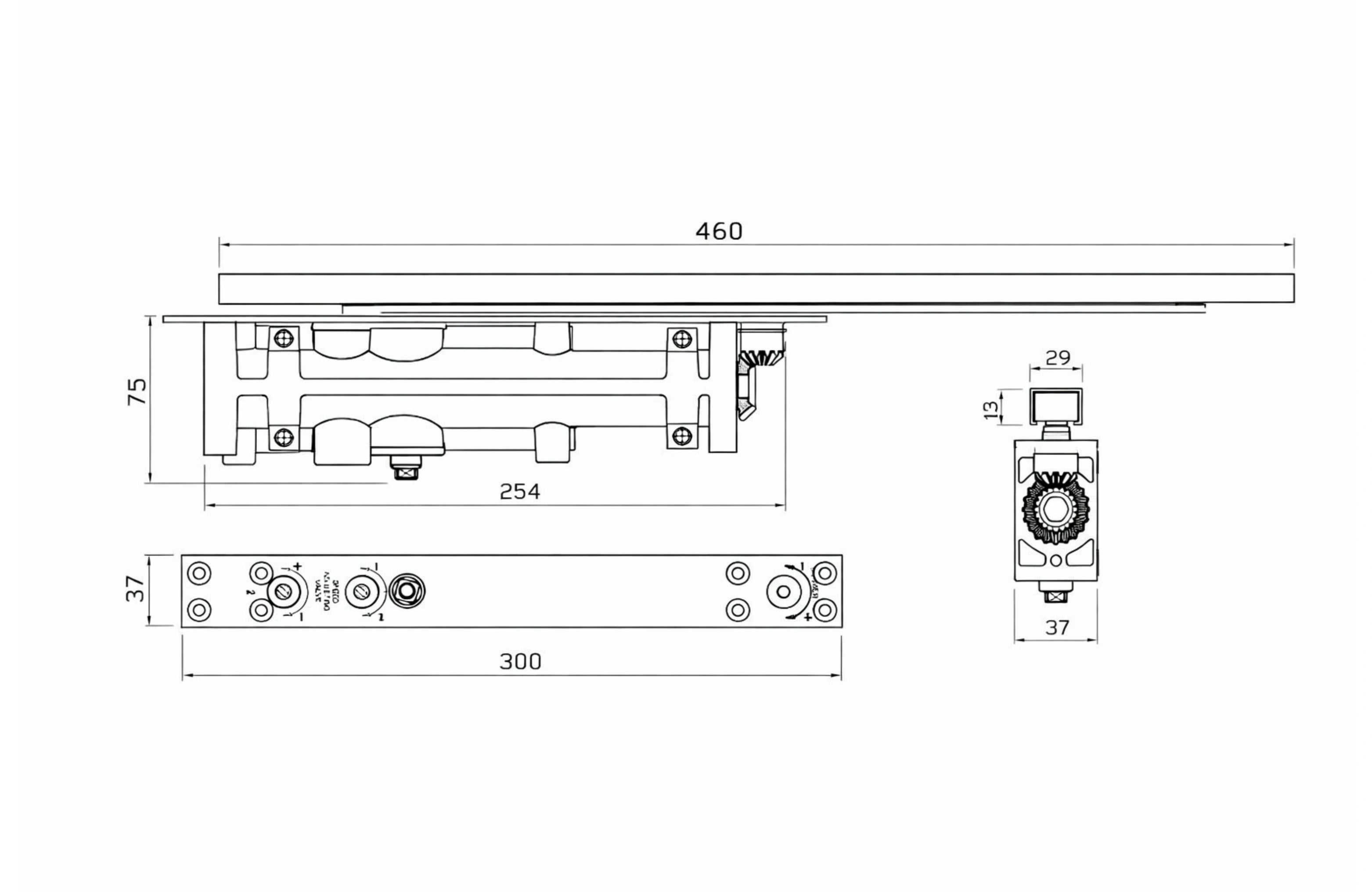

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
