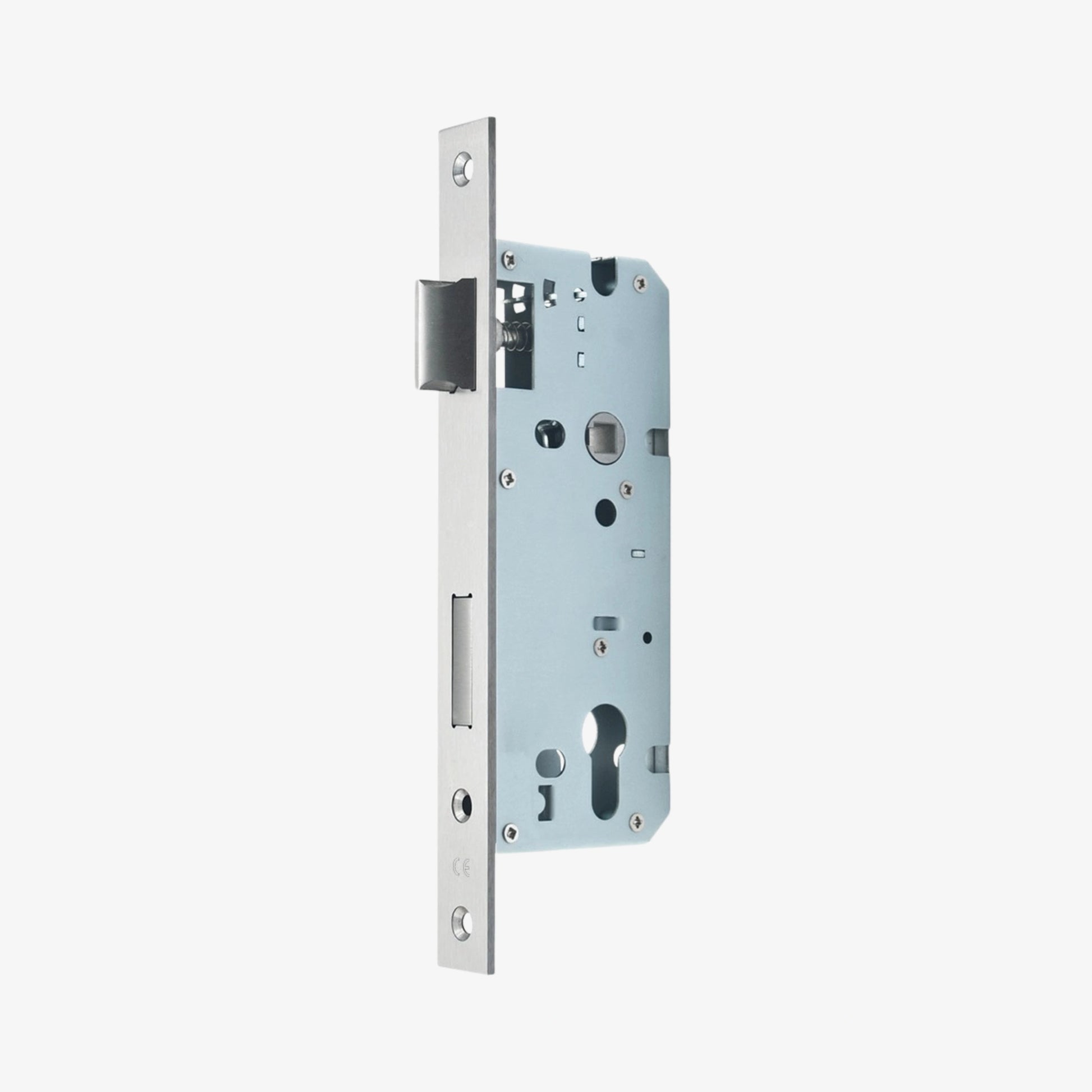

Mortice Sash Lock (MSL4585) 85x45mm

SKU: 391800100400


Cassario Mortice Sash Lock 85mm-45mm Backset SS304 Satin Stainless Steel is a combining latch and deadbolt operation, designed for use with euro profile cylinders. Engineered for consistent performance across residential, hospitality, and commercial door applications.

AED 83
AED 83
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Mortice Lock
Material:
Stainless Steel 304 Grade
Product Type:
Locks & Latches
Model:
Sash Lock
Mounting:
Lockbody Concealed Installation in Door Leaf Edge & Strike Plate in Door Frame
Origin:
Italy
Colour:
Finish:
Satin

The Cassario mortice sash lock is developed as part of a complete architectural hardware system, ensuring compatibility with lever handles, euro profile cylinders, and door configurations. Constructed entirely from SS304, including latch and deadbolt components, it delivers long-term durability, corrosion resistance, and smooth operational performance in high-use environments.

Core Features

  • 45mm backset, 85mm centres
  • SS304 forend, strike plate and follower
  • SS304 latch bolt and SS304 dead bolt
  • Easy reversible latch bolt without tampering with lock mechanism
  • Tested to Grade X: 200,000 test cycles
  • Forend and strike plate available in square or radius
  • Pierced to accept bolt-through furniture and escutcheons at 38mm centres
  • Suitable for 120 min timber and 240 min metal doors
  • Cylinder can withdraw both latch and deadbolt, offering convenience and safety combined with security
  • Supplied with strike plate
  • Two-turn deadbolt extension
Specifications
Mortice Sash Lock (MSL4585) 85x45mm
Dimensions
Length:
45mm
Height:
85mm
Technical
Cycle Test/Grade:
BS EN 12209
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Lockbody (1 nos) Strike Plate (1 nos) Screws (1 set)
Door Width Compatibility:
40mm-55mm
Downloads

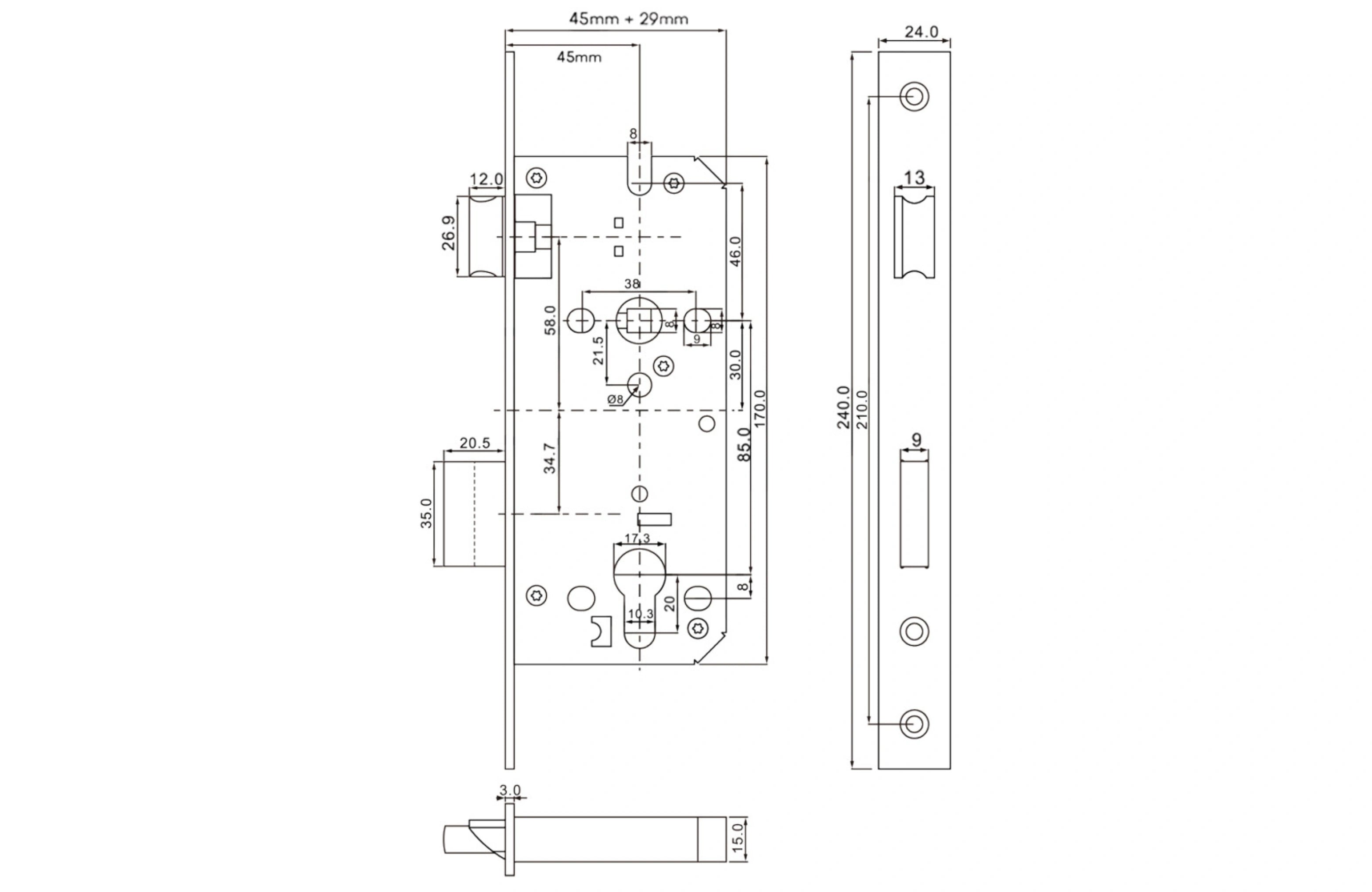

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
