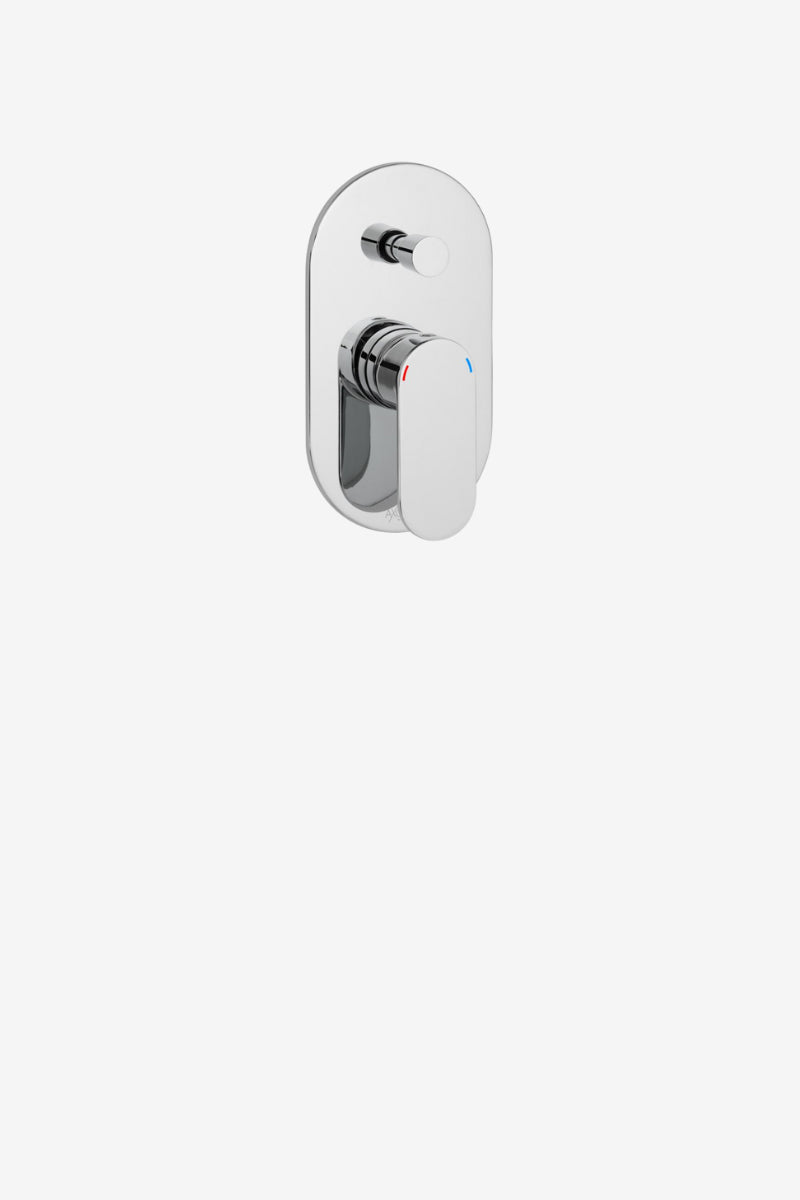

VADO Metiz Chrome Rectangle Wall Mounted Concealed Manual Valve with Diverter 108.5 x 100 x 185 mm

SKU: 390100111829

Concealed manual shower valve with integrated diverter and single lever control. Dual outlets and reliable performance suitable for a range of plumbing systems.

AED 298
AED 298 Exclusive Offer
MRP is inclusive of all taxes
Colour: Chrome
Material
Chat Now My Projects
Recommended Add-ons
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
VADO
Series:
Metiz
Shape:
Rectangle
Mounting:
Wall Mounted
Colour:
Material:

The Metiz Manual Valve with Diverter is a high-quality concealed shower control valve designed for contemporary bathroom installations. Built to provide dependable performance and sleek aesthetics, this valve features a single lever handle for intuitive control of water flow and temperature.

The integrated diverter allows you to switch between two outlets, making it ideal for combinations such as overhead shower and hand shower setups. Constructed with standard 1/2″ female inlets and outlets, the valve delivers versatile compatibility with most shower plumbing systems.

The concealed design ensures a clean, modern look in finished bathrooms, while the durable engineering provides reliable daily performance across a wide range of system pressures.

Key Features

  • Concealed manual shower valve with integrated diverter for dual outlet control

  • Single lever operation for flow and temperature adjustment

  • 2 x 1/2″ female inlets and 2 x 1/2″ female outlets (one blanked off for flexibility)

  • Sleek, minimalist concealed design for modern bathroom aesthetics

  • Wall-mounted installation for a clean finished look

  • Suitable for a range of plumbing systems including gravity, pumped, combi and pressurized systems

Specifications
VADO Metiz Chrome Rectangle Wall Mounted Concealed Manual Valve with Diverter 108.5 x 100 x 185 mm

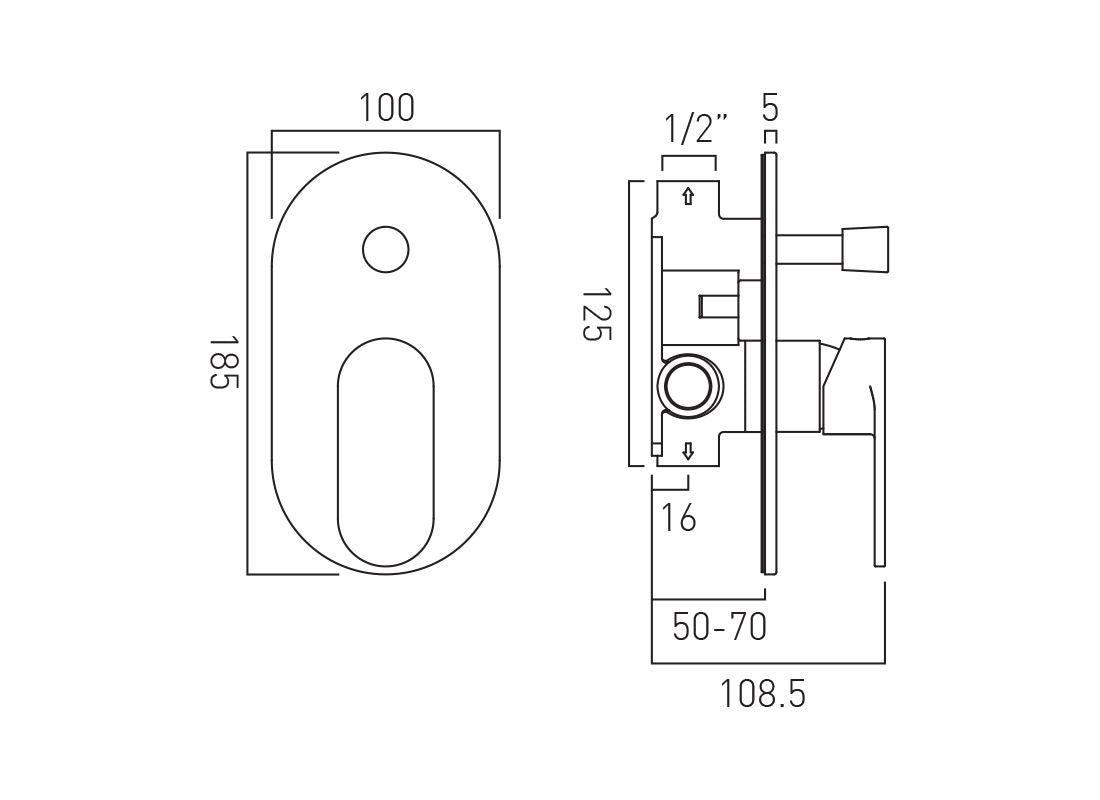

Dimensions
Length:
108.5mm
Width:
100mm
Height:
185mm
Shape:
Rectangle
Technical
Operation Type:
Shower Valve
Operation Pressure (Bar):
MINIMUM OPERATING PRESSURE 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath) / MAXIMUM OPERATING PRESSURE 5.0 Bar HP
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
