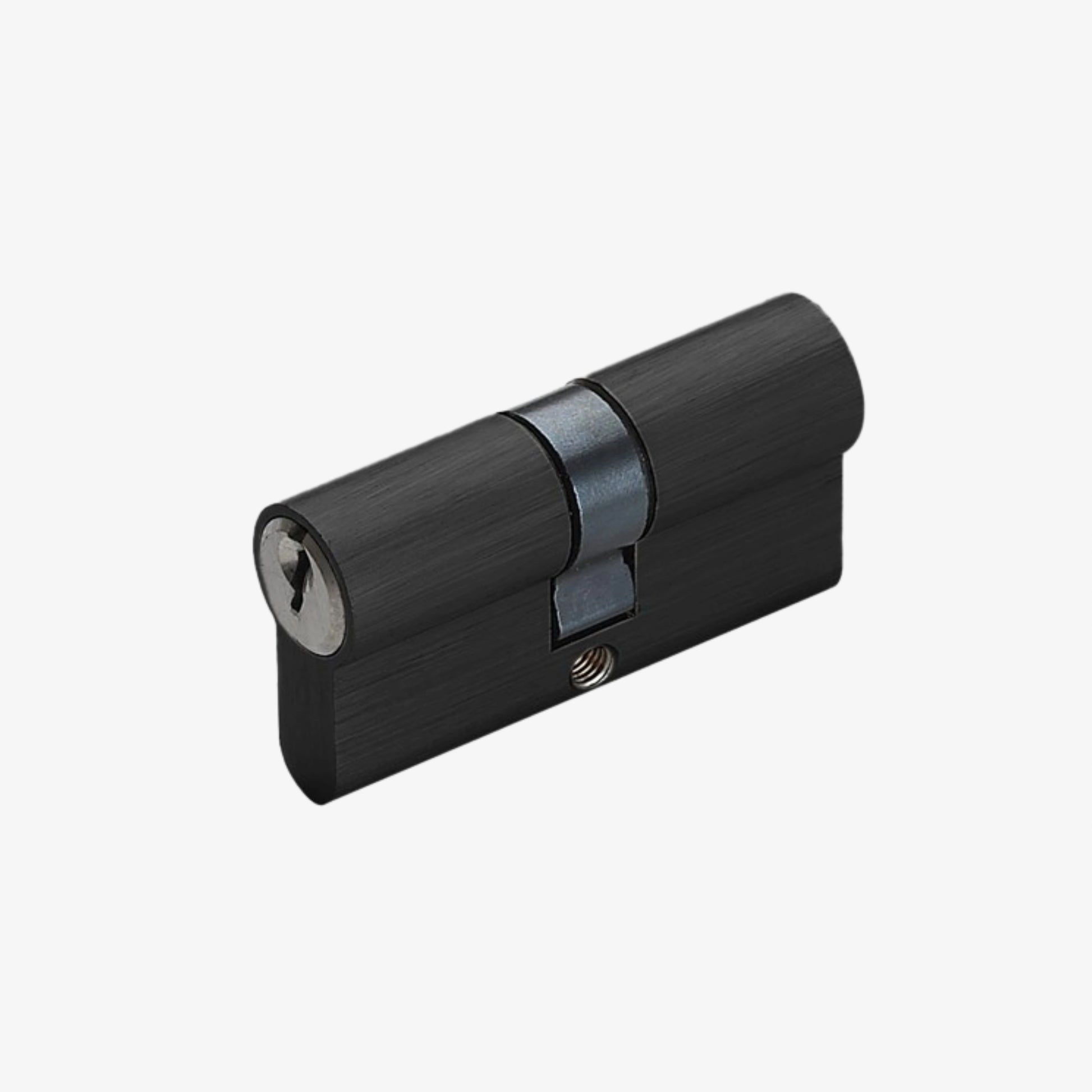

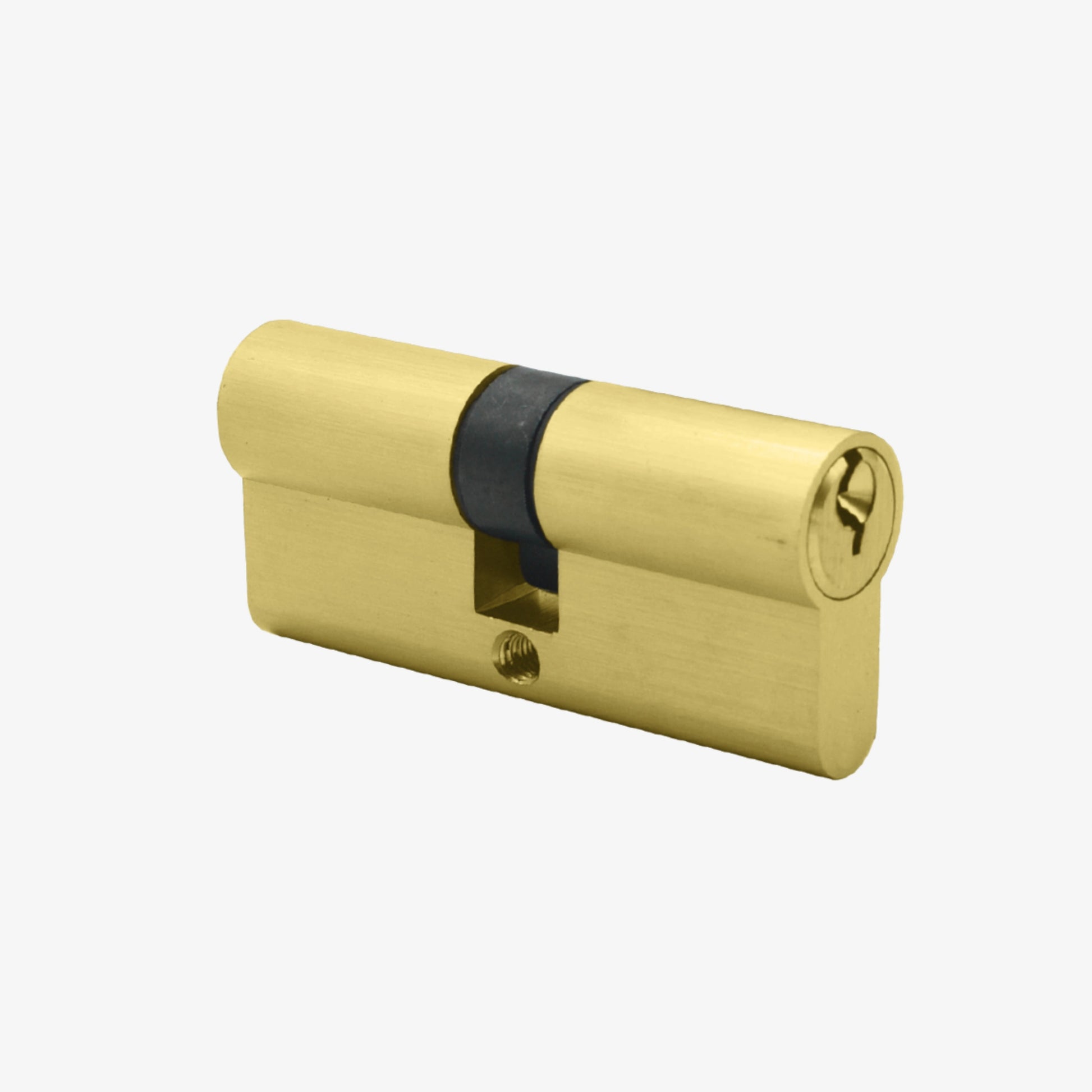

Cassario Euro Profile Double Cylinder 6 Pin, 70mm

SKU: 391800100452

A Cassario euro profile double cylinder, precision-machined from solid brass and conforming to BS EN 1303. Part of the Cassario architectural hardware system engineered in Italy for specification-led residential, hospitality, and commercial projects. Designed for double-sided key access, suited to entrance doors, communal access points, and any application requiring keyed operation from both sides.

AED 42
AED 42
MRP is inclusive of all taxes

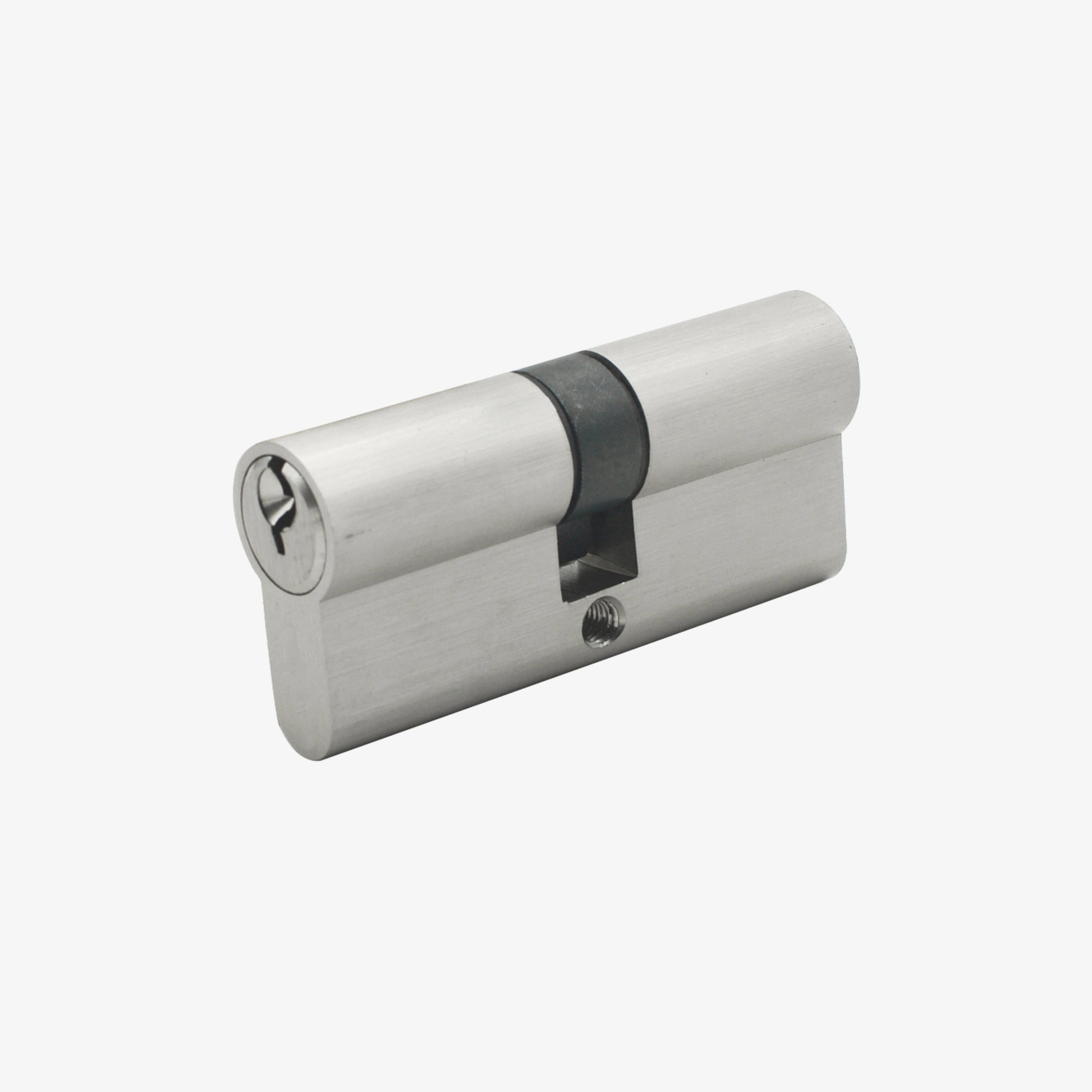

Color: Satin Nickel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Key + Key Cylinder
Material:
Solid Brass
Product Type:
Cylinders
Origin:
Italy
Colour:

The Cassario Euro Profile Double Cylinder delivers reliable key operation from both sides within a solid brass 70mm body. The 6-pin tumbler system provides consistent resistance to picking and bumping, while the 30-degree angle offset cam actively inhibits knock-through attack — maintaining security performance across the full service life of the door.

Conforming fully to BS EN 1303:2015, the cylinder is supplied with three 2.2mm keys and is available across a wide range of equal and unequal sizes. Compatible with master key suite configurations upon request, it integrates cleanly into the Cassario cylinder system for coordinated ironmongery schedules across any project scale.



CORE FEATURES

  • Euro profile double cylinder with double-sided key operation
  • Solid brass body for structural integrity and long-term durability
  • 6-pin tumbler system for reliable pick and bump resistance
  • 30-degree angle offset cam actively inhibits knock-through attack
  • Specially treated brass springs for consistent and lasting pin tension
  • Supplied with three 2.2mm keys as standard
  • Available in equal and unequal size configurations
  • Master key suite compatible — available upon request
  • Conforms to BS EN 1303:2015
  • Suitable for 90-minute fire-rated door assemblies
  • Country of origin: Italy
Specifications
Cassario Euro Profile Double Cylinder 6 Pin, 70mm
Size:
70 mm
Technical
Fire Rating:
90 minutes
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Cylinder(1 Nos) Keys Set (3 pcs) Screw (1 Pcs)
Door Width Compatibility:
50mm-55mm
Downloads

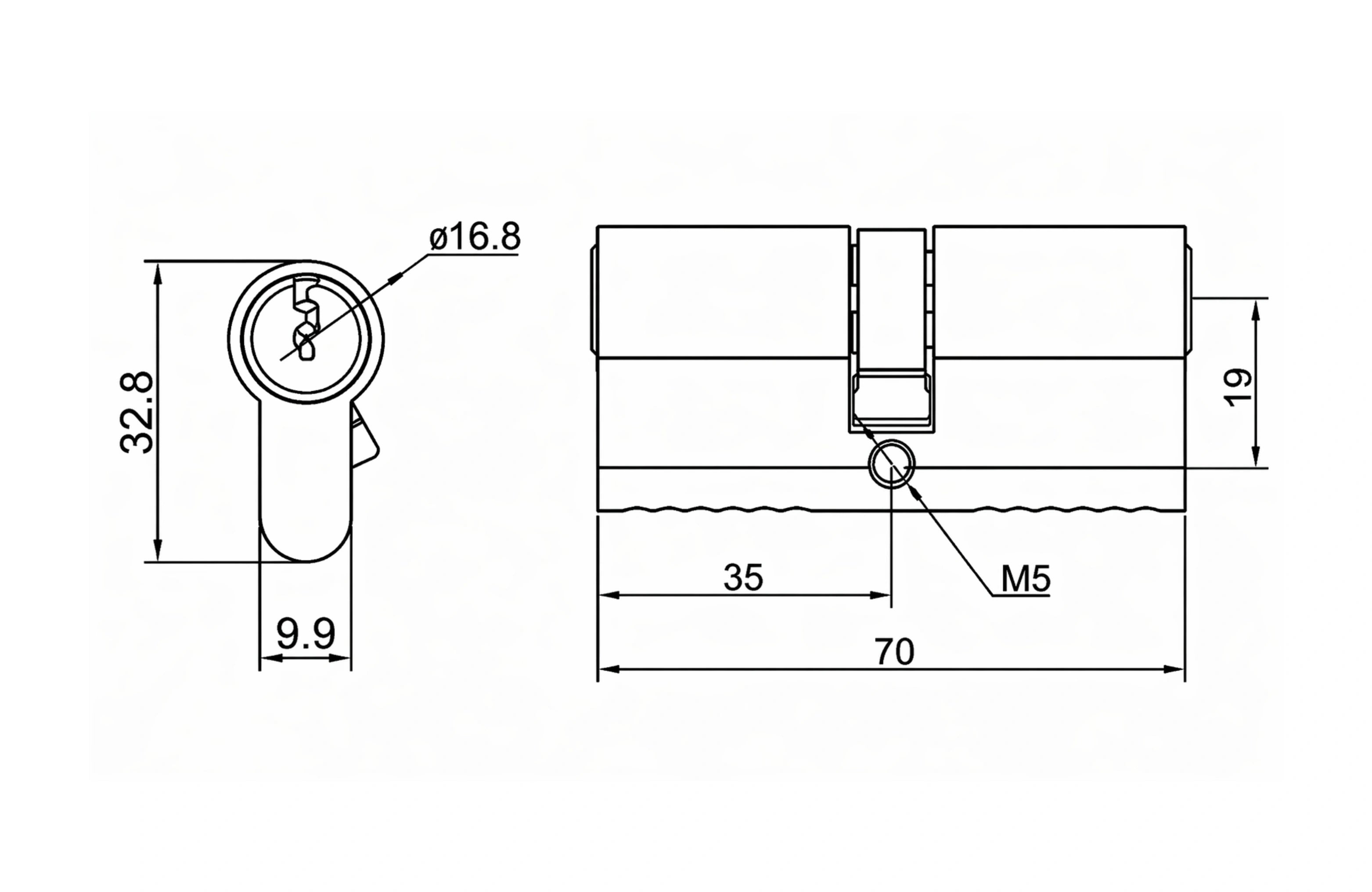

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
