VADO Elements Round Wall Mounted Thermostatic DX Valve 2-Outlet 2-Handle 95 x 196 x 196 mm

SKU: 390100107297

Thermostatic 2-outlet DX valve with dual handles, concealed vertical design, bleed valve, and Studfast compatibility. Ideal for modern shower systems.

AED 2,293
AED 2,293 Exclusive Offer
MRP is inclusive of all taxes

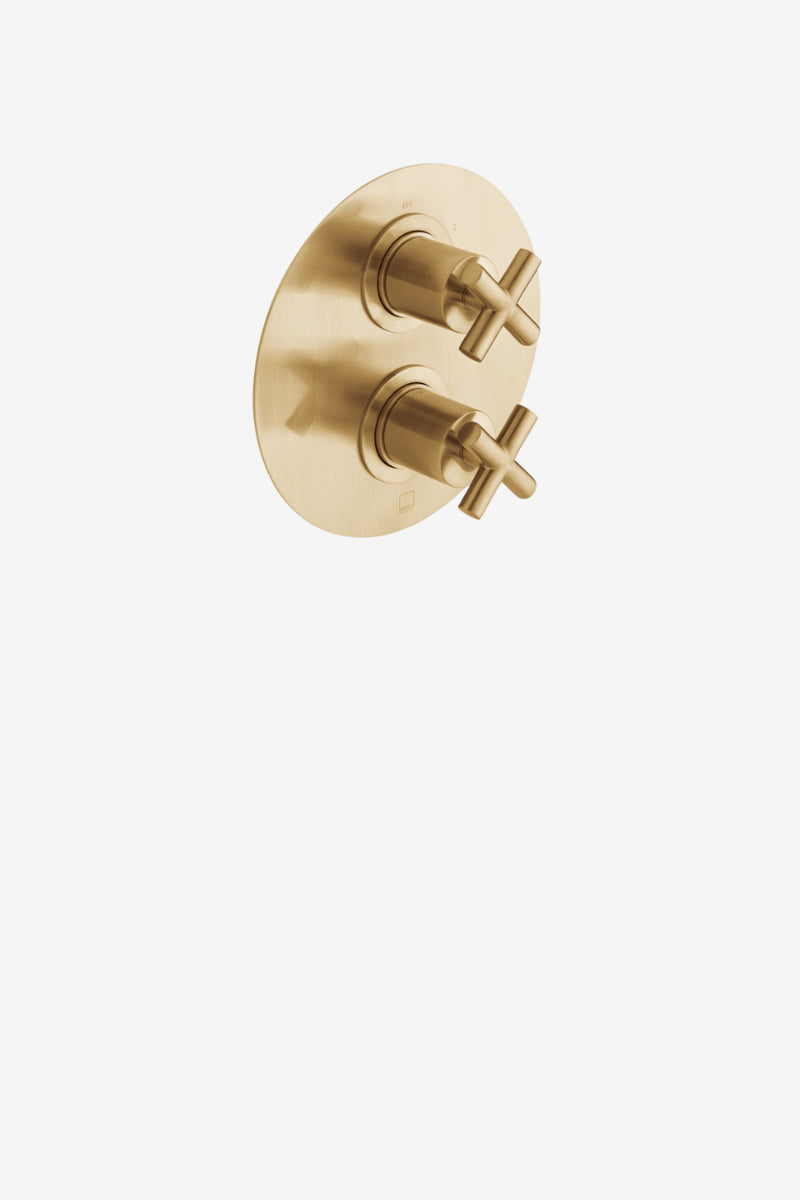

Colour: Brushed Gold
Material
Chat Now My Projects
Recommended Add-ons
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
VADO
Series:
Elements
Shape:
Round
Mounting:
Wall Mounted
Colour:
Material:

The Element Thermostatic DX-Valve – 2 Outlet, 2 Handle is a sophisticated, high-performance control solution for modern bathrooms. Part of the Elements Collection, this concealed valve offers premium engineering and a sleek vertical layout that blends seamlessly into contemporary shower spaces.

Equipped with advanced thermostatic technology, the valve maintains a consistent and safe water temperature, ensuring a comfortable showering experience every time. With two outlets and dual handles, users can easily adjust both flow and temperature independently.

Designed with professional installation in mind, this valve includes a mortar/tile guard, bleed valve for system flushing, and Stud fast compatibility for secure mounting and precise alignment.

Suitable for gravity-fed, pumped, combination boiler, and pressurized systems, it delivers reliable performance under varied plumbing conditions.

Key Features

  • Concealed vertical design for a clean, modern look

  • Two outlets with independent dual-handle control

  • Thermostatic technology ensures safe, stable temperature regulation

  • Includes mortar/tile guard for accurate installation

  • Bleed valve allows flushing of the system during installation

  • Stud fast compatible for secure, precise fitting

  • Durable construction for long-lasting performance

  • Suitable for gravity, pumped, combi, and pressurized systems

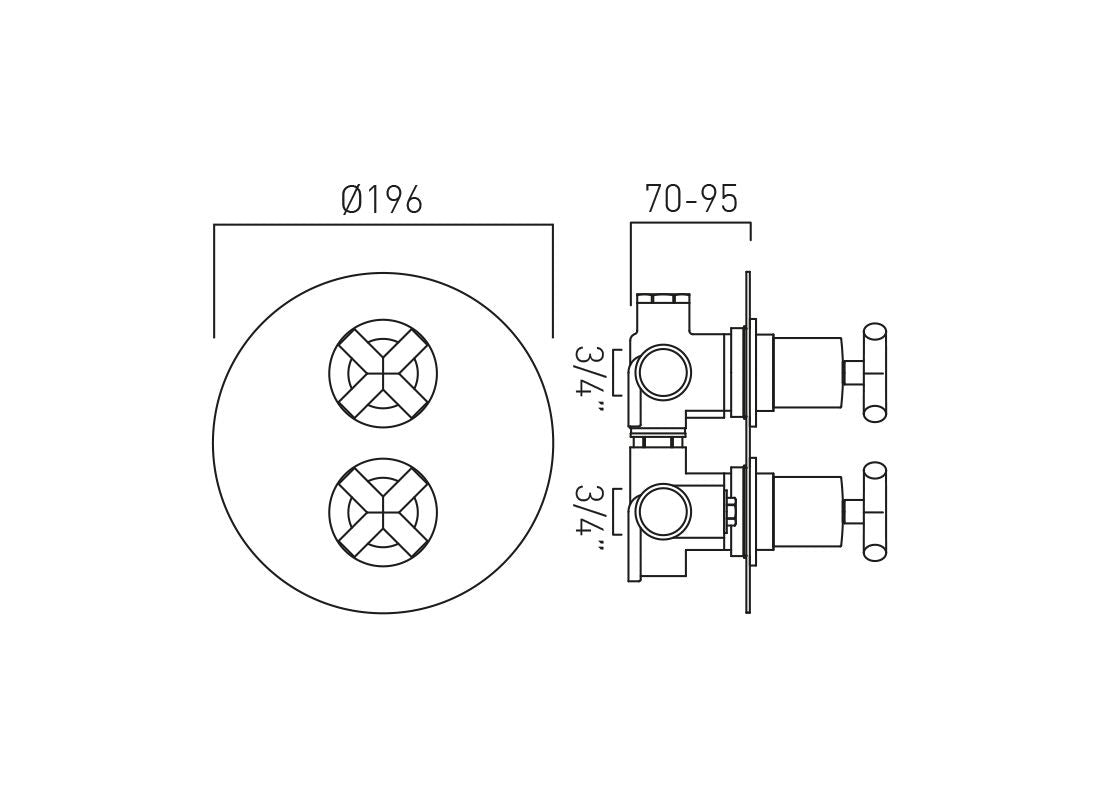

Specifications
VADO Elements Round Wall Mounted Thermostatic DX Valve 2-Outlet 2-Handle 95 x 196 x 196 mm
Dimensions
Length:
70-95mm
Width:
196mm
Height:
196mm
Shape:
Round
Technical
Operation Pressure (Bar):
MINIMUM OPERATING PRESSURE 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath) / MAXIMUM OPERATING PRESSURE 5.0 Bar HP
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet Installation Guidelines
