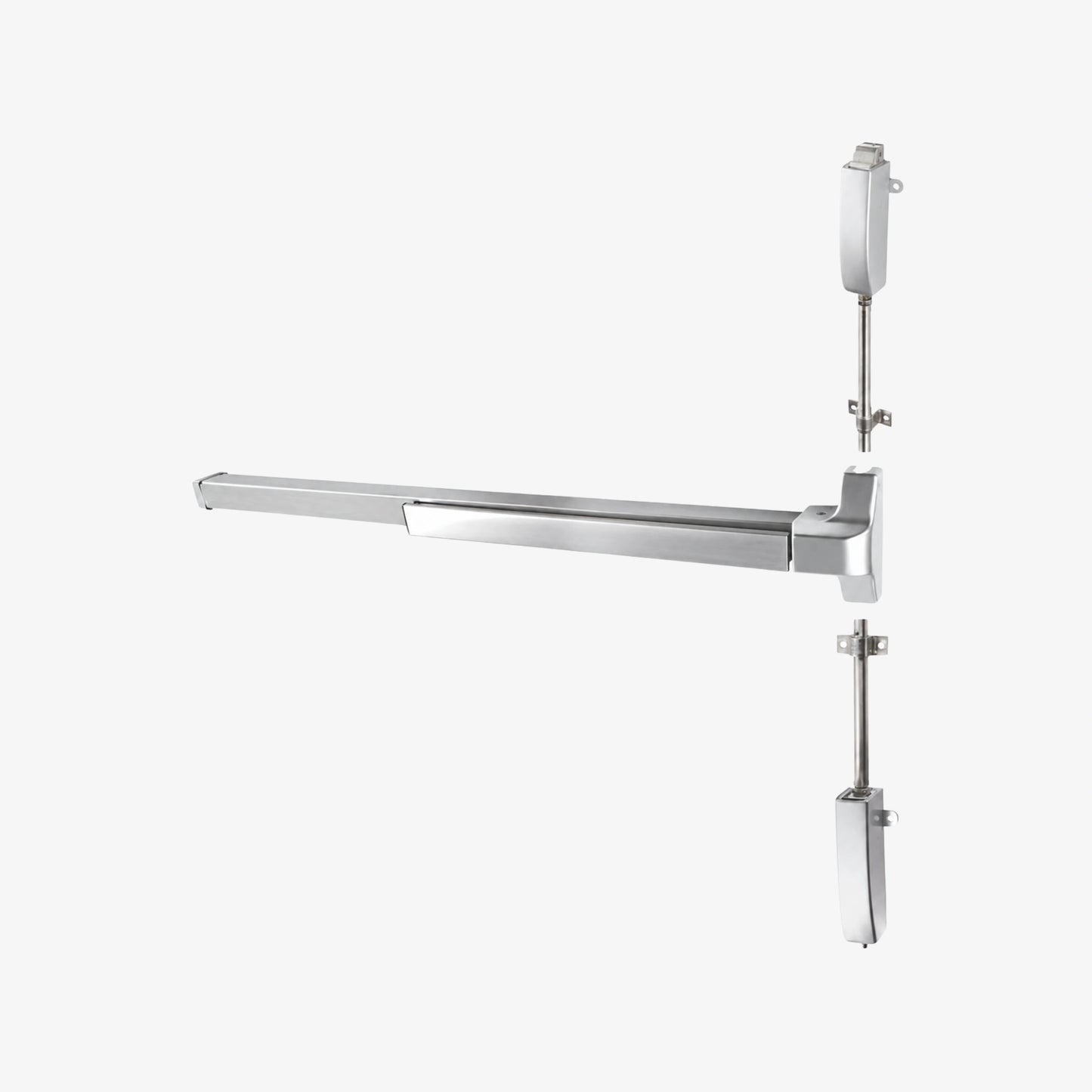

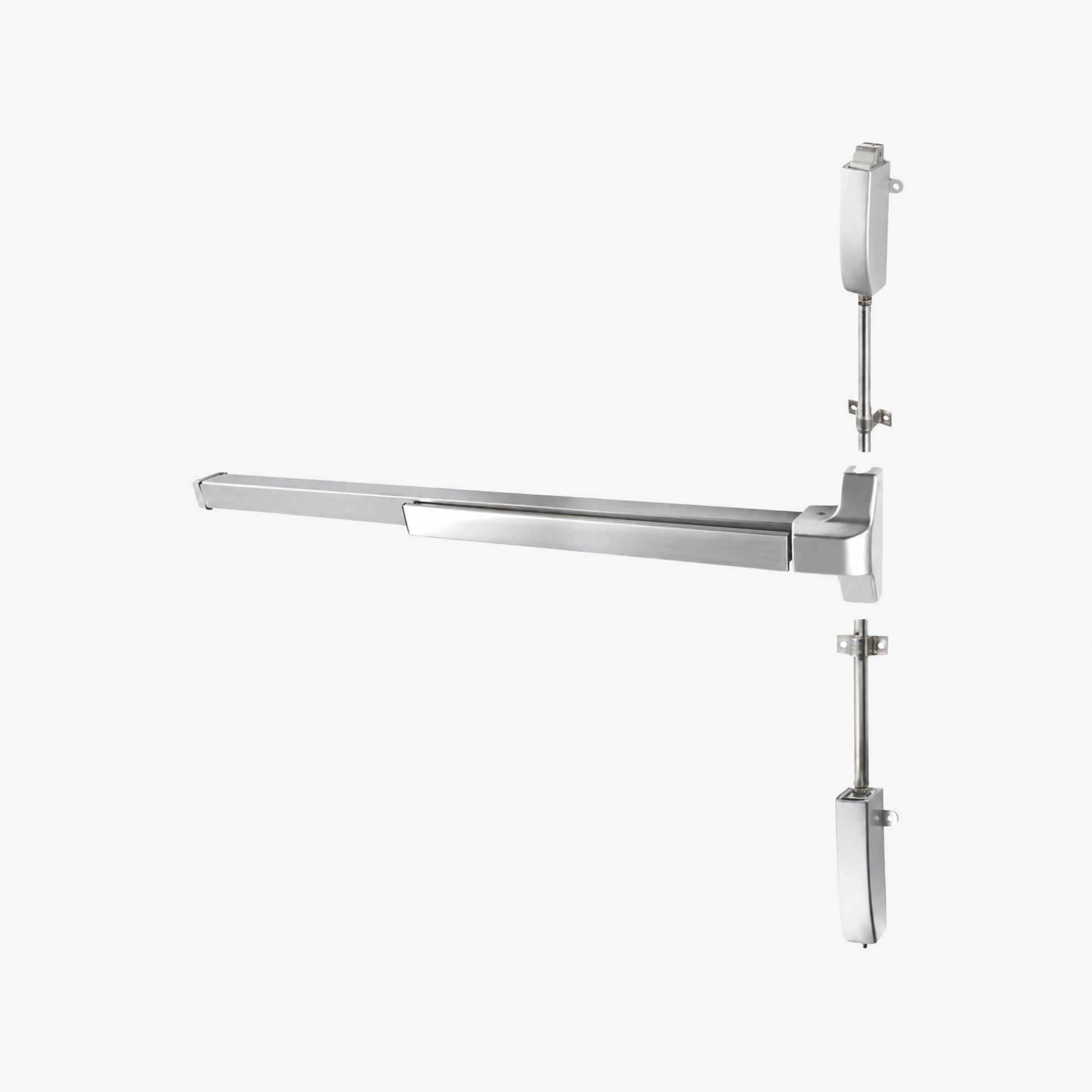

Cassario Rim Touch Bar Panic Bolt PB02-S, Satin Stainless Steel

SKU: 391800100685

The CASSARIO PB02-S Rim Touch Bar Panic Bolt is specified for emergency exit doors requiring double-point locking with immediate touch-bar release. Its field-cuttable 1045 mm bar, non-handed configuration, and suitability for timber and steel fire-rated doors make it a practical solution for commercial and public building schedules where emergency egress performance and specification clarity are required.

AED 378
AED 378
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Panic Bolt
Material:
Solid Brass
Product Type:
Panic Exit Devices
Origin:
China
Colour:

The CASSARIO PB02-S Rim Touch Bar Panic Bolt is an emergency exit device designed for controlled and immediate egress in commercial, public, hospitality, and project environments. Supplied in a standard 1045 mm length, the touch bar can be field cut to suit door widths from 650 mm to 1100 mm.

Unlike the PB01-S panic latch, this model is configured with double-point locking, using vertical locking points for enhanced door control. The unit is non-handed, suitable for single and double doors, and specified for use on timber and steel fire-rated doors.



Core Features

  • Rim touch bar panic bolt
  • Model reference: PB02-S
  • SKU: 391800100685
  • Standard bar length: 1045 mm
  • Field-cuttable to suit opening width
  • Suitable door width: 650–1100 mm
  • Double-point locking
  • Suitable for single and double doors
  • Non-handed installation
  • Fire rated for timber and steel doors
  • Immediate exit when the bar is pressed
  • Satin Stainless Steel finish
  • TDS references BS EN 1125, CE marking, fire-rated use, and 5-year mechanical warranty
Specifications
Cassario Rim Touch Bar Panic Bolt PB02-S, Satin Stainless Steel
Technical
Fire Rating:
BS EN 1125
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
45mm-55mm
Package Contents:
Panic Bolt (2 Piece) Screws (2 Set)
Downloads

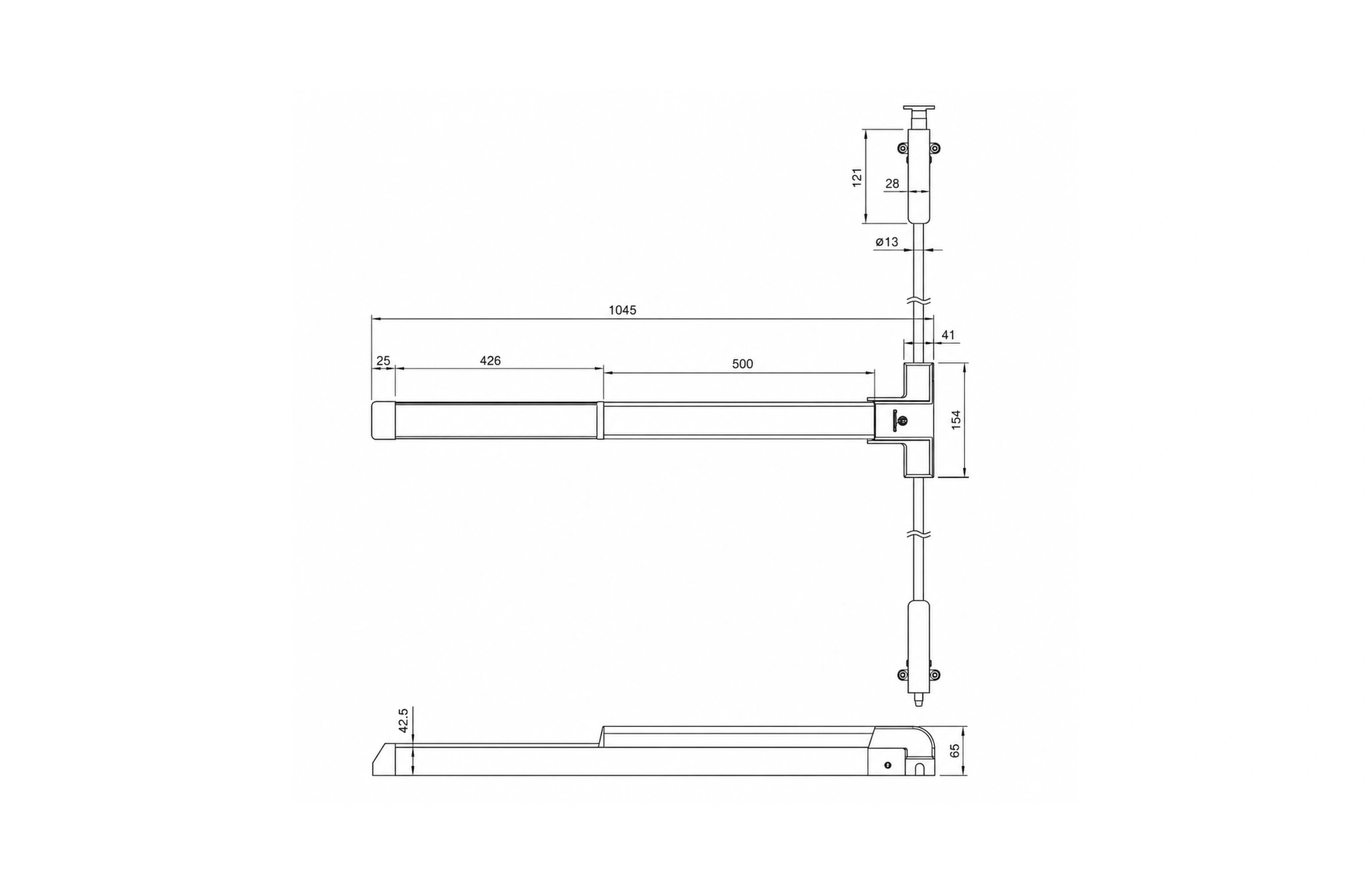

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
