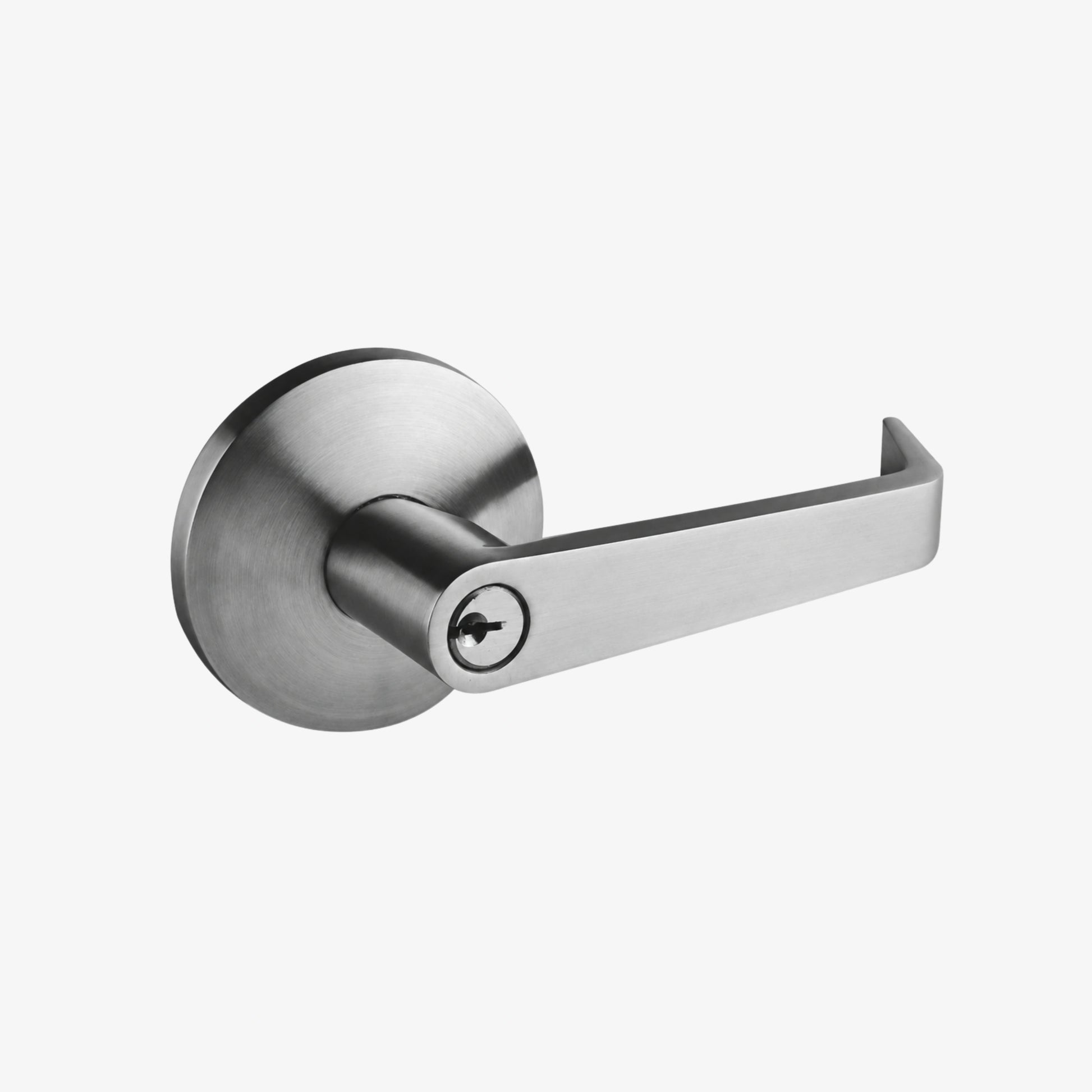

Cassario ET03 External Trim for Panic Bar with 3 Keys Satin Stainless Steel

SKU: 391800100688

The CASSARIO ET03 External Trim provides exterior-side operation for compatible panic bar exit devices. Supplied with a keyed cylinder and three keys, it enables authorised entry from outside while preserving the emergency exit function from inside. Its non-handed design and Satin Stainless Steel finish make it suitable for coordinated commercial and project door schedules.

AED 126
AED 126
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
External Trim
Material:
Solid Brass
Product Type:
Panic Exit Devices
Origin:
China
Colour:

The CASSARIO ET03 External Trim is designed for panic bar exit doors requiring controlled access from the exterior side. The lever trim allows authorised personnel to operate the panic bar from outside when unlocked, while the internal panic bar continues to provide emergency egress from the inside.

Supplied with a keyed cylinder and three keys, the ET03 is suitable for commercial, public, and service doors where external access control is required without compromising escape functionality.



Core Features

  • External lever trim for panic bar exit devices
  • SKU: 391800100688
  • Supplied with keyed cylinder and 3 keys
  • Allows controlled access from exterior side
  • Maintains emergency egress function from interior side
  • Compatible with most standard panic bar devices
  • Non-handed configuration
  • Satin Stainless Steel finish

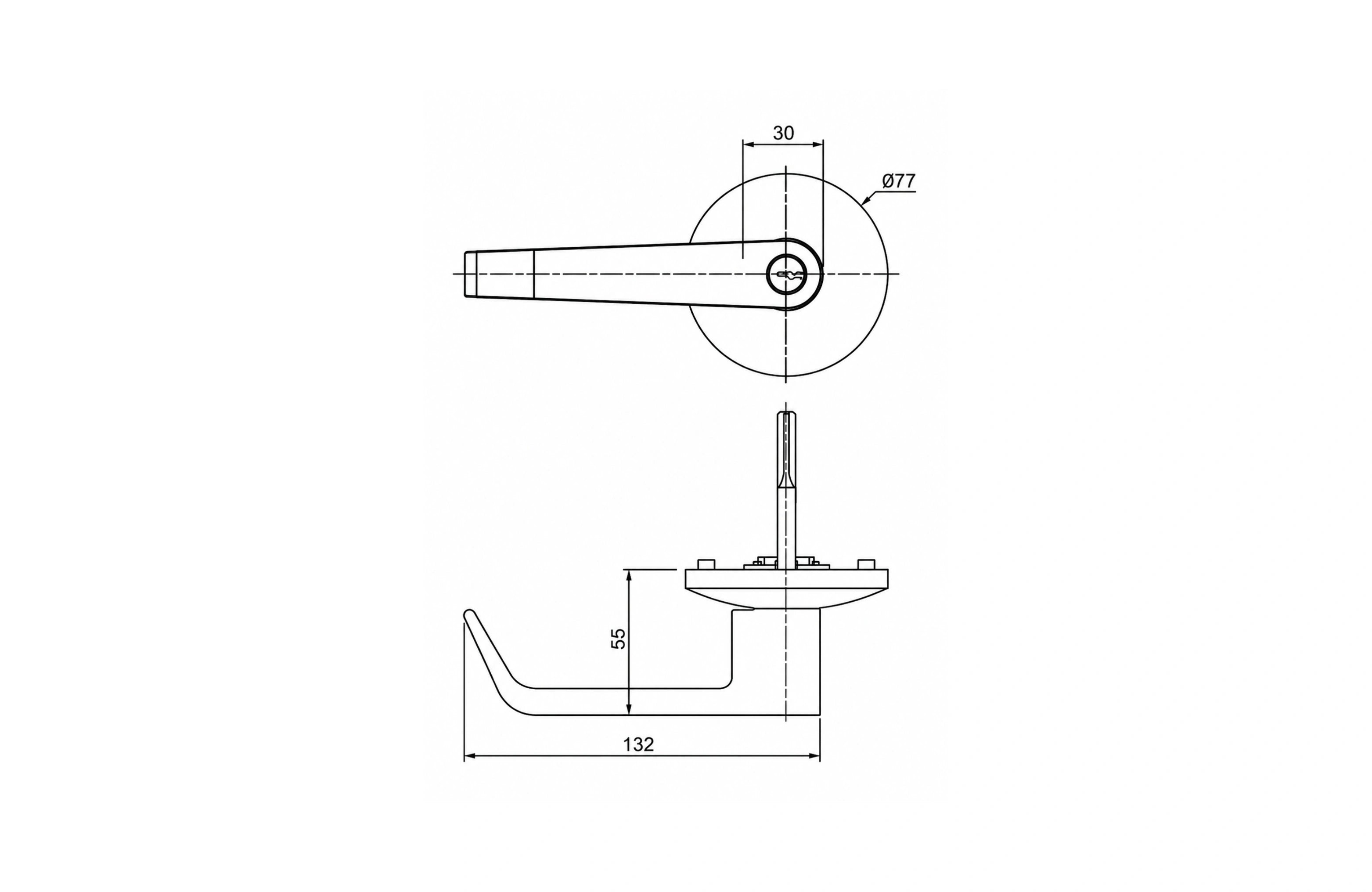

  • Rose diameter shown on drawing: Ø77 mm
  • Lever projection shown on drawing: 132 mm
  • Vertical lever clearance shown on drawing: 55 mm
Specifications
Cassario ET03 External Trim for Panic Bar with 3 Keys Satin Stainless Steel
Technical
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
45mm-55mm
Package Contents:
External Handle with Round Plate (1 Nos) Screws (1 Set)
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
