Euro Profile Privacy Cylinder with Thumb Turn & Emergency Release 70mm

SKU: 391800100485


A Cassario euro profile privacy cylinder, precision-machined from solid brass and conforming to BS EN 1303. Part of the Cassario architectural hardware system engineered in Italy for specification-led residential, hospitality, and commercial projects. Designed for privacy applications requiring internal thumb turn operation with external emergency release access.

AED 53
AED 53
MRP is inclusive of all taxes

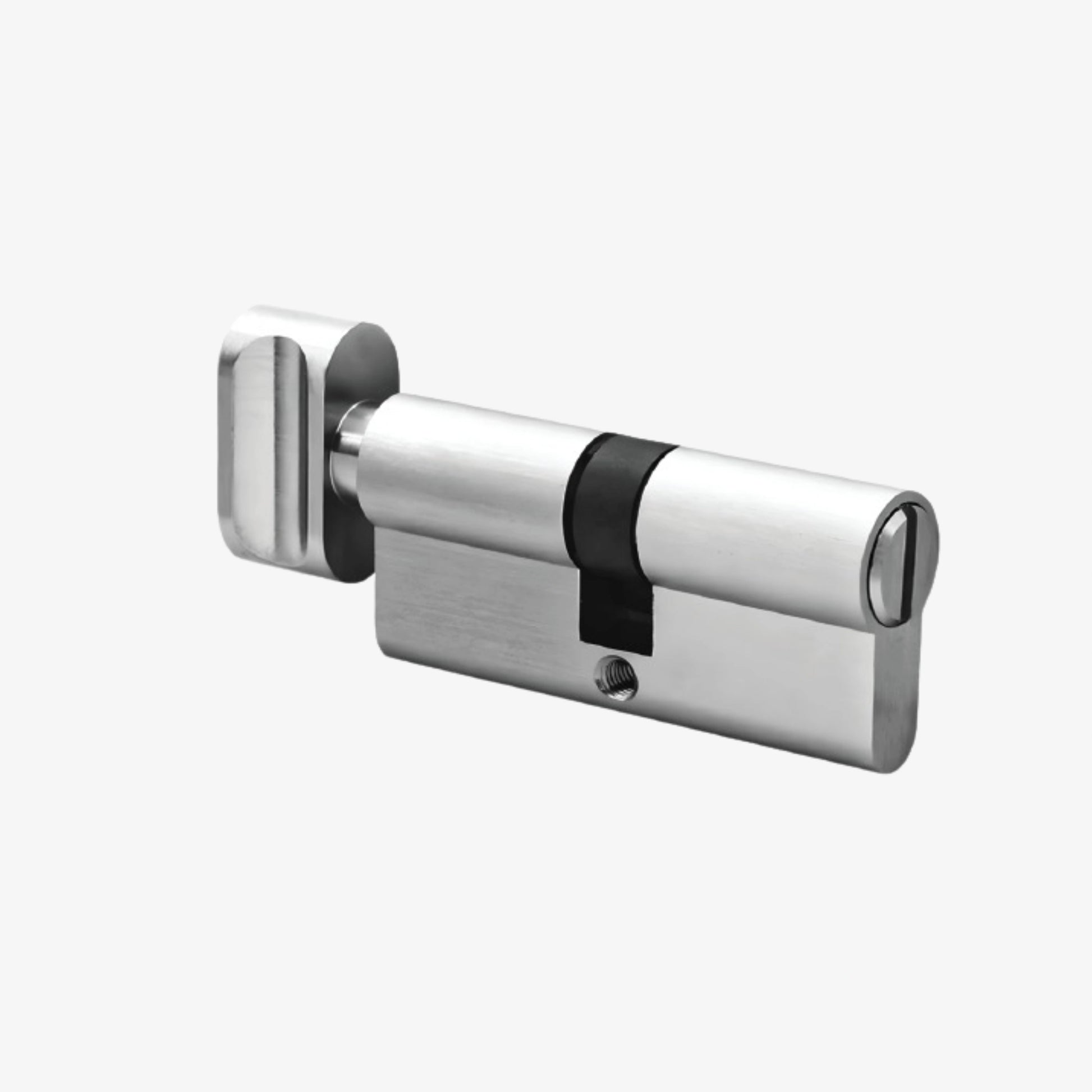

Color: Satin Nickel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Key + Emergency release Cylinder
Material:
Solid Brass
Product Type:
Cylinders
Origin:
Italy
Colour:

The Cassario Euro Profile Privacy Cylinder combines internal thumb turn convenience with external emergency release functionality in a single solid brass body. The 6-pin tumbler system and 30-degree angle offset cam deliver consistent resistance to knock-through, while the thumb turn allows tool-free locking and unlocking from the interior side.

Conforming fully to BS EN 1303:2015, the cylinder is suited to bathroom, bedroom, and any privacy-critical door application across residential, hospitality, and commercial developments. The emergency release function ensures access can be gained from the exterior in the event of an emergency, making it a responsible and specification-compliant choice for any project.



CORE FEATURES

  • Euro profile privacy cylinder with thumb turn and emergency release
  • Solid brass body for structural integrity and long-term durability
  • 6-pin tumbler system for reliable security performance
  • 30-degree angle offset cam actively inhibits knock-through attack
  • Specially treated brass springs for consistent and lasting pin tension
  • Internal thumb turn for tool-free locking and unlocking
  • External emergency release for safe access in emergency situations
  • Conforms to BS EN 1303:2015
  • Suitable for 90-minute fire-rated door assemblies
  • Country of origin: Italy
Specifications
Euro Profile Privacy Cylinder with Thumb Turn & Emergency Release 70mm
Size:
70 mm
Technical
Fire Rating:
90 minutes
Mounting Type:
Mounted by Screws
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Cylinder(1 Nos) Keys Set (3 pcs) Screw (1 Pcs)
Door Width Compatibility:
50mm-55mm
Downloads

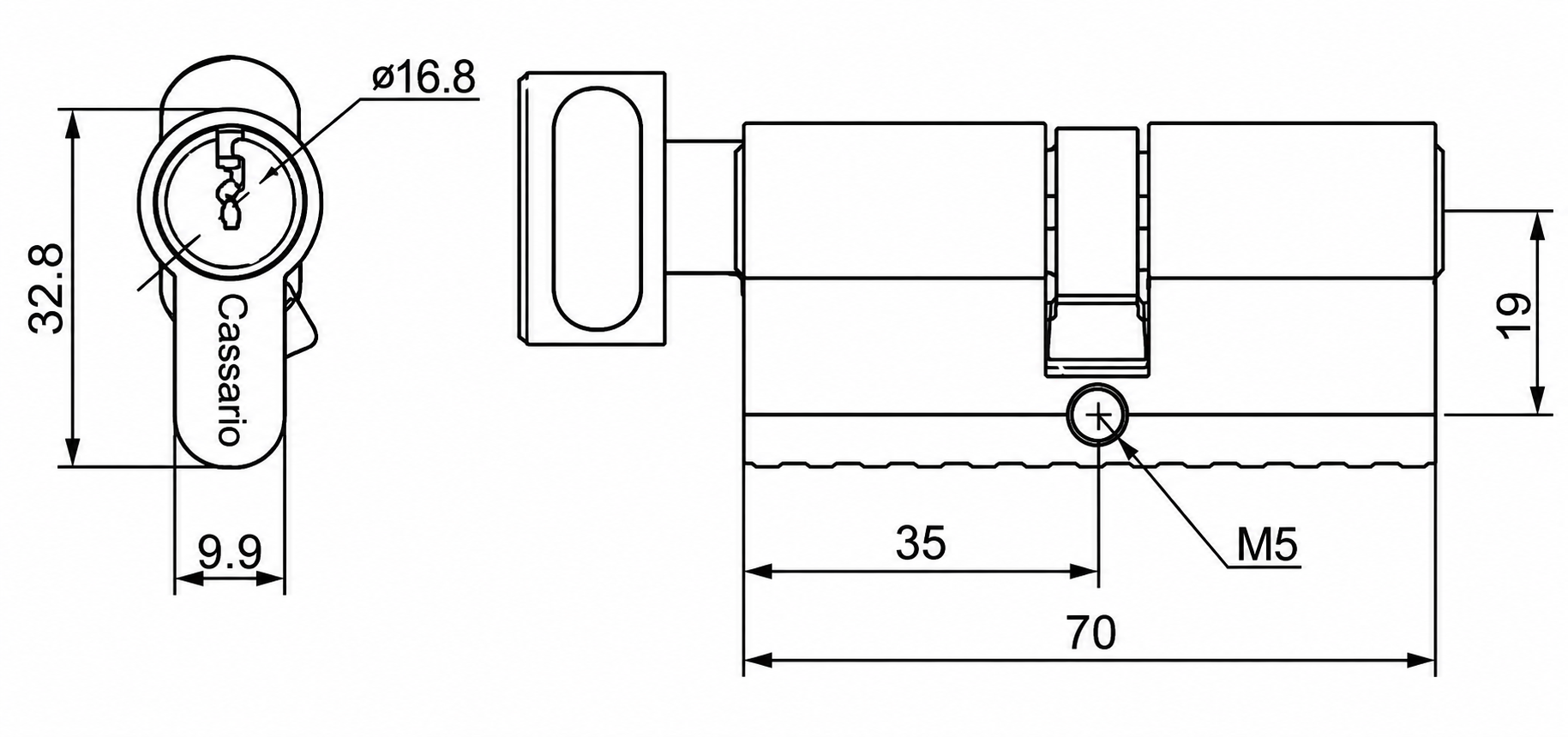

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
