Built-In Basin Mixer Kit 1 A5948NU

SKU: 390100108151

Built-In Basin Mixer Kit 1 A5948NU for concealed wall mounted mixers. High flow 25L/min with water-saving Click technology, perfect for modern UAE bathrooms.

AED 842
AED 842
MRP is inclusive of all taxes
Material
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
Ideal Standard
Model:
A5948NU
Mounting:
Built-in
Flow Rate:
25 L/min at 3 bar
Material:

The Ideal Standard Built-In Basin Mixer Kit 1 A5948NU is a universal concealed installation kit designed to support wall-mounted basin mixers across multiple collections. Built for modern bathrooms, this horizontal installation kit ensures a seamless and clutter-free aesthetic, making it ideal for residential, hospitality, and commercial projects across the Middle East.

Designed with advanced engineering, the kit delivers a high flow rate of 25 L/min at 3 bar, ensuring strong and consistent water performance. It incorporates Click technology, which helps reduce water consumption by up to 50% by regulating flow unless fully activated—making it both efficient and sustainable.

Constructed from durable metal components and approved with WRAS and other certifications, this built-in kit guarantees long-term reliability and compliance with international standards. It is an essential component for concealed basin mixer installations, providing a stable and precise foundation behind the wall.

Features

  • Built-in Kit 1 for basin mixer (concealed installation)
  • Horizontal installation design
  • High flow rate: 25 L/min at 3 bar
  • Click technology for water saving
  • WRAS approved for quality assurance
  • Compatible with multiple Ideal Standard mixer ranges
  • Durable metal construction
  • Compact design for easy wall integration
  • Suitable for residential, hotel & commercial projects
Specifications
Built-In Basin Mixer Kit 1 A5948NU

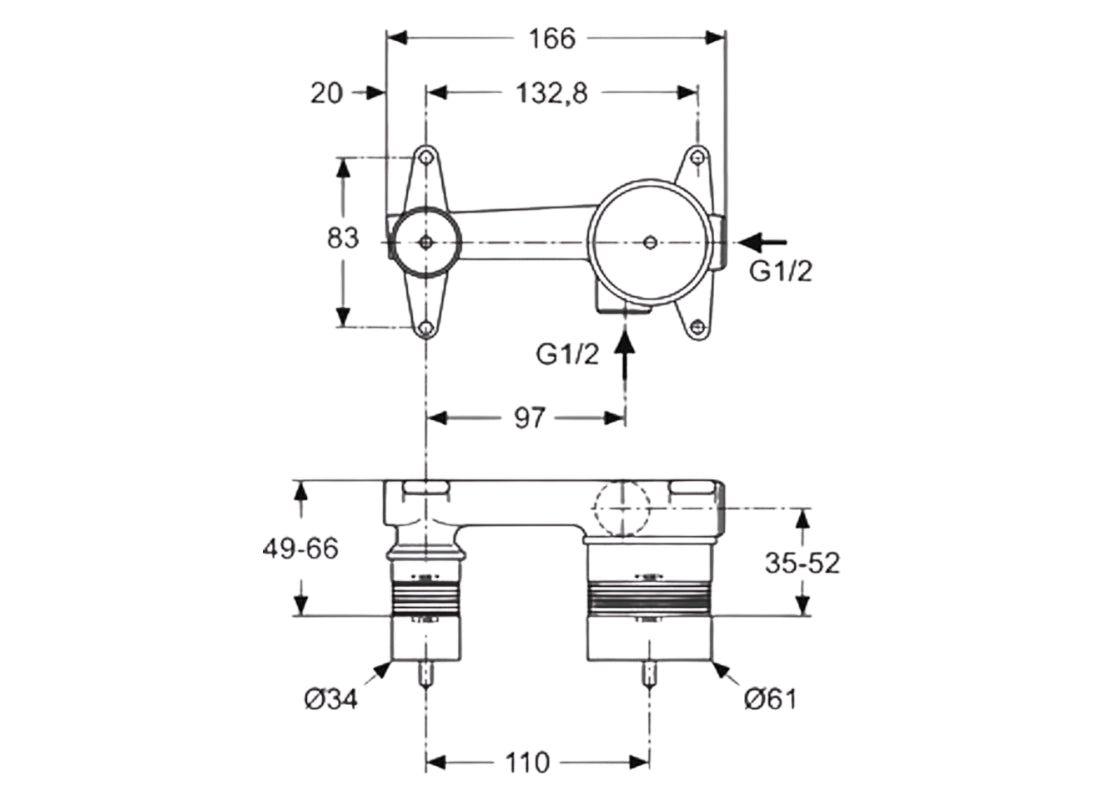

Dimensions
Length:
Projection: 49–66 mm
Width:
166 mm
Capacity & Weight
Weight:
1.11 kg
Technical
Operation Pressure (Bar):
Min Pressure: 0.5 bar & Max Pressure: 10 bar
Downloads
The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
