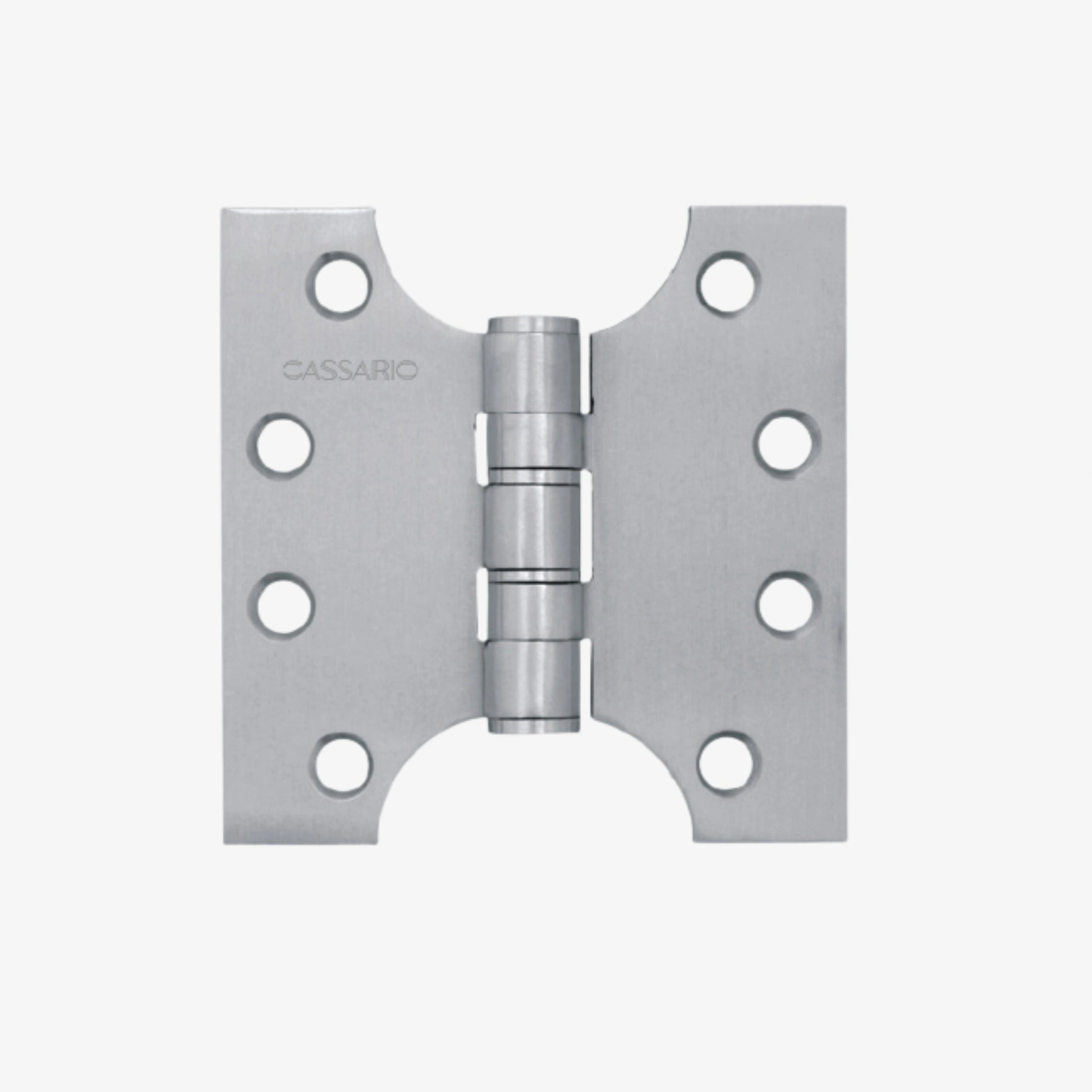

Cassario Parliament Hinge 102x76x3mm

SKU: 391800101019

A parliament hinge earns its place on a spec wherever the opening geometry — not the door itself — is the constraint: deep reveals, return walls, or skirting that would otherwise prevent a door reaching full swing. It carries the same ball bearing performance and fire compliance as Cassario's standard butt hinge range, so substituting it for clearance reasons doesn't cost anything in durability.

AED 60
AED 60
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Butt Hinges
Material:
Solid Brass
Product Type:
Hinges
Product Size:
102x76x3mm
Origin:
China
Colour:

The cut-away leaf profile is what sets a parliament hinge apart — by recessing the knuckle away from the leaf edge, the door swings clear of deep architraves, thick skirtings, or projecting wall fixtures, allowing a full 180° opening that a standard butt hinge can't achieve in the same opening. Built on a two ball bearing mechanism at 102x76x3mm, it carries the same smooth, quiet operation expected on high-traffic doors.



Core Features

  • Cut-away leaf profile for wide-throw, 180° opening clearance
  • Two ball bearing, five knuckle mechanism
  • 102x76x3mm size
  • CE marked, compliant with European safety regulations
  • Confirmed fire-resistance capability, suited to fire and smoke-resistant doors
  • Rated for loads up to 120kg
  • Endurance-tested beyond 200,000 operating cycles
  • Square or radius corner options
  • Softened edge detailing
  • Pre-cut intumescent hinge pads available
  • Supplied with stainless steel screws; metal door screws available on request
Specifications
Cassario Parliament Hinge 102x76x3mm
Technical
Weight Capacity:
120 Kg
Mounting Type:
Mounted By screws
Corrosion & Fire Rating:
Yes
Door Thickness Compatibility:
45-55mm
Package Contents:
Hinges(1 pair) Screws (8 pcs)
Downloads

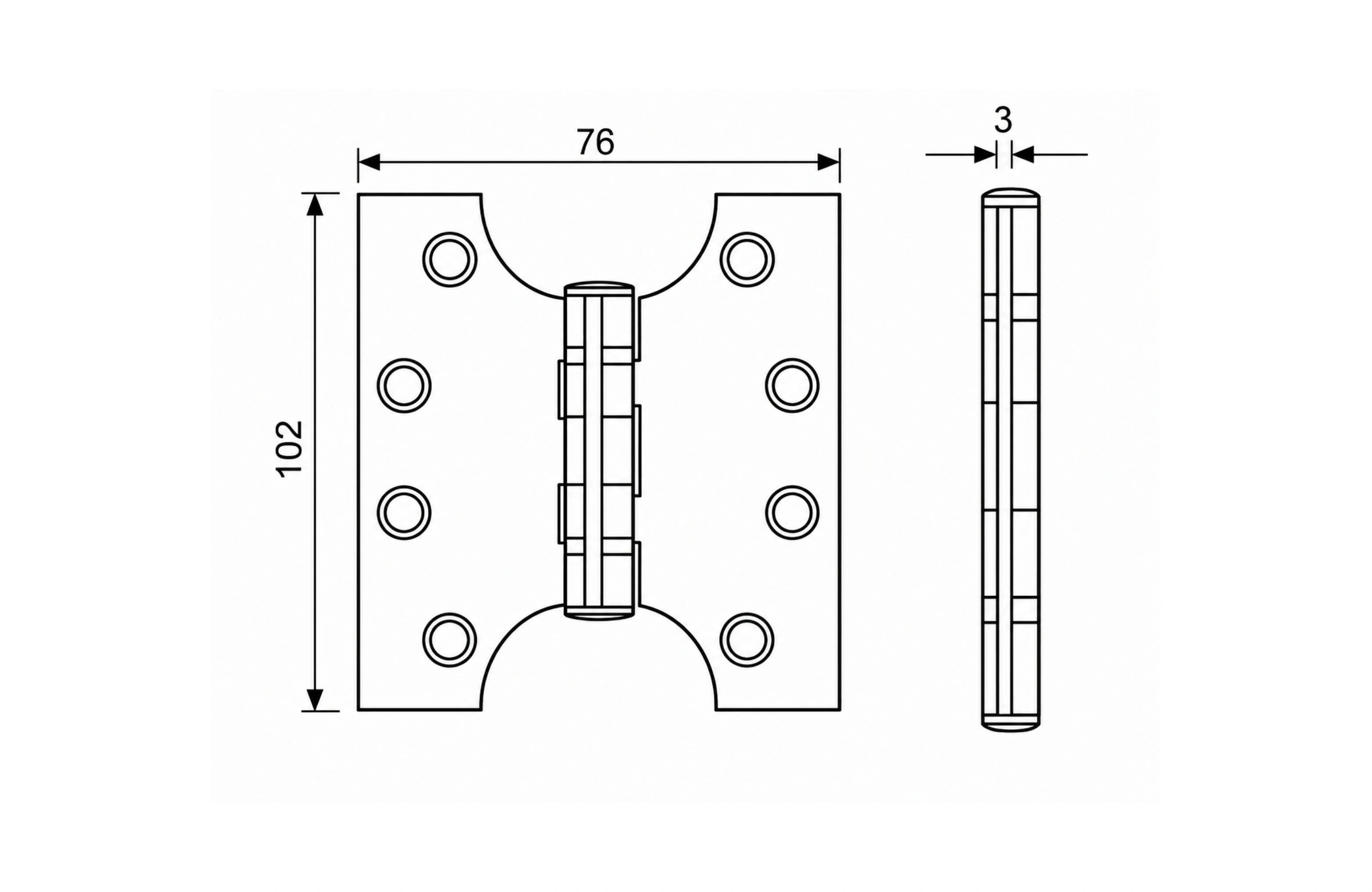

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
