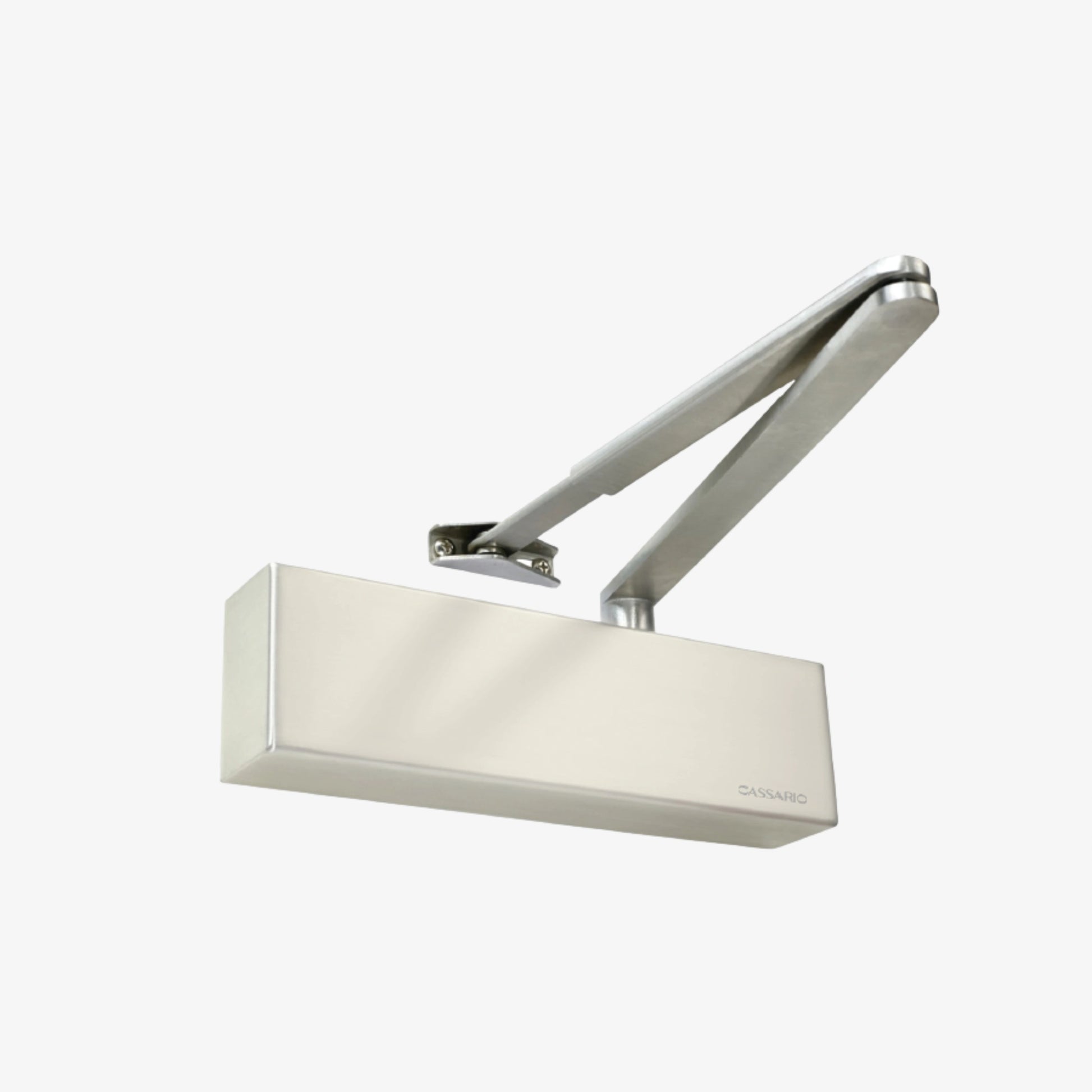

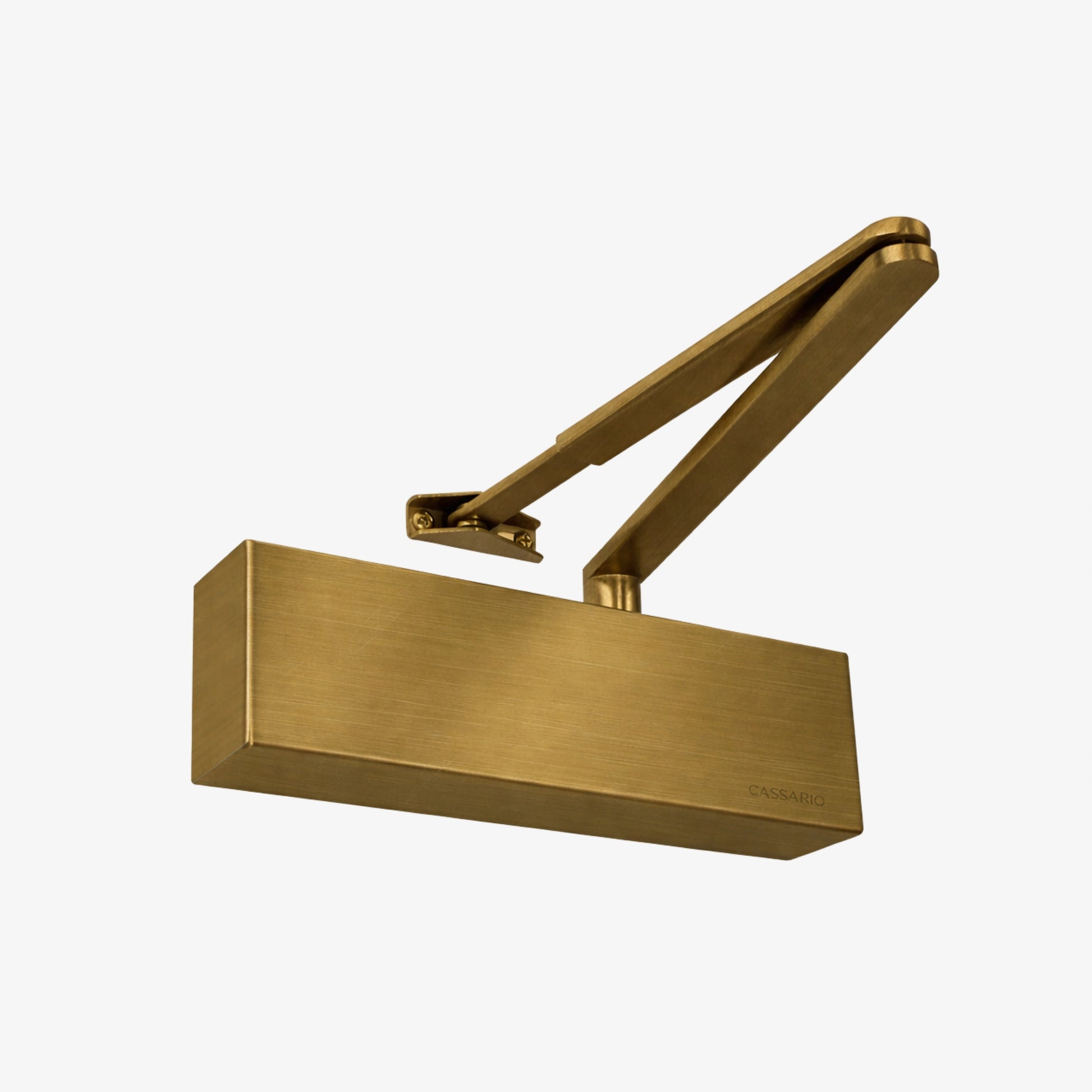

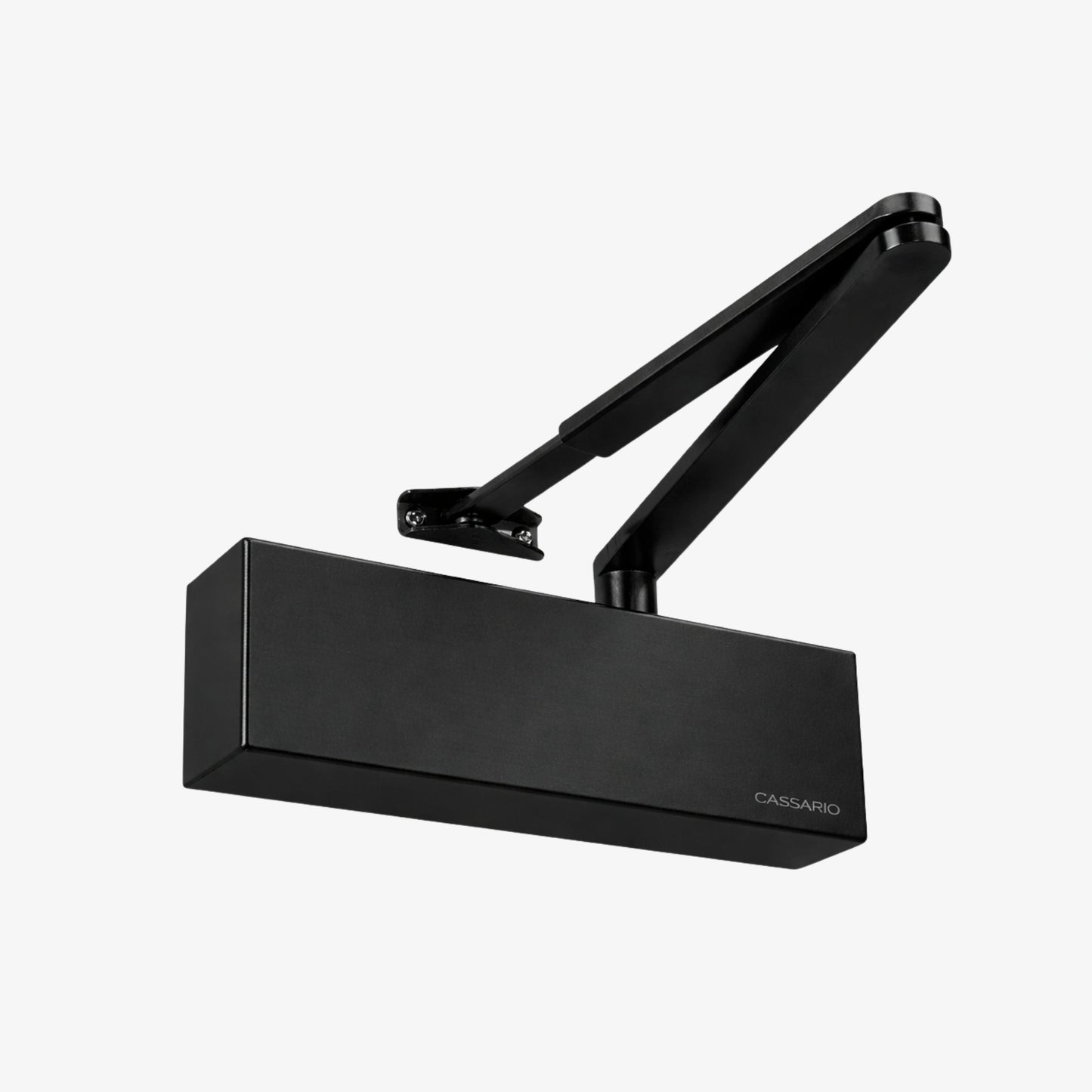

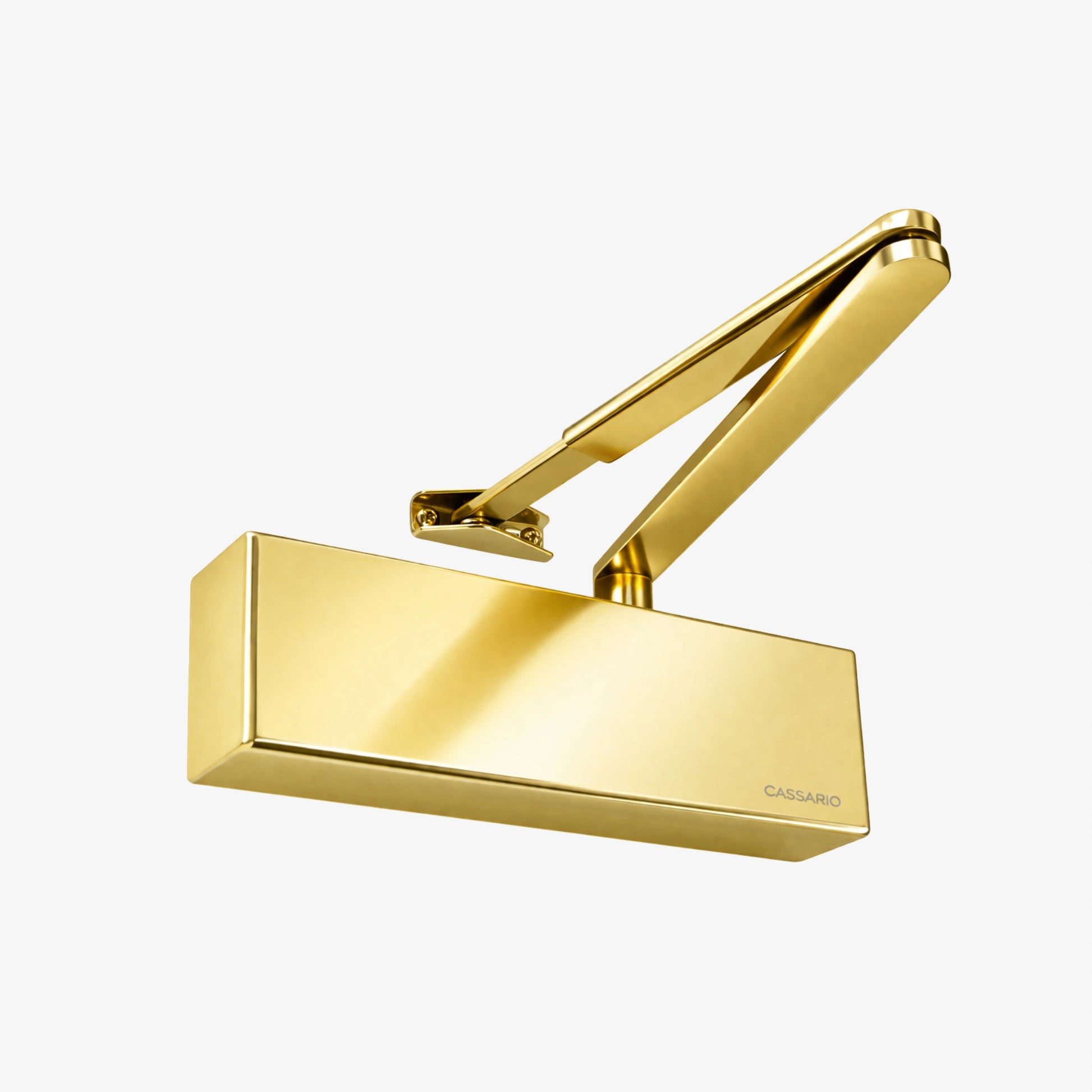

Surface Mount Overhead Door Closer (DC25) With Full Cover

SKU: 391800100650


The Cassario DC25 is a European-engineered surface-mounted overhead door closer with full cover, designed for high-performance door control with a refined architectural finish. Manufactured in Italy, it combines heavy-duty functionality with clean, integrated aesthetics.

AED 205
AED 205
MRP is inclusive of all taxes
Color: Satin Stainless Steel
Chat Now My Projects
Note :
* All images shown are for illustration purpose only. Actual product may vary.
* Minor differences in fabric colour, tile shade, wood grain, or finish may occur due to screen settings, lighting, manufacturing variation, or batch differences.
* Product colour may vary slightly due to photographic lighting or your display settings.
* Reasonable dimensional tolerances apply; slight measurement variances are acceptable and industry‑standard. View Product details
Chat Now My Projects
Summary
Brand:
CASSARIO
Collection:
Door Closer
Product Type:
Door Closers
Model:
DC25
Origin:
Italy
Colour:

Engineered for demanding door applications, the Cassario DC25 offers adjustable power from EN 2 to EN 5, supporting wider and heavier doors with precision-controlled closing performance. The full cover design conceals the mechanism, delivering a more seamless and premium appearance within architectural environments.

Tested to BS EN 1154 standards and suitable for fire-rated doors, the DC25 supports door weights up to 110 kg with adjustable closing and latching speeds for consistent operation. Its non-handed configuration ensures flexibility across various door types, making it suitable for both commercial and residential projects.



Core Features

  • Surface-mounted overhead door closer with full cover for clean, integrated architectural appearance
  • Adjustable power size EN 2–5 for door widths 850mm–1250mm
  • Suitable for door weights from 45 kg up to 110 kg
  • Rack and pinion mechanism for durable and controlled operation
  • Adjustable closing speed and latching action for precise performance tuning
  • Tested to BS EN 1154 and CE marked for compliance and reliability
  • Suitable for fire-rated door applications
  • Non-handed (universal) design for left and right door installation
  • Opening angle up to 180° for flexible application
  • Screw-mounted installation with optional hold-open arm and parallel arm bracket
Specifications
Surface Mount Overhead Door Closer (DC25) With Full Cover
Size:
EN 2 to 5
Technical
Fire Rating:
90 minutes
Weight Capacity:
110 kg
Mounting Type:
Mounted by Screws
Cycle Test/Grade:
BS EN 1154
Corrosion & Fire Rating:
Yes
Installation Details
Package Contents:
Closer Machine (1 Nos) Arm Track (1 Nos) Screw (1 Set)
Door Width Compatibility:
40mm-70mm
Downloads

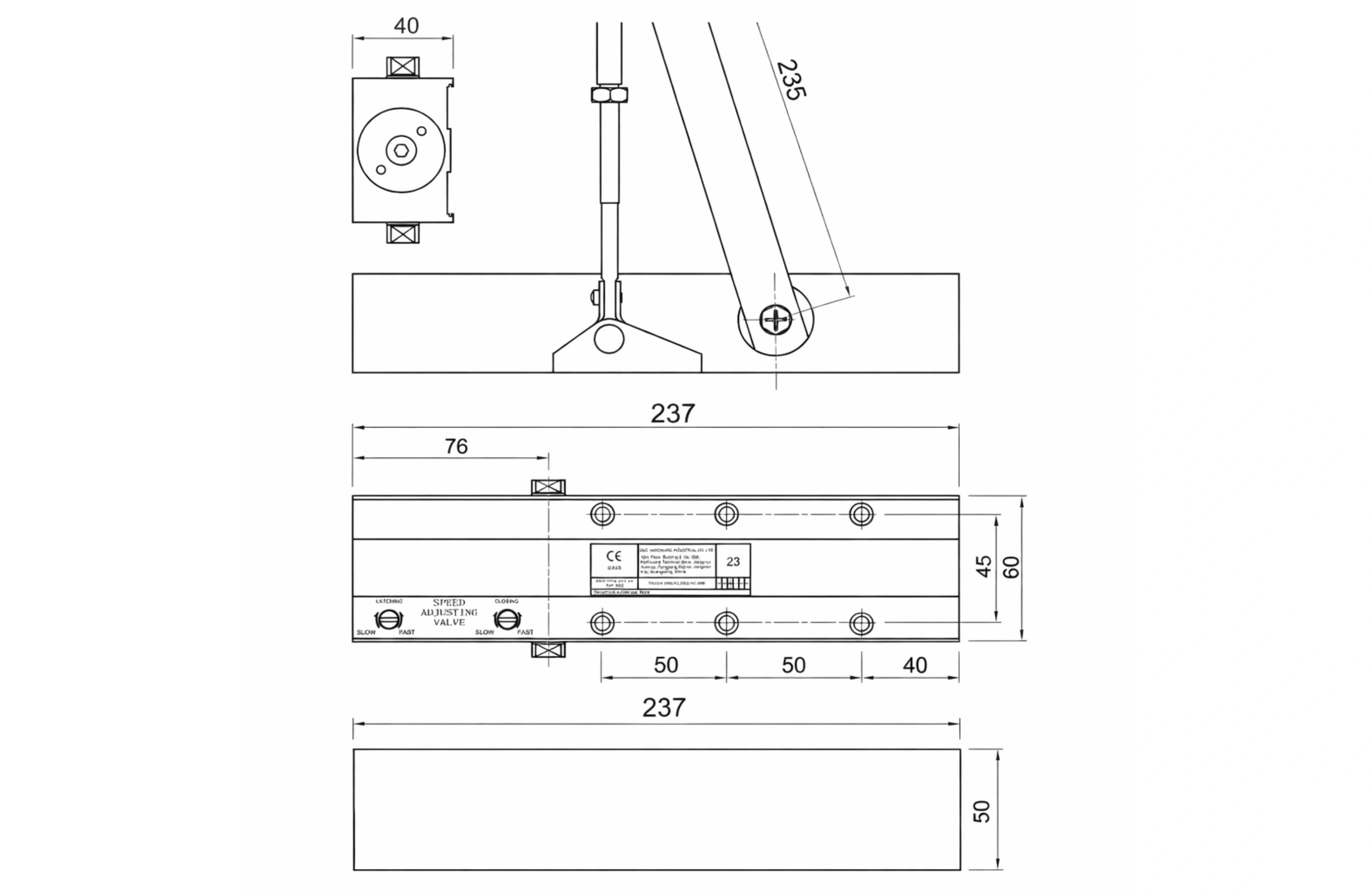

The 2D and 3D files(3ds Max software) available are to be used exclusively for planning and must not be used to gauge precise measures for incisions or interlocking. The drawings indicate the sizes required (in mm) in compliance with standard tolerances. For exact sizes, we recommend measuring the finished product.
Specifications
Technical Data Sheet
